Attributes
| Alemite Series | fittings |
|---|
Description
To improve reliability of the check valve in these fittings, keep input passages free of foreign particles. Redundancy of seal should be provided in critical applications where back pressure must be maintained.
Variations (5)

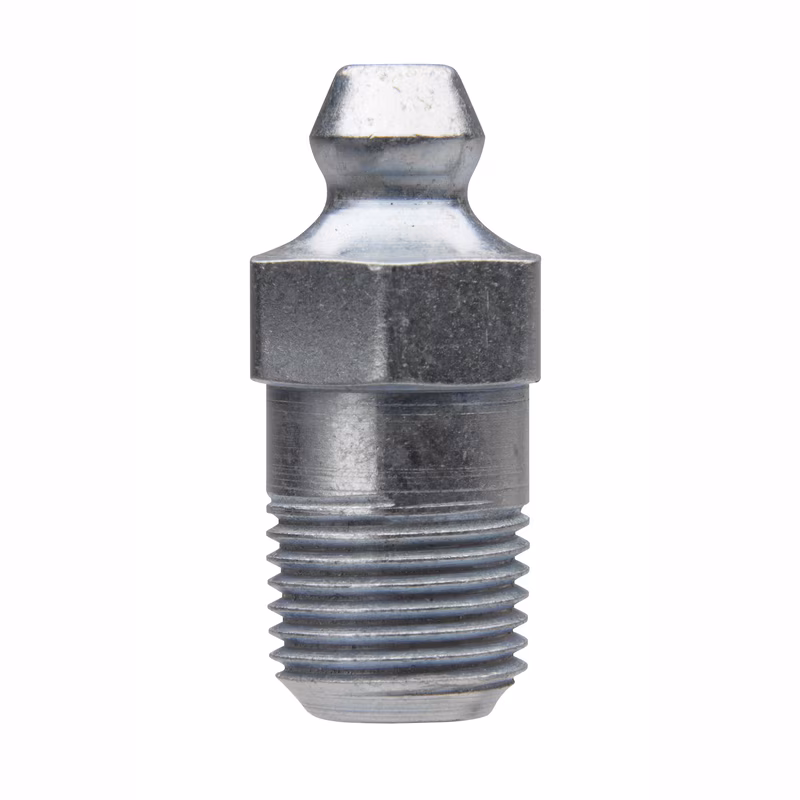

1650
| Type | Straight |
|---|---|
| Thread | 1/8" PTF SAE Short |
| Hex Size | 7/16" |
| Overall Length | 29/32" |
| Shank Length | 25/64" |
| Check valve | Fluoroelastomerer Ball |
| Max. Back Pressure | 3,000 psi |
1692
| Type | 30° |
|---|---|
| Thread | 1/8" NPTF |
| Hex Size | 7/16" |
| Overall Length | 1-7/32" |
| Shank Length | 25/64" |
| Check valve | Buna-N disk |
| Max. Back Pressure | 3,000 psi |
1693
| Type | 90° |
|---|---|
| Thread | 1/8" NPTF |
| Hex Size | 7/16" |
| Overall Length | 31/32" |
| Shank Length | 25/64" |
| Check valve | Buna-N disk |
| Max. Back Pressure | 3,000 psi |

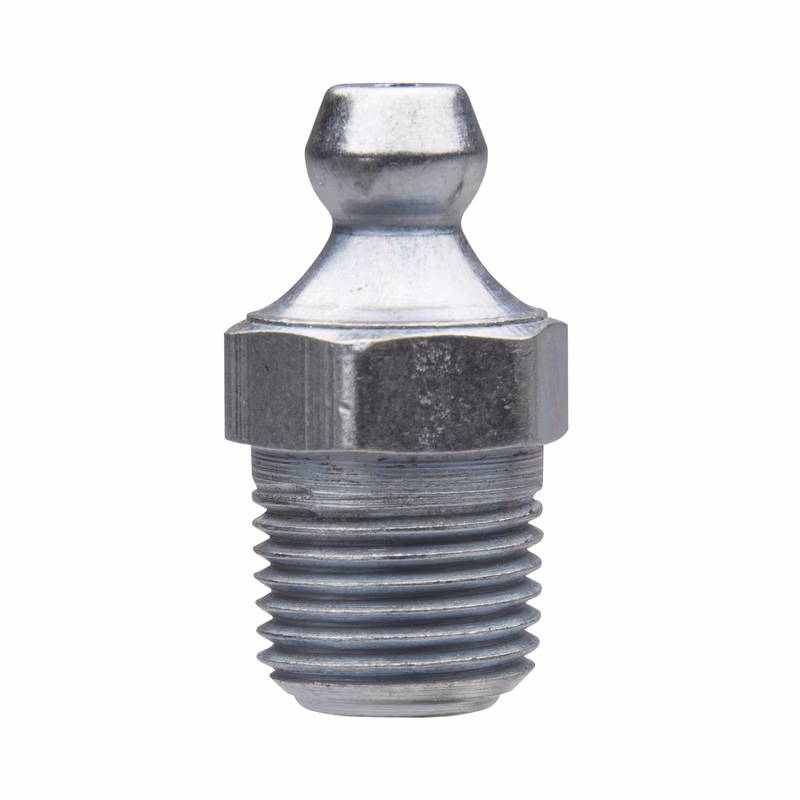

1634
| Type | Straight |
|---|---|
| Thread | 1/8" PTF SAE Short |
| Hex Size | 7/16" |
| Overall Length | 27/32" |
| Shank Length | 23/64" |
| Check valve | Steel Ball/Brass Seat |
| Max. Back Pressure | 10,000 psi |
1634-B
| Type | Straight |
|---|---|
| Thread | 1/8" PTF SAE Short |
| Hex Size | 7/16" |
| Overall Length | 1" |
| Shank Length | 33/64" |
| Check valve | Steel Ball/Brass Seat plus dirt excluding surface ball check |
| Max. Back Pressure | 10,000 psi |
Specifications
| RECOMMENDED ACCESSORY | Dust Caps |
|---|
