Attributes
| Alemite Series | fittings |
|---|
Description

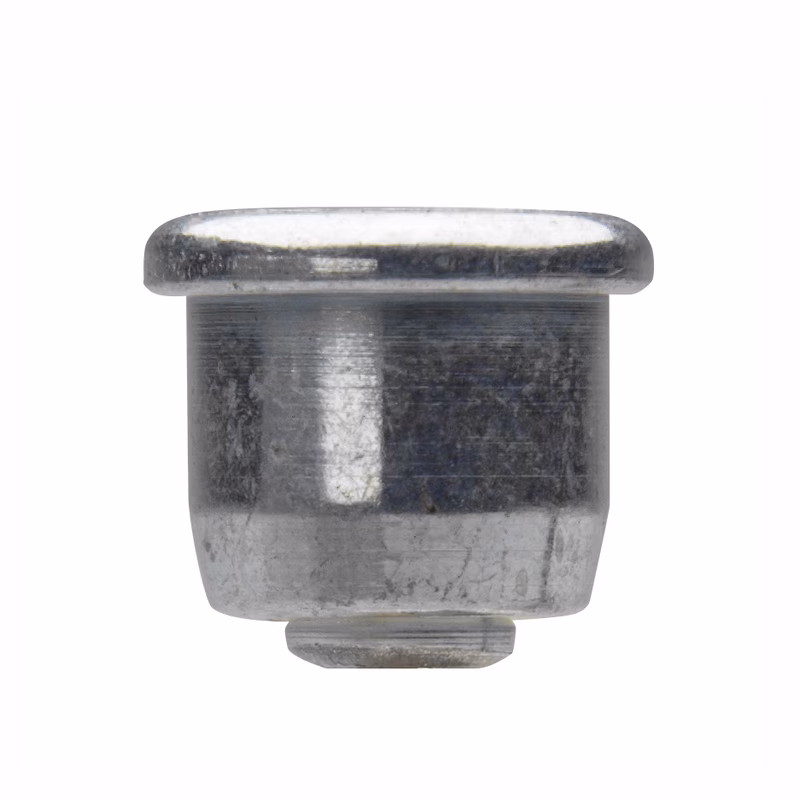

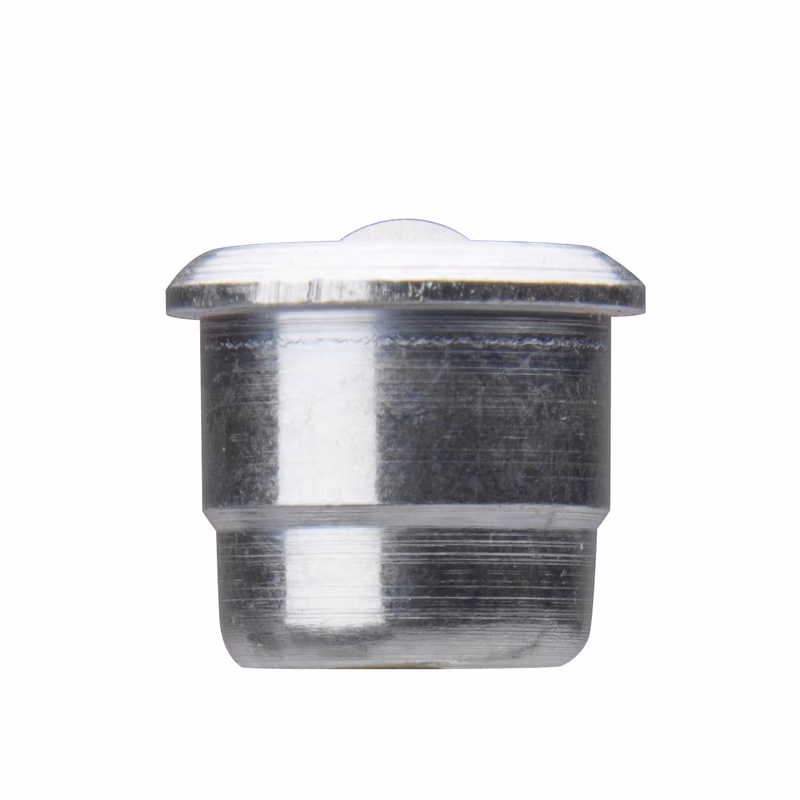

Alemite Flush Type Fittings are used where protruding fittings are not desirable, such as for line shafting pulleys or revolving bearings.
Variations (3)
3036
| Thread | Drive |
|---|---|
| Type | Straight |
| Overall Length | 3/8" |
| Shank Length | 5/16" |
| Drill Diameter | 3/16" |
1885
| Thread | Drive |
|---|---|
| Type | Straight |
| Overall Length | 9/32" |
| Shank Length | 15/64" |
| Drill Diameter | 1/4" |
1814
| Thread | Drive |
|---|---|
| Type | Straight |
| Overall Length | 21/64" |
| Shank Length | 9/32" |
| Drill Diameter | 5/16" |
Specifications
| Features | Exceeds 72 hour salt spray test; Dirt excluding check ball; Trivalent zinc plating; RoHS compliant; Flush mounting reduces potential for damage |
|---|
