| Alemite Series | fittings |
|---|
Description

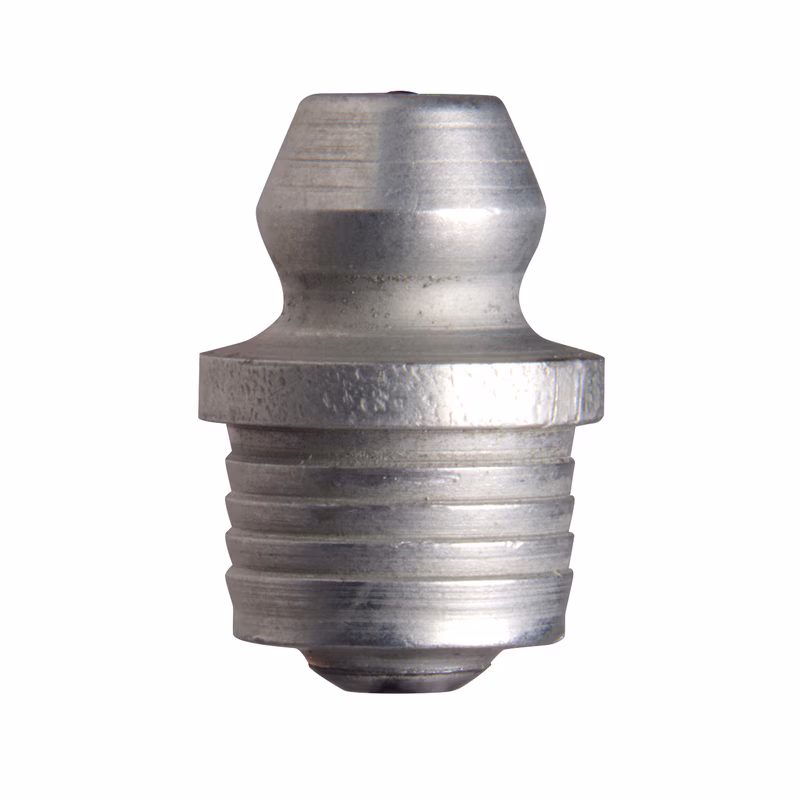

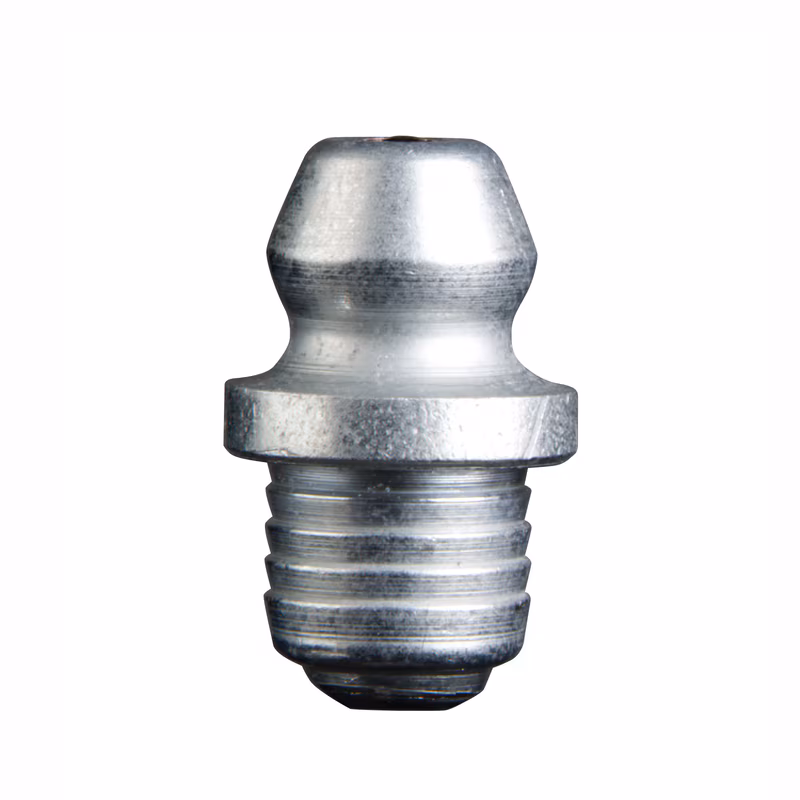

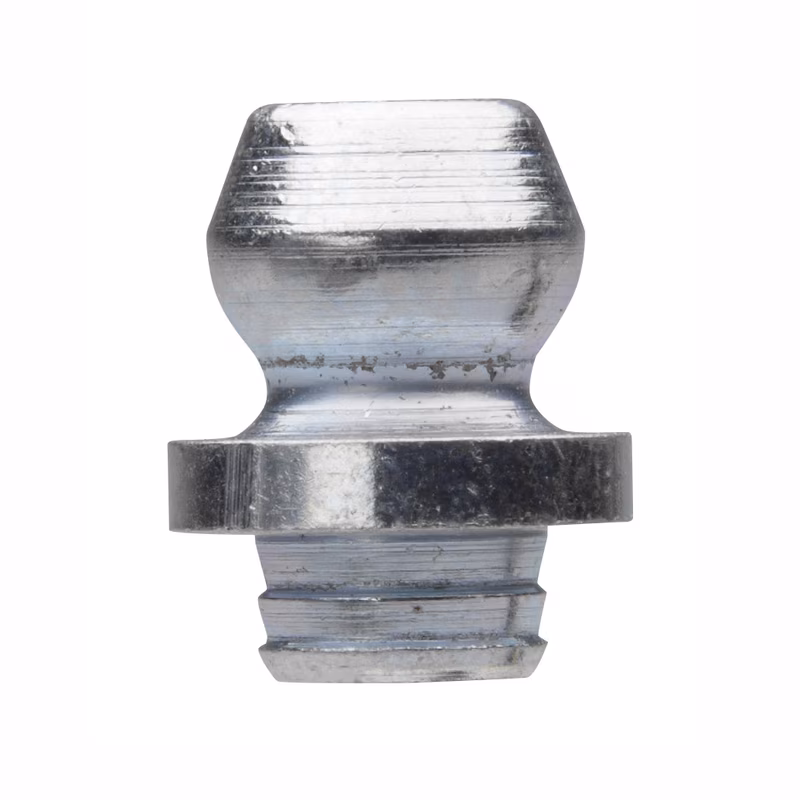

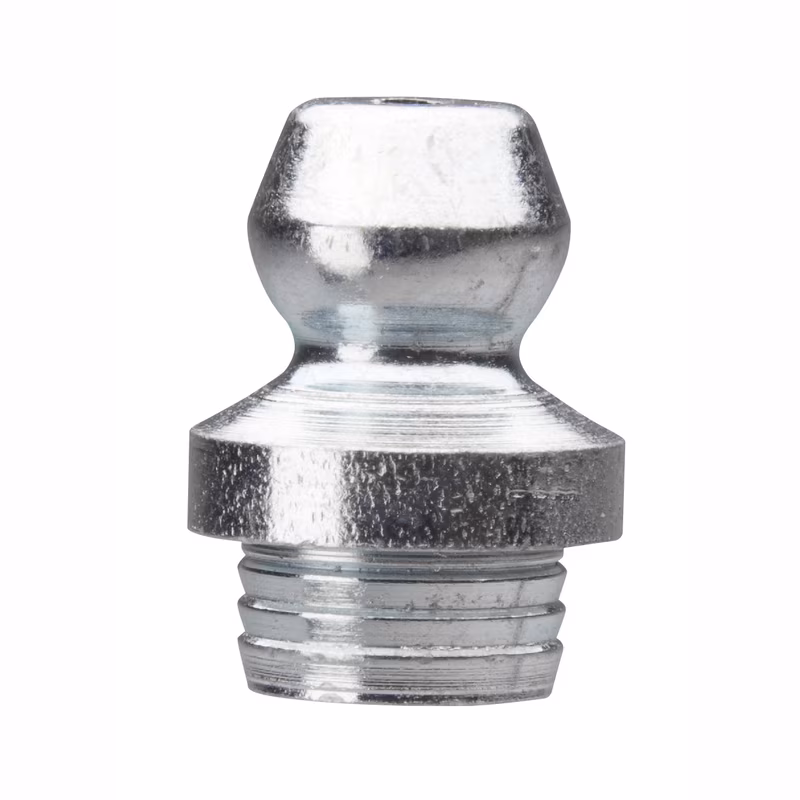

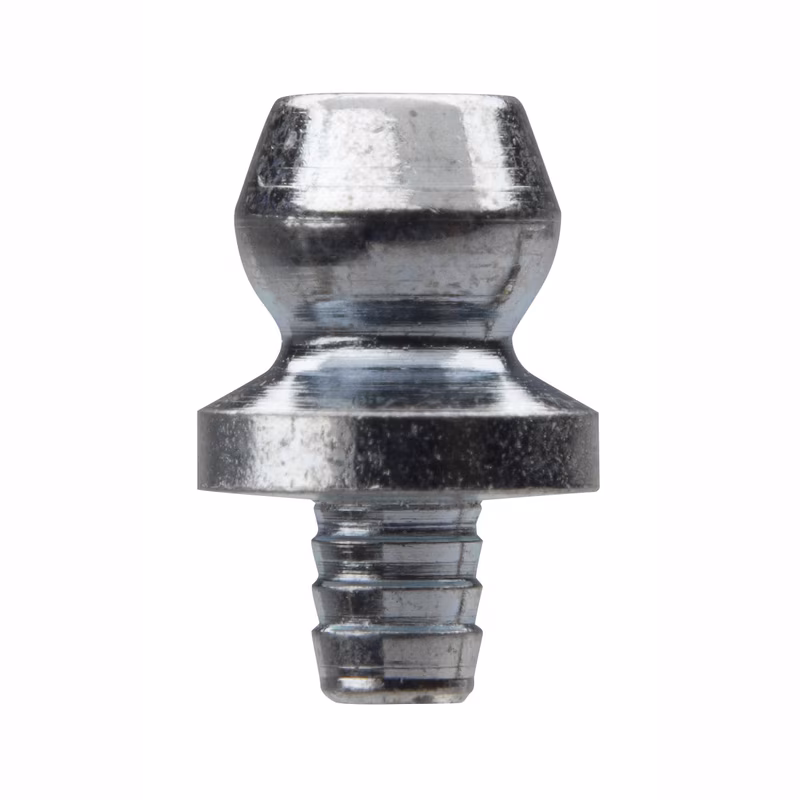

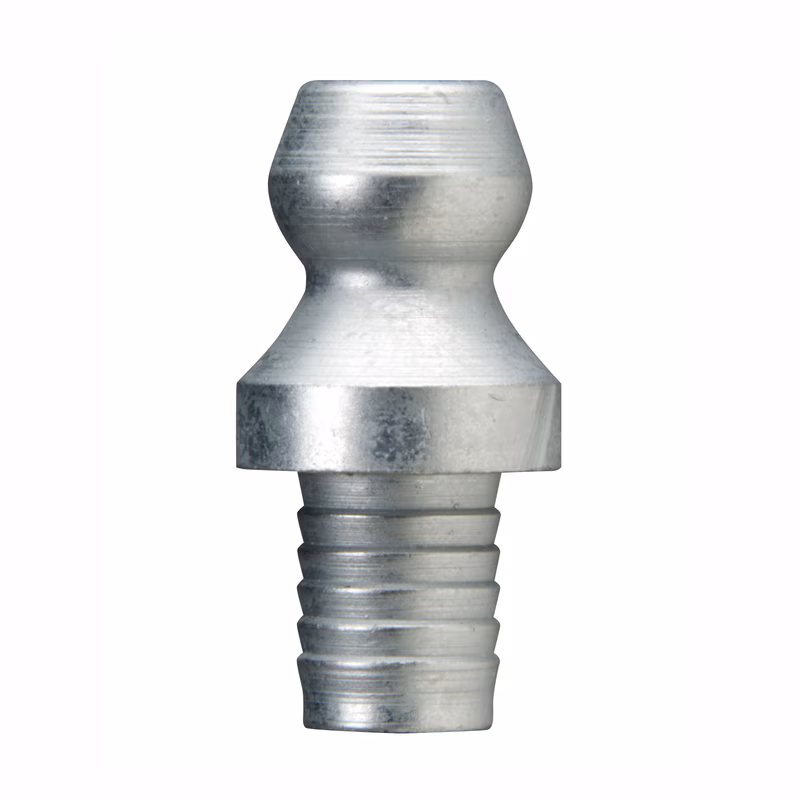

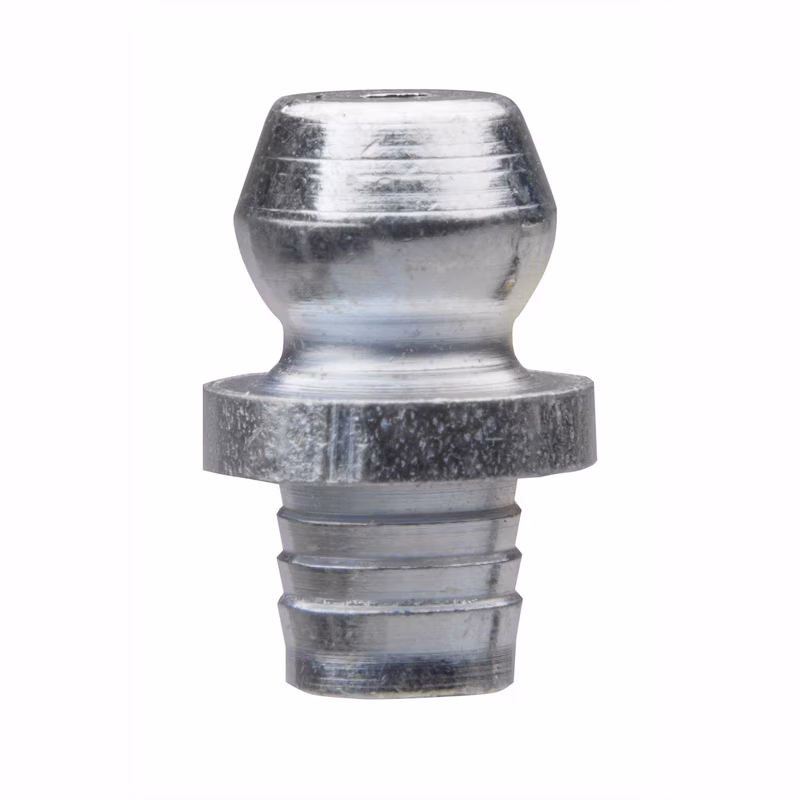

Alemite Drive Fittings provide a simple, cost effective alternative to tapping for various applications.
Variations (17)
1736-A
| Type | Straight |
|---|---|
| Overall Length | 9/16" ( 14.28 mm ) |
| Shank Length | 1/4" |
| Drill Diameter | 1/8" |
| Ball Check | No |
| Group | Specifications 1) |
3019
| Type | Straight |
|---|---|
| Overall Length | 15/32" (11.91 mm) |
| Shank Length | 5/32" |
| Drill Diameter | 1/8" |
| Ball Check | No |
| Group | Specifications 1) |
3009
| Type | Straight |
|---|---|
| Overall Length | 25/64" (9.92 mm) |
| Shank Length | 3/32" |
| Drill Diameter | 3/16" |
| Ball Check | No |
| Group | Specifications 1) |
3005
| Type | Straight |
|---|---|
| Overall Length | 15/32" |
| Shank Length | 11/64" |
| Drill Diameter | 3/16" |
| Ball Check | No |
| Group | Specifications 1) |
3006
| Type | Straight |
|---|---|
| Overall Length | 31/64" |
| Shank Length | 7/32" |
| Drill Diameter | 3/16" |
| Ball Check | No |
| Group | Specifications 1) |
1728-B
| Type | Straight |
|---|---|
| Overall Length | 33/64" (13.09 mm) |
| Shank Length | 1/4" |
| Drill Diameter | 3/16" |
| Ball Check | Yes |
| Group | Specifications 1) |
1633
| Type | Straight |
|---|---|
| Overall Length | 5/8" |
| Shank Length | 1/4" |
| Drill Diameter | 3/16" |
| Ball Check | No |
| Group | Specifications 1) |
1743-B
| Type | Straight |
|---|---|
| Overall Length | 35/64" |
| Shank Length | 1/4" |
| Drill Diameter | 1/4" |
| Ball Check | Yes |
| Group | Specifications 1) |
1952-A
| Type | Straight |
|---|---|
| Overall Length | 15/32" |
| Shank Length | 1/8" |
| Drill Diameter | 1/4" |
| Ball Check | No |
| Group | Specifications 1) |
1608-B
| Type | Straight |
|---|---|
| Overall Length | 35/64" (13.89 mm) |
| Shank Length | 1/4" |
| Drill Diameter | 5/16" |
| Ball Check | Yes |
| Group | Specifications 1) |
1666
| Type | Straight |
|---|---|
| Overall Length | 37/64" |
| Shank Length | 7/32" |
| Drill Diameter | 3/8" |
| Ball Check | No |
| Group | Specifications 1) |
369591
| Type | Straight |
|---|---|
| Overall Length | 21/50" |
| Shank Length | - |
| Drill Diameter | 3/46" |
| Ball Check | No |
| Group | Specifications 1) |
369604
| Type | Straight Flush |
|---|---|
| Overall Length | 11/32" (8.73 mm) |
| Shank Length | 21/64" |
| Drill Diameter | 1/4" |
| Ball Check | Yes |
| Group | Specifications 1) |
369577
| Type | Straight |
|---|---|
| Overall Length | 35/64" (13.89 mm) |
| Shank Length | 1/4" |
| Drill Diameter | 1/4" |
| Ball Check | Yes |
| Group | Specifications 1) |
5253
| Type of Drive Fitting | Straight |
|---|---|
| Use with Fitting | 1633, 1666, 1720-B, 1736-A, 1952-A, 3005, 3009, 3019, 369591, 369604, 369577 |
| Group | Drive Fitting Tools-Straight |
5253-1
| Type of Drive Fitting | Straight |
|---|---|
| Use with Fitting | 1608-B, 1743-B, 3038-B |
| Group | Drive Fitting Tools-Straight |
5253-3
| Type of Drive Fitting | Straight |
|---|---|
| Use with Fitting | 1728-B |
| Group | Drive Fitting Tools-Straight |
Specifications
| Features | Exceeds 72 hour salt spray test; Used for untapped holes; Serrated shank provides secure, lasting grip; Simplifies replacement of damaged fittings in old or oversized holes; Trivalent zinc plating; RoHS compliant |
|---|---|
| Types | Straight; Straight Flush |
