Attributes
| Alemite Series | fittings |
|---|
Description
Alemite Drive Fittings provide a simple, cost effective alternative to tapping for various applications.
Variations (5)

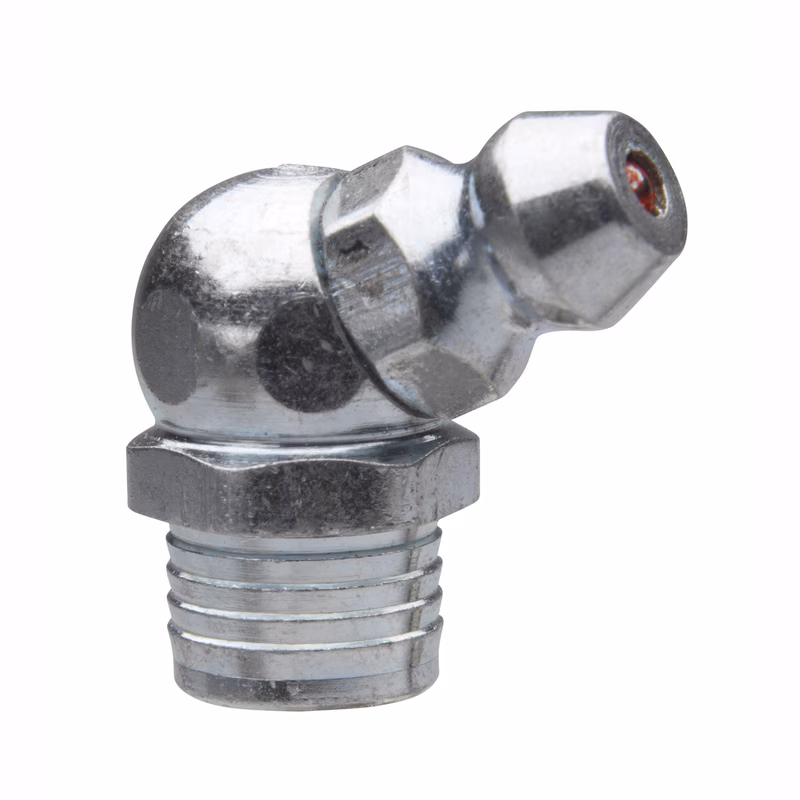

1992-B1
| Type | 45° |
|---|---|
| Overall Length | 53/64" |
| Shank Length | 7/32" |
| Drill Diameter | 3/16" |
| Ball Check | Yes |

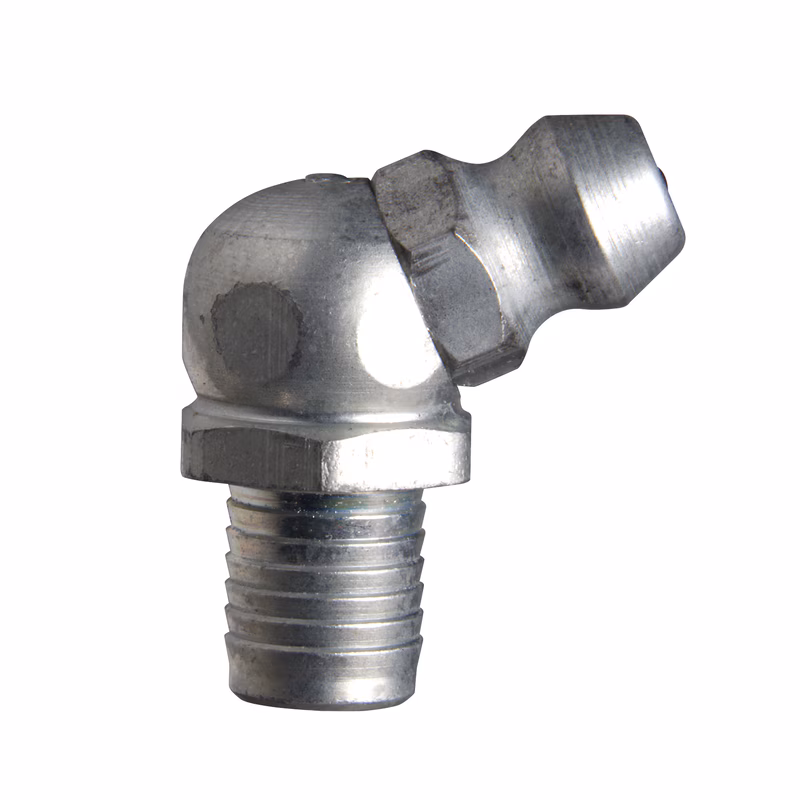

1646-B1
| Type | 65° |
|---|---|
| Overall Length | 45/64" |
| Shank Length | 7/32" |
| Drill Diameter | 3/16" |
| Ball Check | Yes |

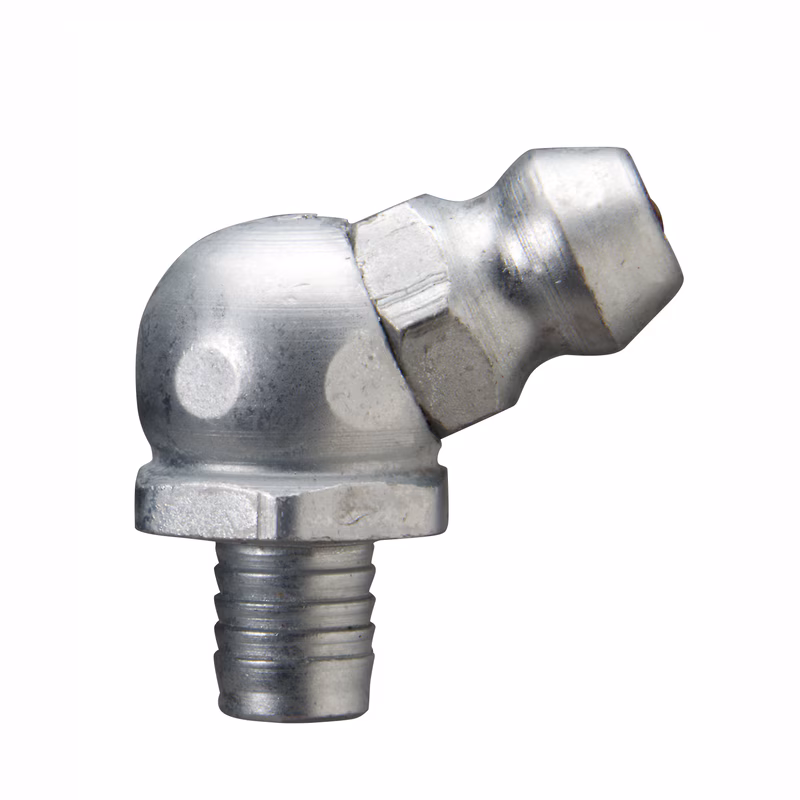

1744-B1
| Type | 65° |
|---|---|
| Overall Length | 49/64" |
| Shank Length | 9/32" |
| Drill Diameter | 1/4" |
| Ball Check | Yes |
1630-B1
| Type | 65° |
|---|---|
| Overall Length | 45/64" |
| Shank Length | 7/32" |
| Drill Diameter | 5/16" |
| Ball Check | Yes |
5254-1
| Type of Drive Fitting | Angled |
|---|---|
| Use with Fitting | 1630-B1, 1646-B1, 1744-B1, 1992-B1, 1722-B, 1723-B, 1724-B |
| Group | Drive Fitting Tools-Angled |
Specifications
| Features | Exceeds 72 hour salt spray test; Used for untapped holes; Serrated shank provides secure, lasting grip; Simplifies replacement of damaged fittings in old or oversized holes; Trivalent zinc plating; RoHS compliant |
|---|---|
| Types | 45°; 65° |
