Attributes
| Alemite Series | fittings |
|---|
Description

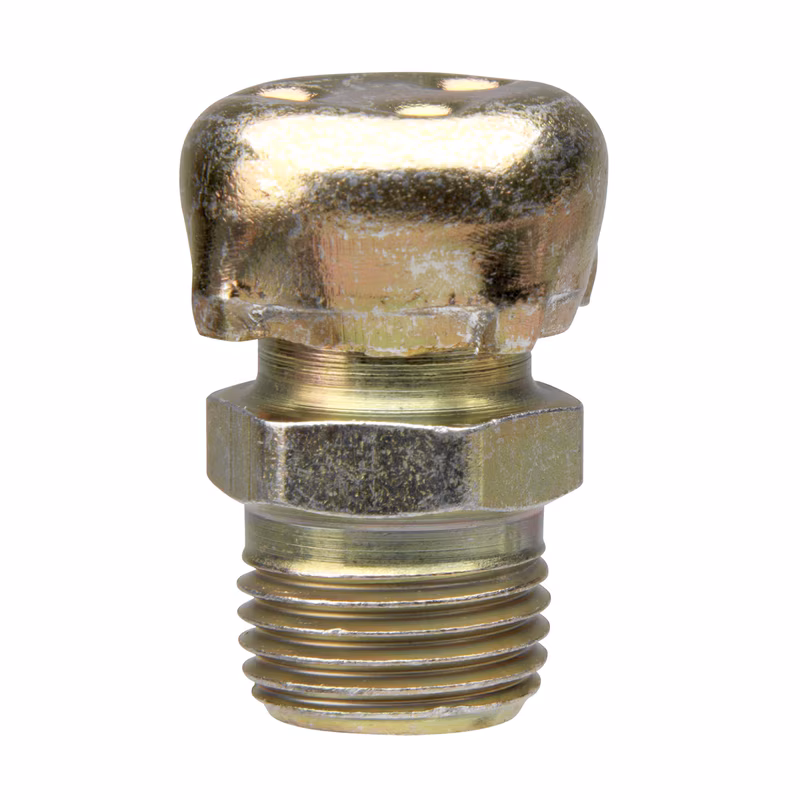

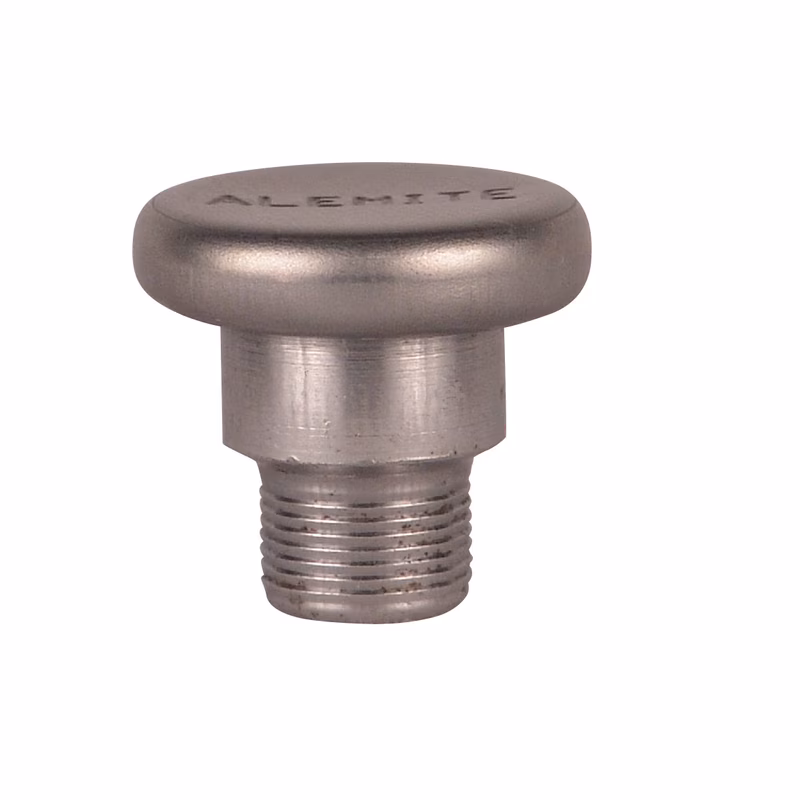

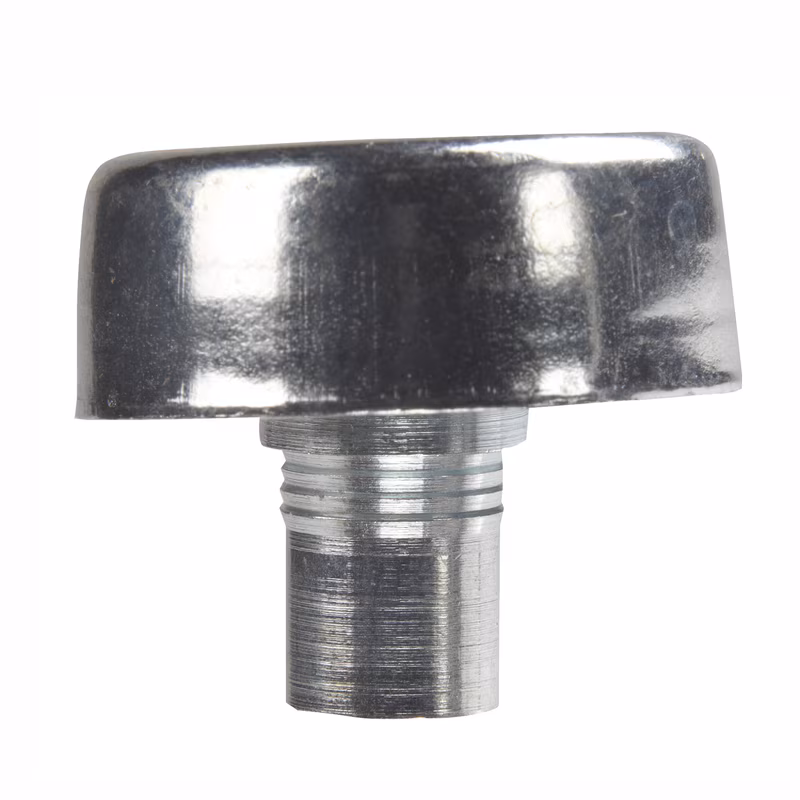

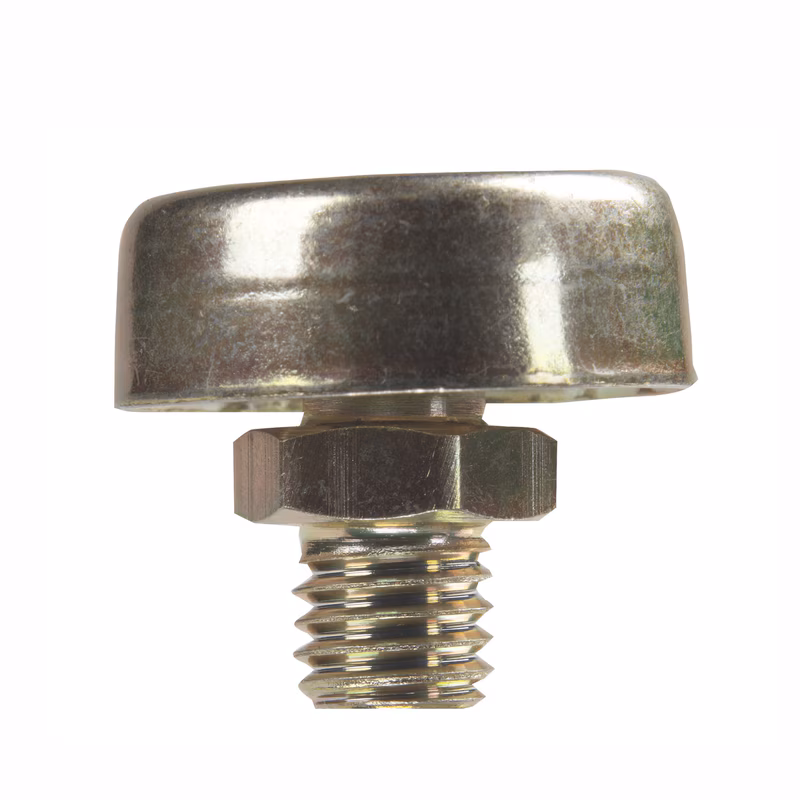

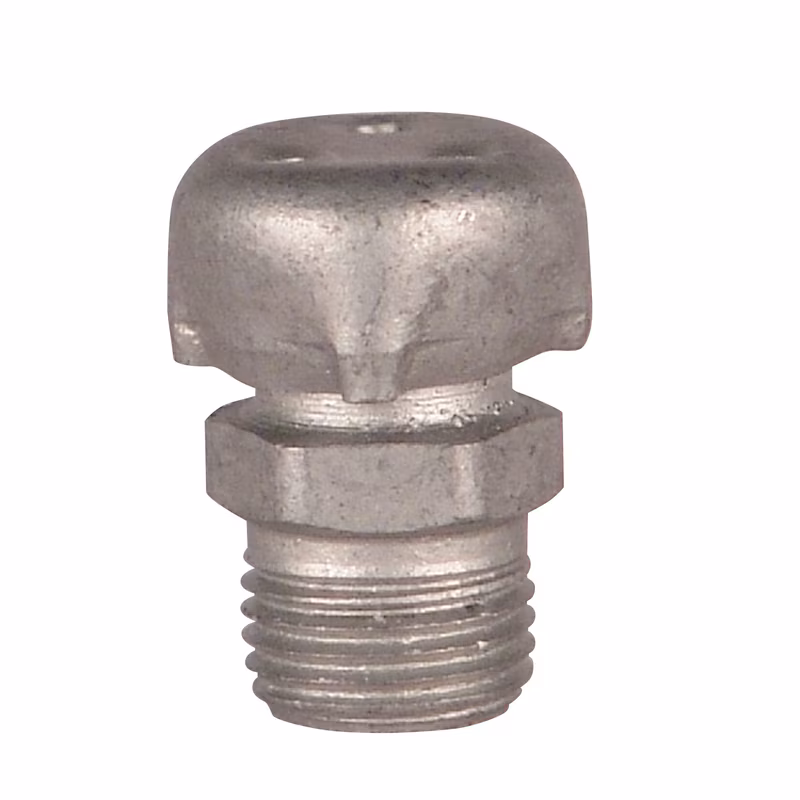

Alemite Breathers are used with transmissions, differentials, speed reducers, axles, gear housings and similar applications. The breather helps maintain proper pressure.
Variations (6)
313650
| Description | Two Baffles |
|---|---|
| Thread | 3/8" PTF SAE Short |
369583
| Description | Corrosion Resistant 240 hour salt spray test |
|---|---|
| Thread | 1/8” PTF SAE Short |
369528
| Description | Press Fit, Two Baffles |
|---|---|
| Thread | Goes into .497/.5032 DIA hole |
321620
| Description | Zinc Trivalent |
|---|---|
| Thread | 1/8" PTF SAE SPL Short |
369518
| Description | Double Vent |
|---|---|
| Thread | Drive 0.374±0.000-0.003 hole Use 0.36" drill or U |
369568
| Description | M 10 x 1.5 |
|---|---|
| Thread | M10 x 1.5 |
Specifications
| Features | Exceeds 72 hour salt spray test; Trivalent zinc plating; No airflow restrictions; Breathers with felt filters help reduce dirt contamination |
|---|
PDF Documents
No PDF documents.
