Steel Aerospace Fittings

Scraped SKU: skf-steel-fittings 2026-06-13 07:52:24

Attributes

Alemite Seriesfittings

Description

Alemite Aerospace (AS) Fittings are designed specifically to meet requirements for performance and consistency which are imperative in aircraft and other critical use applications. Alemite AS Fittings meet the stringent requirements of SAE AS 35411, which include performance tests, extensive documentation and complete traceability of materials. The AS 35411 specification supersedes previous Military Specification MIL-F-3541. Look for the Alemite “AS Fitting Notch” on the neck of the fitting.

Variations (21)

AS15001-1P

Alemite Part #1641-AS
Supersedes MS #MS-15001-1
NSN #4730000504203
TypeStraight
Thread1/4"-28 Taper (SAE-LT)
GroupSteel Fittings, Zinc Finish

AS15001-2P

Alemite Part #1680-AS
Supersedes MS #MS-15001-2
NSN #4730001720001
TypeStraight, 0.97" long
Thread1/4"-28 Taper (SAE-LT)
GroupSteel Fittings, Zinc Finish

AS15001-3P

Alemite Part #1637-AS
Supersedes MS #MS-15001-3
NSN #4730000504205

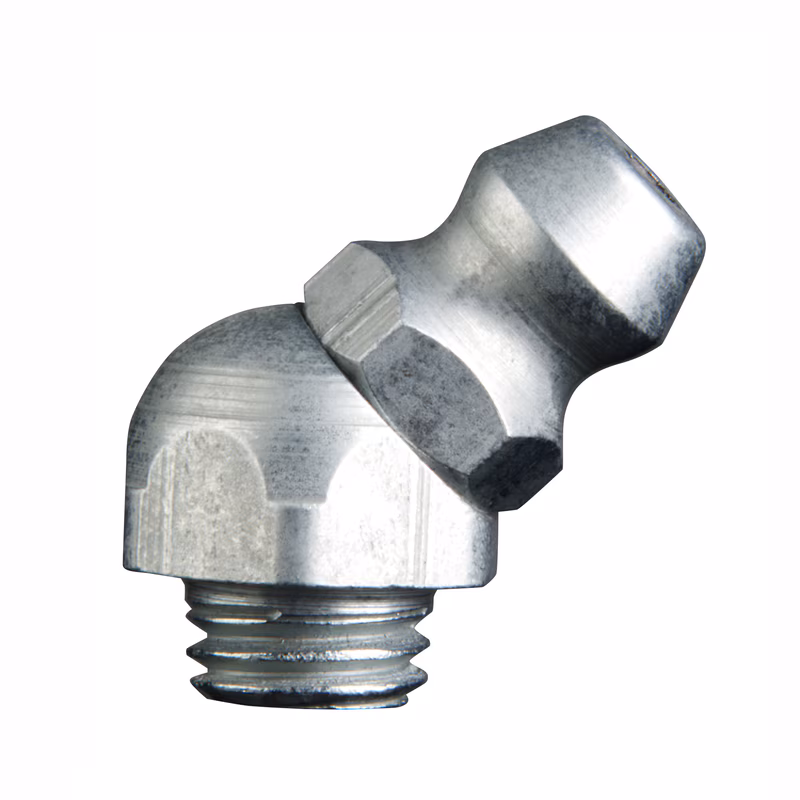

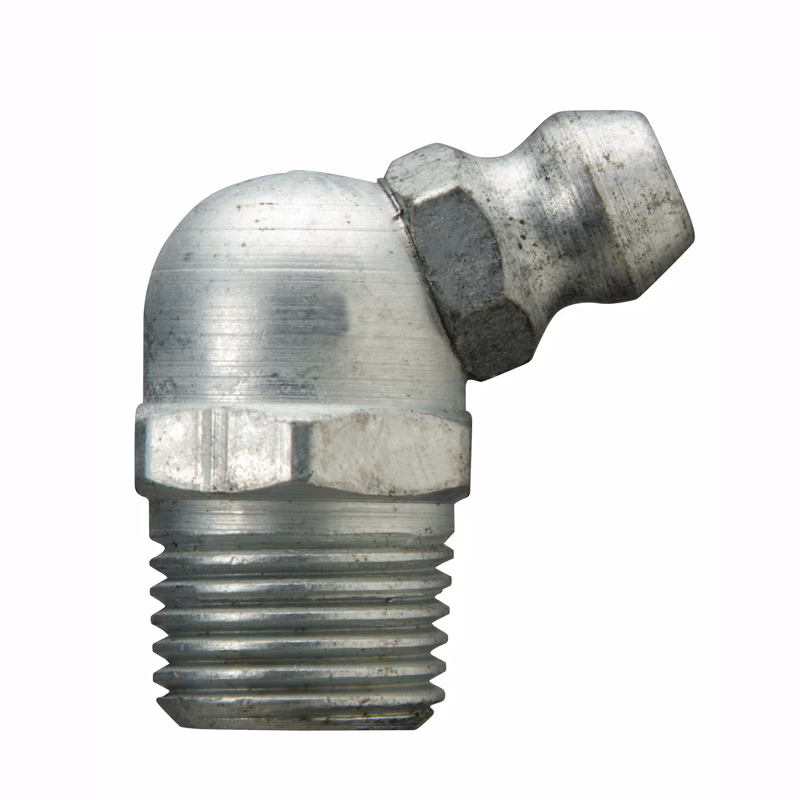

Type45°
Thread1/4"-28 Taper (SAE-LT)
GroupSteel Fittings, Zinc Finish

AS15001-4P

Alemite Part #1911-AS
Supersedes MS #MS-15001-4
NSN #4730000504207

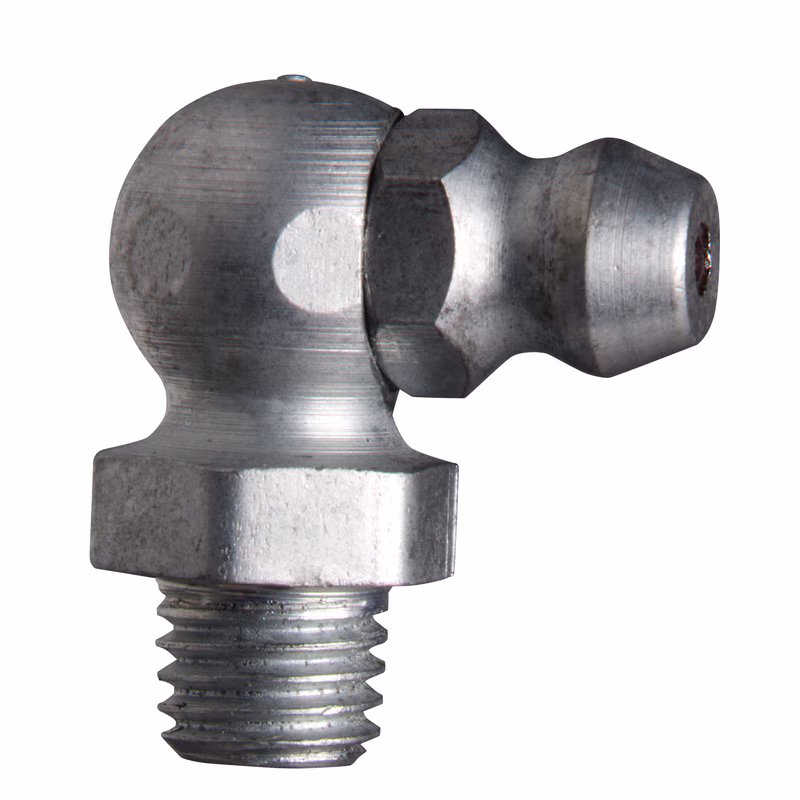

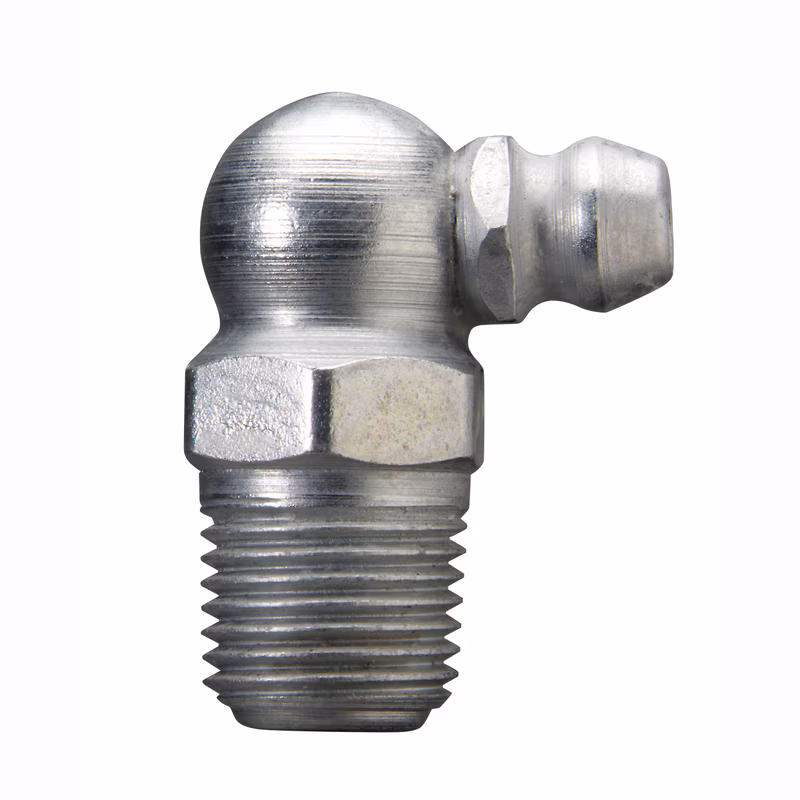

Type90°
Thread1/4"-28 Taper (SAE-LT)
GroupSteel Fittings, Zinc Finish

AS15002-1P

Alemite Part #1792-AS
Supersedes MS #MS-15002-1
NSN #4730001720010
TypeStraight
Thread1/4"-28 Taper UNF-2A
GroupSteel Fittings, Zinc Finish

AS15002-3P

Alemite Part #1770-AS
Supersedes MS #MS-15002-3
NSN #4730001720015
Type45°
Thread1/4"-28 Taper UNF-2A
GroupSteel Fittings, Zinc Finish

AS15003-1P

Alemite Part #1610-AS
Supersedes MS #MS-15003-1
NSN #4730000504208

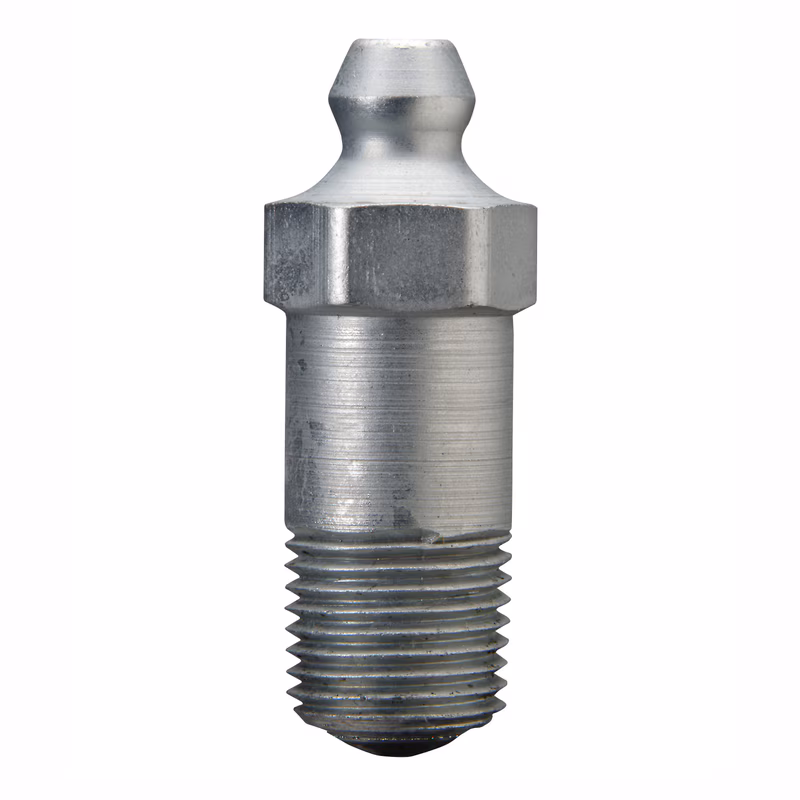

TypeStraight, 0.69" long
Thread1/8"-PTF-SAE Special Short
GroupSteel Fittings, Zinc Finish

AS15003-2P

Alemite Part #1607-AS
Supersedes MS #MS-15003-2
NSN #4730001720022

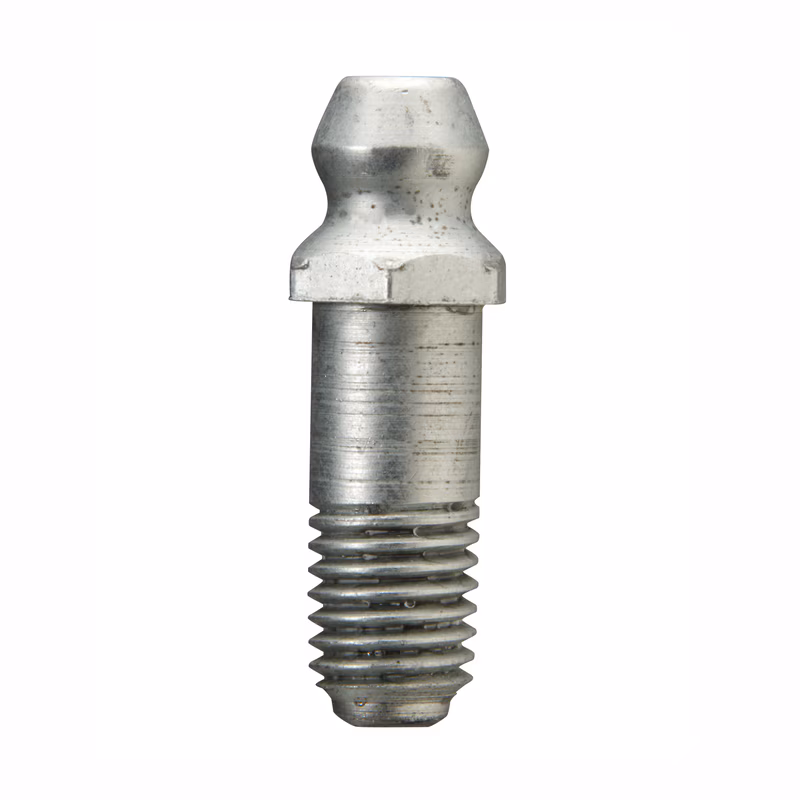

TypeStraight, 1.25" long
Thread1/8"-PTF-SAE Special Short
GroupSteel Fittings, Zinc Finish

AS15003-3P

Alemite Part #1611-AS
Supersedes MS #MS-15003-3
NSN #4730001720025

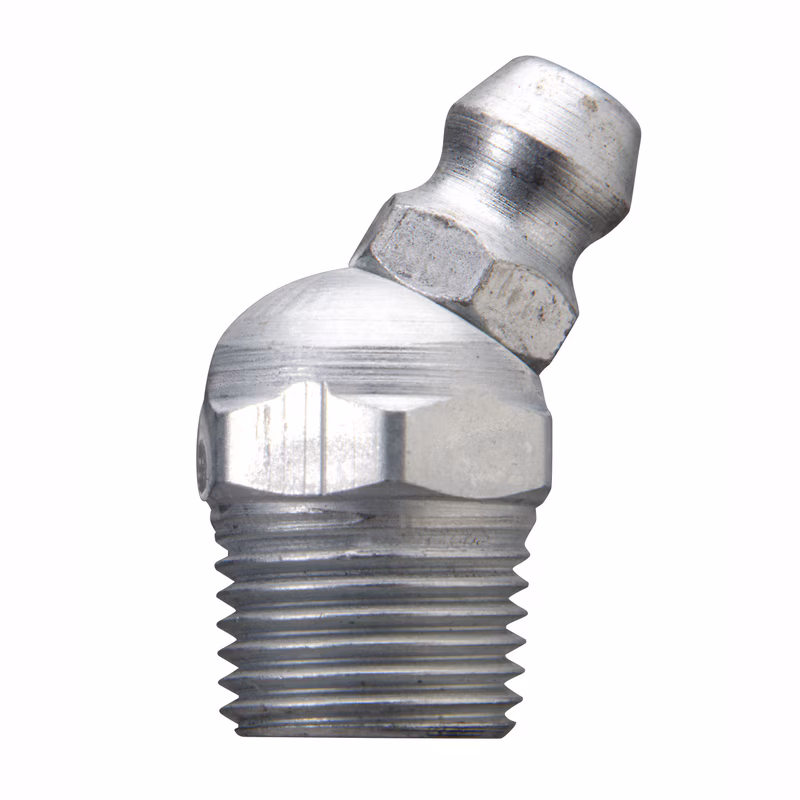

Type30°
Thread1/8"-PTF-SAE Special Short
GroupSteel Fittings, Zinc Finish

AS15003-4P

Alemite Part #1688-AS
Supersedes MS #MS-15003-4
NSN #4730001720028

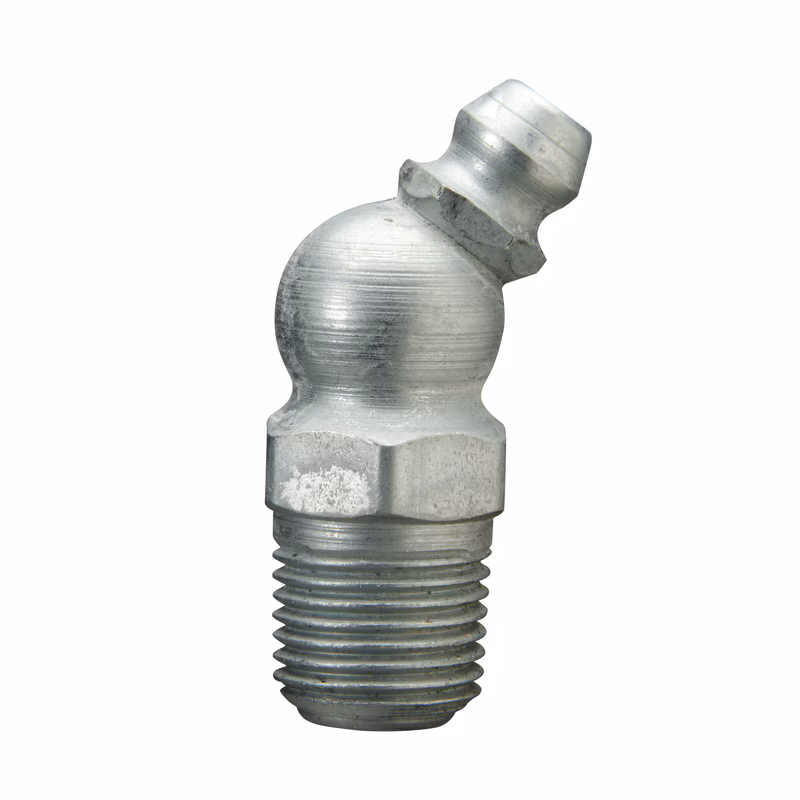

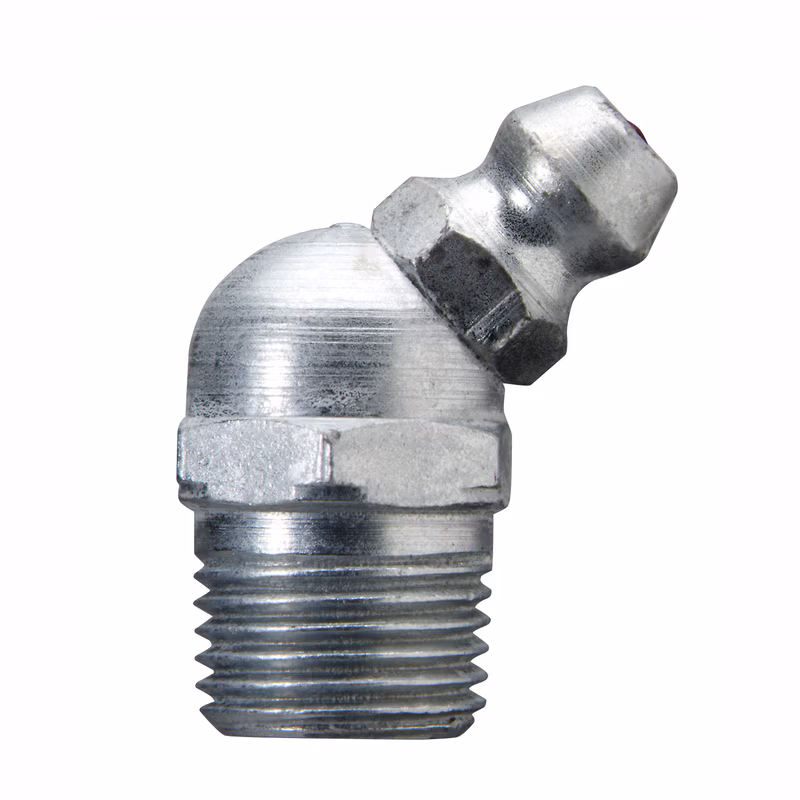

Type45°
Thread1/8"-PTF-SAE Special Short
GroupSteel Fittings, Zinc Finish

AS15003-5P

Alemite Part #1612-AS
Supersedes MS #MS-150013-5
NSN #4730001720031
Type65°
Thread1/8"-PTF-SAE Special Short
GroupSteel Fittings, Zinc Finish

AS15003-6P

Alemite Part #1613-AS
Supersedes MS #MS-15003-6
NSN #4730001720034

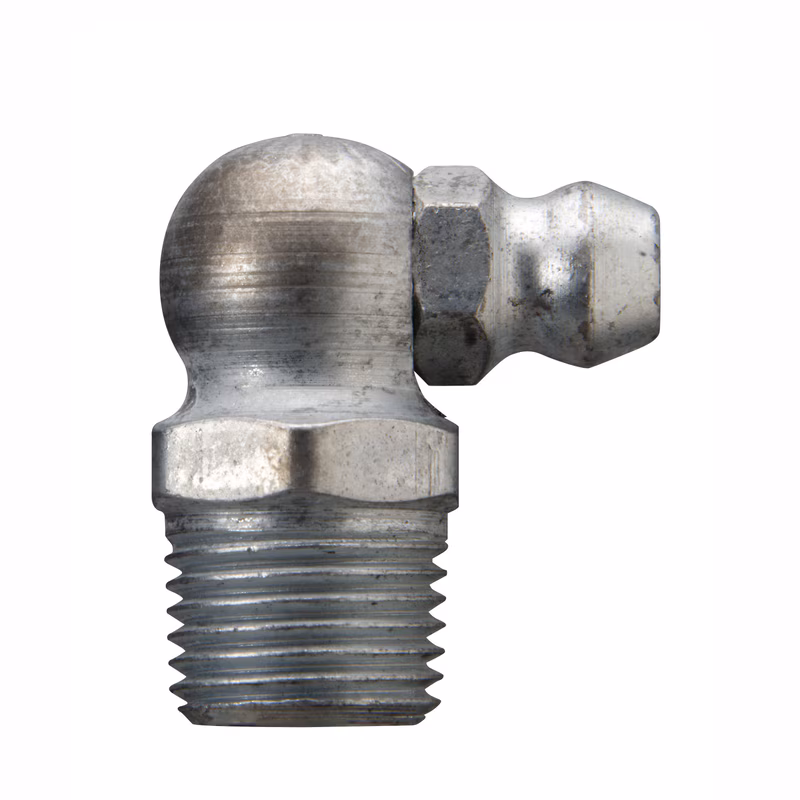

Type90°
Thread1/8"-PTF-SAE Special Short
GroupSteel Fittings, Zinc Finish

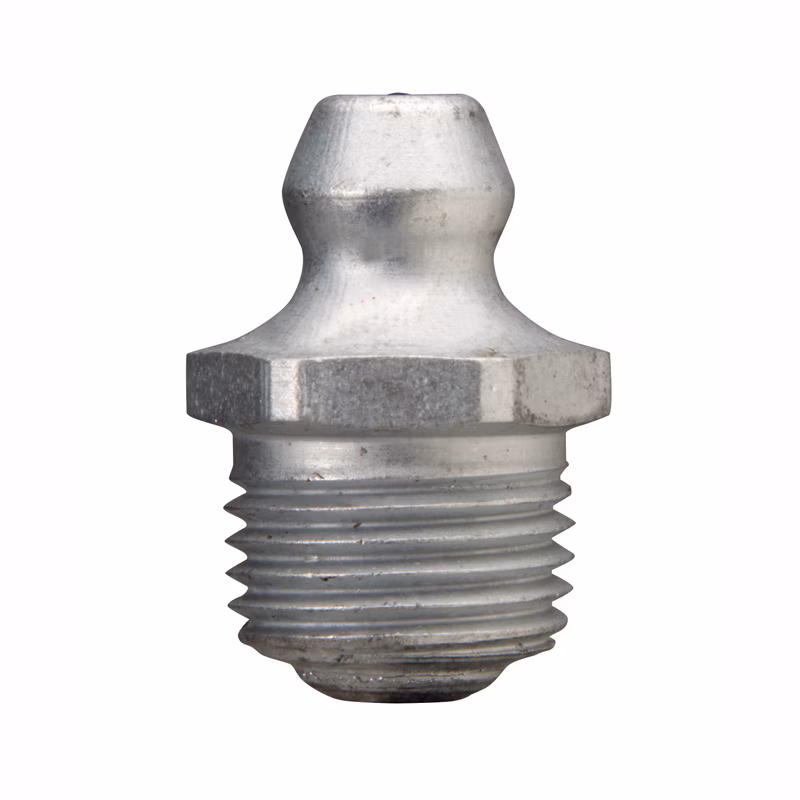

AS15006-1P

Alemite Part #1650-AS
Supersedes MS #MS-15006-1
NSN #4730001730049
TypeStraight Leak Proof
Thread1/8"-PTF-SAE Special Short
GroupSteel Fittings, Zinc Finish

AS15006-2P

Alemite Part #1692-AS
Supersedes MS #MS-15006-2
NSN #4730001730052
Type30° Leak Proof
Thread1/8"-NPTF
GroupSteel Fittings, Zinc Finish

AS15006-4P

Alemite Part #1693-AS
Supersedes MS #MS-15006-4
NSN #4730001730058
Type90° Leak Proof
Thread1/8"-NPTF
GroupSteel Fittings, Zinc Finish

AS15001-1U

Alemite Part #1641-AS1
TypeStraight
Thread1/4"-28 Taper (SAE-LT)
Boeing Part #BACF19F-1LZ
GroupSteel Fittings, Zinc Nickel Finish

-

Alemite Part #1984-AS1
TypeStraight
Thread1/4"-28 Taper (SAE-LT)
Boeing Part #BACF19F-1Z
GroupSteel Fittings, Zinc Nickel Finish

AS15001-2U

Alemite Part #1680-AS1
TypeStraight, 0.97" long
Thread1/4"-28 Taper (SAE-LT)
Boeing Part #BACF19F-2LZ/2Z
GroupSteel Fittings, Zinc Nickel Finish

AS15001-3U

Alemite Part #1637-AS1
Type45°
Thread1/4"-SAE-LT Taper
Boeing Part #BACF19F-3LZ/3Z
GroupSteel Fittings, Zinc Nickel Finish

AS15001-4U

Alemite Part #1911-AS1
Type90°
Thread28 Taper (SAE-LT)
Boeing Part #BACF19F-4LZ BACF19F-4Z
GroupSteel Fittings, Zinc Nickel Finish

AS15002-1U

Alemite Part #1792-AS1
TypeStraight
Thread1/4"-28 (UNF-2A)
Boeing Part #-
GroupSteel Fittings, Zinc Nickel Finish

Specifications

FeaturesSAE AS 35411 compatible
TypesStraight; 30°; 45°; 65°; 90°
