Attributes
| Alemite Series | fittings |
|---|
Description
Alemite Stainless Steel Fittings withstand severely corrosive marine and industrial environments. All stainless steel fittings have 2 notches for easy identification.
Variations (8)
1966-S
| Thread | 1/4"-28 Taper |
|---|---|
| Type | Straight |
| Hex Size | 5/16" |
| Overall Length | 17/32" |
| Shank Length | 3/16" |
1968-S
| Thread | 1/4"-28 Taper |
|---|---|
| Type | 90° |
| Hex Size | 3/8" |
| Overall Length | 13/16" |
| Shank Length | 13/64" |

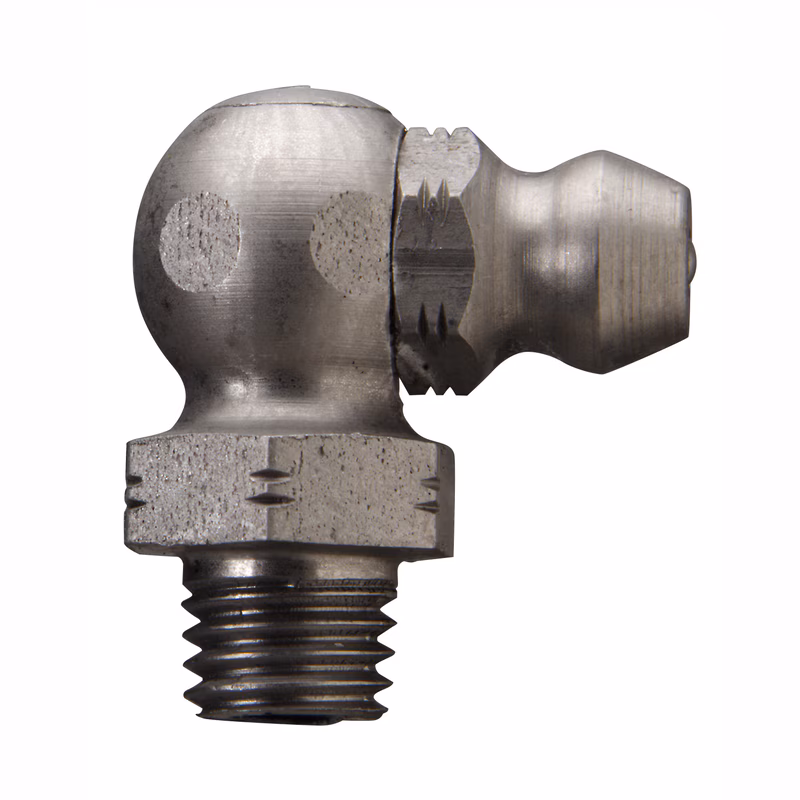

1969-S
| Thread | 1/4"-28 Taper |
|---|---|
| Type | 90° |
| Hex Size | 3/8" |
| Overall Length | 3/4" |
| Shank Length | 13/64" |
1961-S
| Thread | 1/8" PTF |
|---|---|
| Type | Straight |
| Hex Size | 7/16" |
| Overall Length | 3/4" |
| Shank Length | 5/16" |

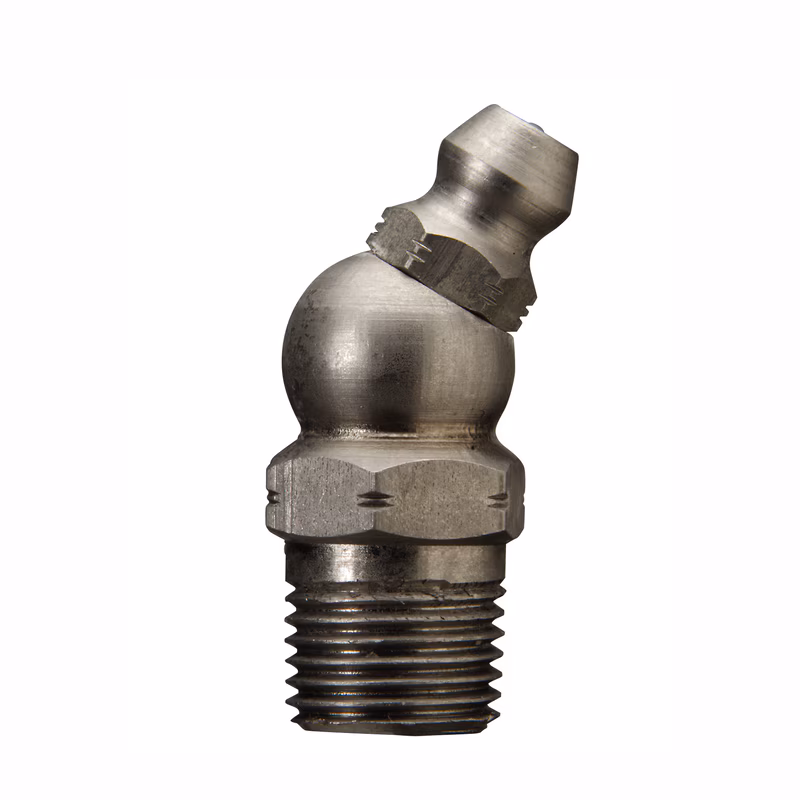

1921-S
| Thread | 1/8" PTF |
|---|---|
| Type | 30° |
| Hex Size | 7/16" |
| Overall Length | 1-1/4" |
| Shank Length | 11/32" |

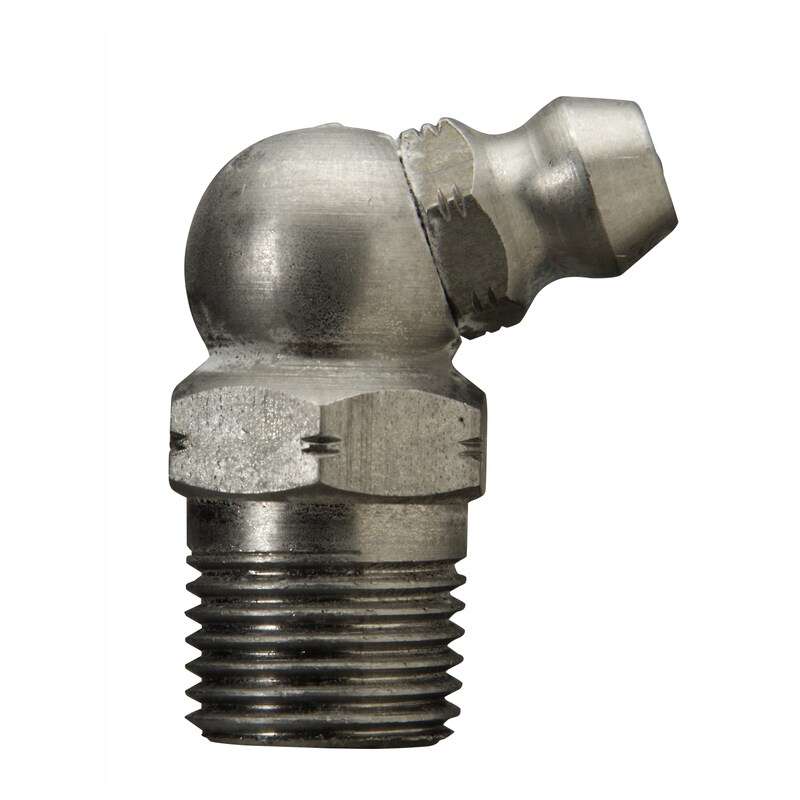

1922-S
| Thread | 1/8" PTF |
|---|---|
| Type | 67.5° |
| Hex Size | 7/16" |
| Overall Length | 61/64" |
| Shank Length | 11/32" |
1923-S
| Thread | 1/8" PTF |
|---|---|
| Type | 90° |
| Hex Size | 7/16" |
| Overall Length | 7/8" |
| Shank Length | 11/32" |

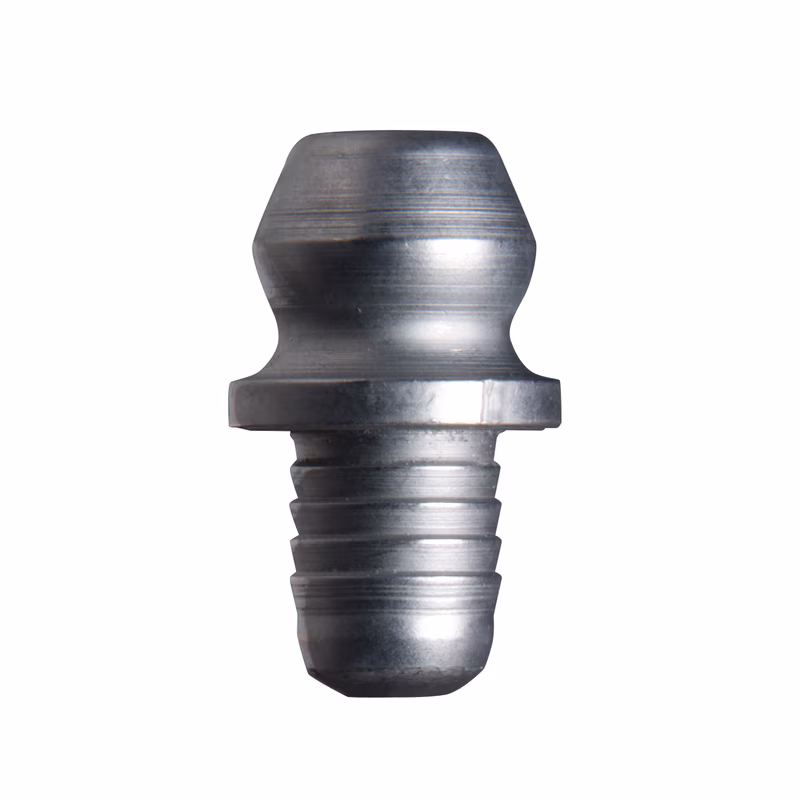

1728-S
| Thread | Drive |
|---|---|
| Type | Straight |
| Hex Size | 5/16" |
| Overall Length | 33/64" |
| Shank Length | 5/16" |
Specifications
| Features | Greater corrosion resistance than stainless steel; Withstands extreme temperatures ranging from sub-zero to 700 °F ( 371 °C ); Ideal for use in harsh chemical environments and marine applications; Dirt excluding check ball; RoHS compliant |
|---|---|
| Types | Straight; 30°; 67.5°; 90° |
