Attributes
| Alemite Series | control-valves-and-meters |
|---|
Description

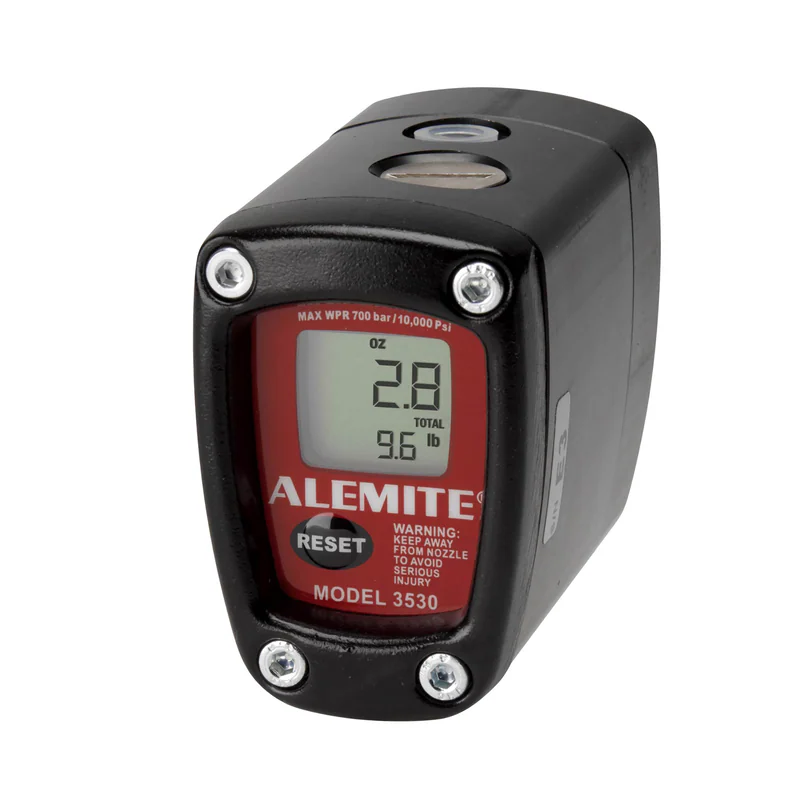

The Alemite Electronic Grease Meter works with virtually any type of grease dispensing valve or grease gun. This in-line meter provides accurate and reliable grease delivery, optimizing lubrication consumption while ensuring components receive appropriate lubrication.
Variations (4)
3530
| Max. Operating Pressure | 10,000 psi (700 bar) |
|---|---|
| Flow Rate | 0.2-5.5 lb/min (0.09-2.5 kg/min) |
| Thread Sizes | 1/8" NPTF(f) in and out |
| Battery | 2 x 1.5V Size N |
| Unit of Measure | Ounce, Pound |
| Weight | 1.2 lb (0.5 kg) |
3530-A
| Max. Operating Pressure | 10,000 psi (700 bar) |
|---|---|
| Flow Rate | 0.2-5.5 lb/min (0.09-2.5 kg/min) |
| Thread Sizes | 1/8" NPTF(f) in and out |
| Battery | 2 x 1.5V Size N |
| Unit of Measure | Gram, Kilogram |
| Weight | 1.2 lb (0.5 kg) |
3530-B
| Max. Operating Pressure | 10,000 psi (700 bar) |
|---|---|
| Flow Rate | 0.4-11 lb/min (0.18-5 kg/min) |
| Thread Sizes | 1/4" NPTF(f) in and out |
| Battery | 2 x 1.5V Size N |
| Unit of Measure | Ounce, Pound |
| Weight | 1.2 lb (0.5 kg) |
3530-C
| Max. Operating Pressure | 10,000 psi (700 bar) |
|---|---|
| Flow Rate | 0.4-11 lb/min (0.18-5 kg/min) |
| Thread Sizes | 1/4" NPTF(f) in and out |
| Battery | 2 x 1.5V Size N |
| Unit of Measure | Gram, Kilogram |
| Weight | 1.2 lb (0.5 kg) |
Specifications
| Requires Adapter Kit | Battery Powered Gun Kit: 340062; 500 Series Manual Gun Kit: 41531; 6320-3 Control Valve Kit: 327899-3; 6243-J3 and 6679-J3 Gun Kit: 306722 |
|---|---|
| Features | Resettable, easy to read LCD indicates batch and cumulative totals; Oval gear technology; Accurately displays amount of grease dispensed, allowing user to deliver required lubrication; Decreases lubricant waste; Accuracy: +/- 3% |
| Compatibility | Greases |
