Attributes
| Alemite Series | control-valves-and-meters |
|---|
Description
Alemite’s oil bar line includes a compact, modular oil bar capable of accommodating up to three spigots. Locking and non-locking spigots are available for use with the unit. A brass flow control valve is offered to control pressure and flow at the spigot, and an optional inline digital meter measures fluid.
Variations (6)
343090
| Description | Oil Bar |
|---|---|
| Outlet | - |
| Inlet | - |
| Pressure | - |
| Flow Range | - |

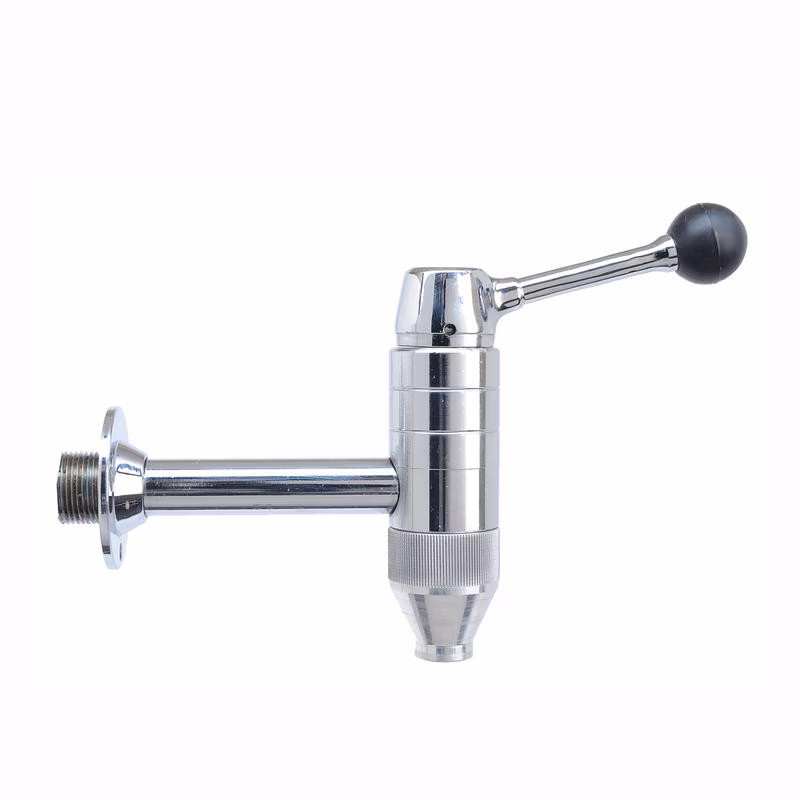

343091-1
| Description | Spigot with Locking Lever, Compatible with Hydraulic and Other Medium-Viscosity Oils up to SAE 90 |
|---|---|
| Outlet | - |
| Inlet | 1/2" NPT(f) 3/4" NPT(m) |
| Pressure | 750 psi (52 bar) |
| Flow Range | - |

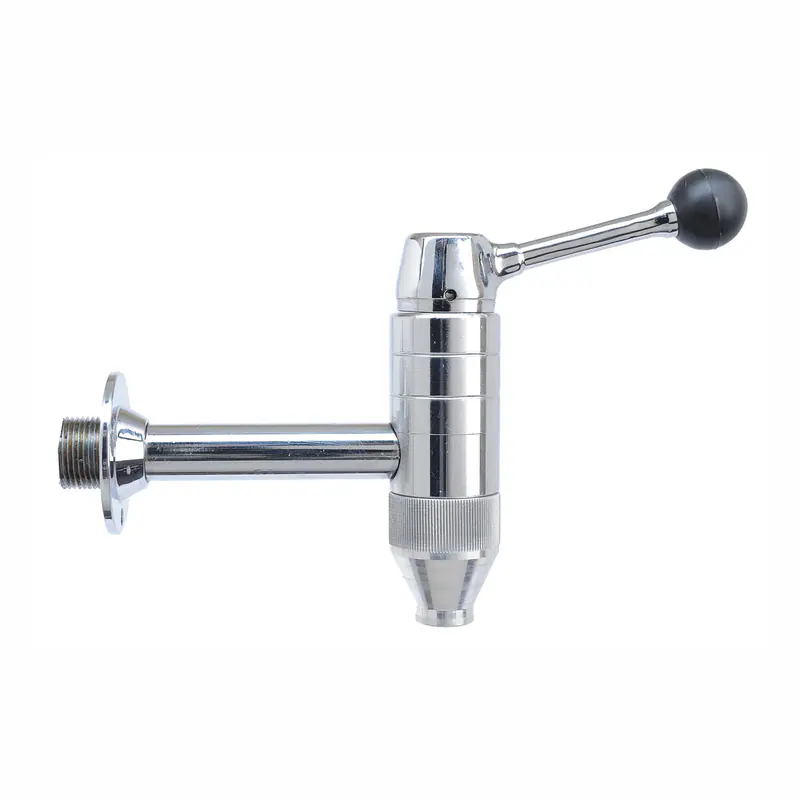

343092-1
| Description | Spigot with Non-Locking Lever, Compatible with Hydraulic and Other Medium-Viscosity Oils up to SAE 90 |
|---|---|
| Outlet | - |
| Inlet | 1/2" NPT(f) 3/4" NPT(m) |
| Pressure | 750 psi (52 bar) |
| Flow Range | - |

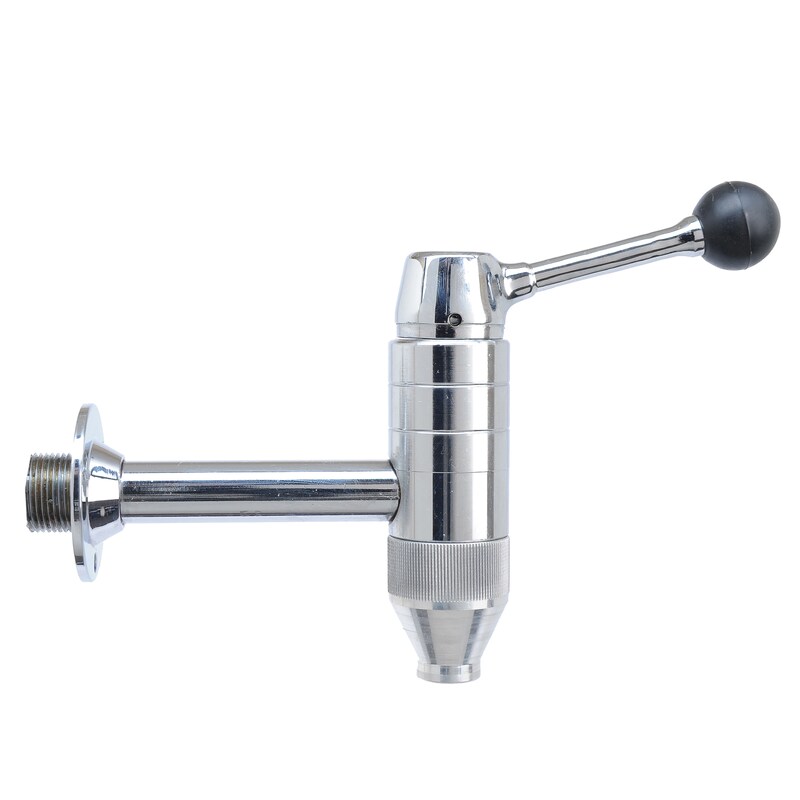

343259
| Description | Spigot with Non-Locking Lever, Compatible with Washer Fluid and Antifreeze |
|---|---|
| Outlet | - |
| Inlet | 1/2" NPT(f) 3/4" NPT(m) |
| Pressure | 750 psi (52 bar) |
| Flow Range | - |

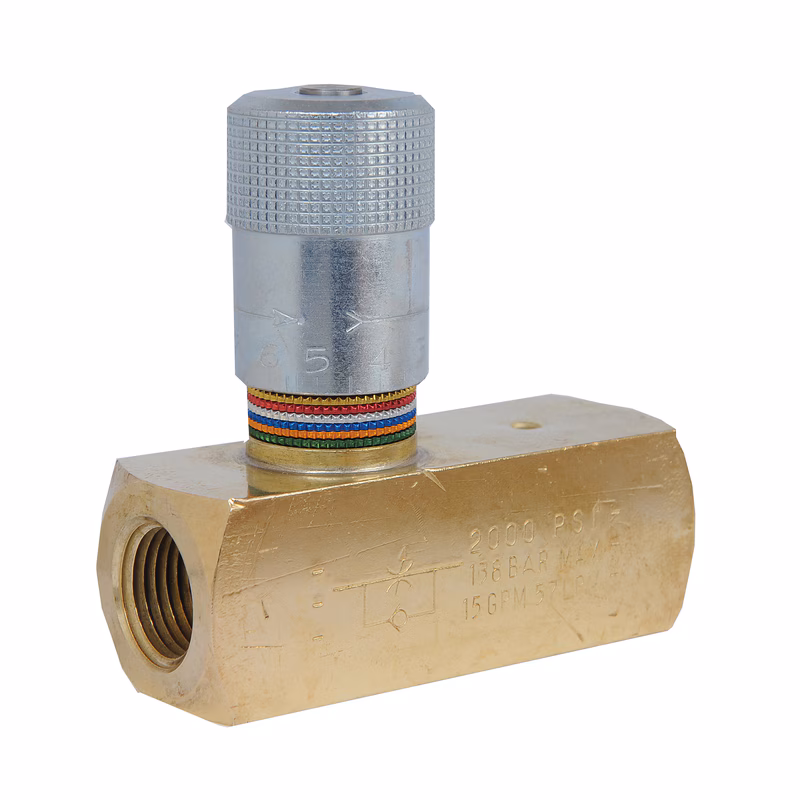

343093
| Description | Flow Control Valve, Brass Construction |
|---|---|
| Outlet | 1/2"-14 NPT |
| Inlet | 1/2"-14 NPT |
| Pressure | 2,000 psi (138 bar) |
| Flow Range | 15 gallon (56 liter) |
3679
| Description | Inline Meter , Requires Installation Kit #343098 |
|---|---|
| Outlet | 1/2" NPTF |
| Inlet | 1/2" NPTF |
| Pressure | 1,000 psi (69 bar) |
| Flow Range | 0.25 to 8 gallon (1 to 30 liter) |
Specifications
| Features | Steel construction; Modular design; 3-spigot capacity; 2.9 gallon (11 liter) removable reservoir/drain; Hole knockouts for inline digital meter; Overall dimensions: 33.39" (85 cm) tall x 19.69" (50 cm) wide x 3.94" (10 cm) deep; 14.36" (36 cm) deep with removable reservoir |
|---|---|
| Compatibility | Oil |
