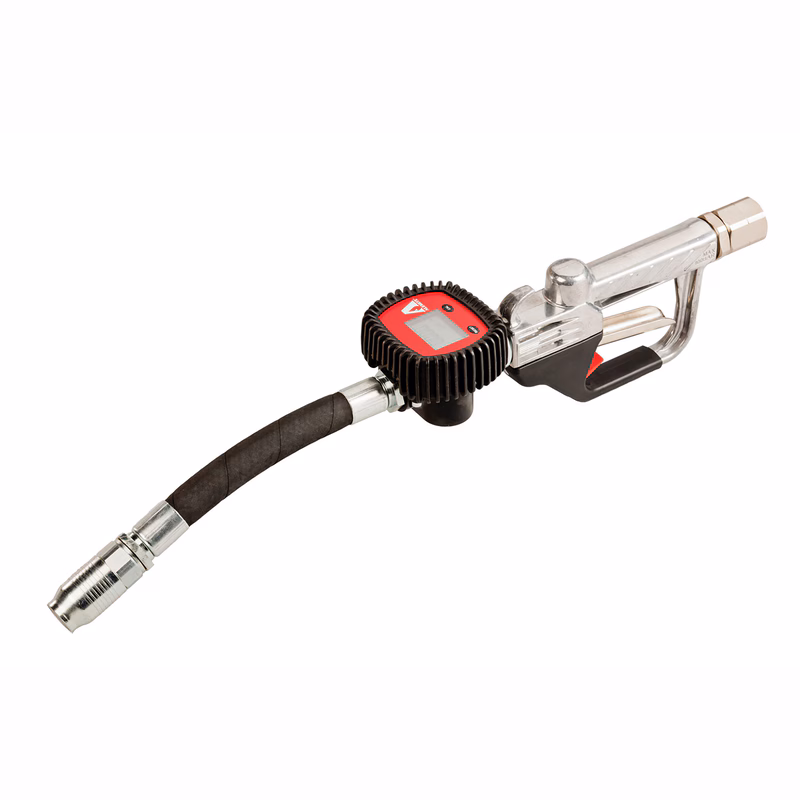

High-Volume Oil Valve Model 3573 / 3579

Scraped SKU: skf-high-volume-model-3573 2026-06-13 07:52:24

Attributes

Alemite Seriescontrol-valves-and-meters

Description

Alemite High Volume Control Valves and Meters will transfer fluids at very high flow rates of up to 30 gallons *(80 liters)* per minute and with operating pressures up to 1,500 psi *(103 bar)* and 1,000 psi *(70 bar)* with meter. The rugged metal construction is designed to handle tough work environments.

Variations (3)

3573-A

Rate16 gal/min (60 l/min)
MeasuresPint, Quart, Gallon, Liter
TotalizesGallons, Liters
ExtensionRigid
Non-Drip TipSemi-Automatic 1)
Weight6.4 lb (2.9 kg)

3573-B

Rate16 gal/min (60 l/min)
MeasuresPint, Quart, Gallon, Liter
TotalizesGallons, Liters
ExtensionFlexible
Non-Drip TipSemi-Automatic 1)
Weight6.6 lb (3.0 kg)

3579

Rate16 gal/min (60 l/min)
MeasuresPint, Quart, Gallon, Liter
TotalizesGallons, Liters
Extension-
Non-Drip Tip-
Weight1.2 lb (0.5 kg)

Specifications

FeaturesAvailable with flexible or rigid extension; 3/4" NPTF(f) inlet, with swivel; Lever locking handle; Lever guard; Operating temperature -22 to 122°F ( -5 to +50°C ); Meter uses two AAA batteries
CompatibilityOil
