Attributes
| Alemite Series | compressed-air-components |
|---|
Description

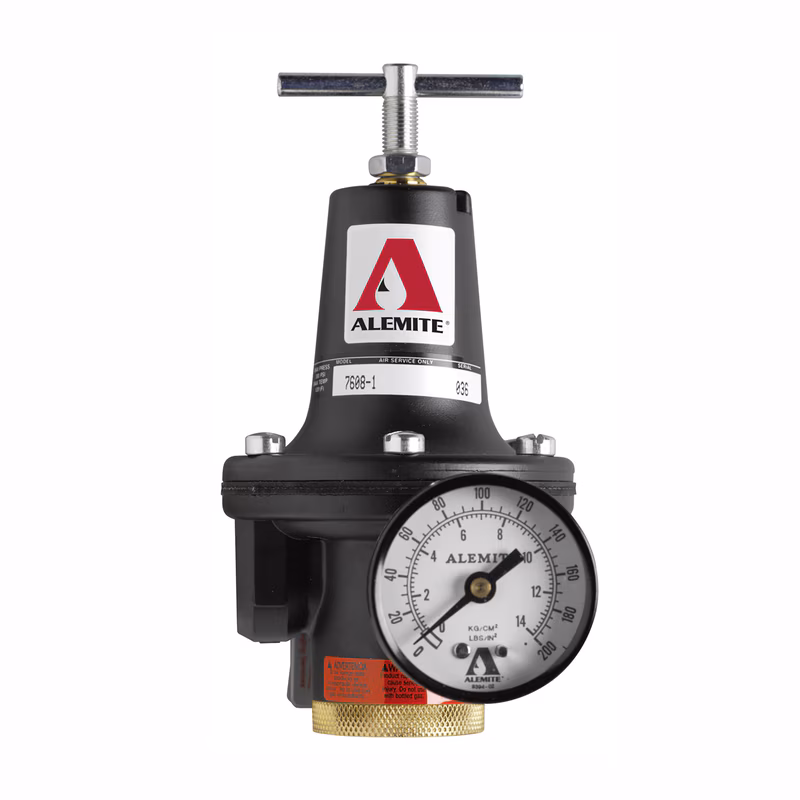

Constant regulated pressure prevents damage to air operated equipment. Alemite regulators include a pressure relief feature which bleeds off excess pressure when adjustment to lower pressure occurs. Strainer is included with each regulator.
Variations (2)
7608-B
| Max Inlet Pressure | 300 psi (21 bar) |
|---|---|
| Inlet/Outlet | 1/2" NPTF(f) |
| Max Regulated Pressure | 125 psi (9 bar) |
| Pressure Gauge | 323449-4 |
| Air Gauge Inlet | 1/4" NPT(m) |
| Weight | 3.5 lb (1.6 kg) |
7608-1
| Max Inlet Pressure | 300 psi (21 bar) |
|---|---|
| Inlet/Outlet | 1/2" NPTF(f) |
| Max Regulated Pressure | 125 psi (9 bar) |
| Pressure Gauge | - |
| Air Gauge Inlet | - |
| Weight | 3.2 lb (0.91 kg) |
Specifications
| Features | Max Inlet Pressure: 300 psi ( 21 bar ); Inlet/Outlet: 1/2" NPTF(f) |
|---|
