Attributes
| Alemite Series | reels |
|---|
Description

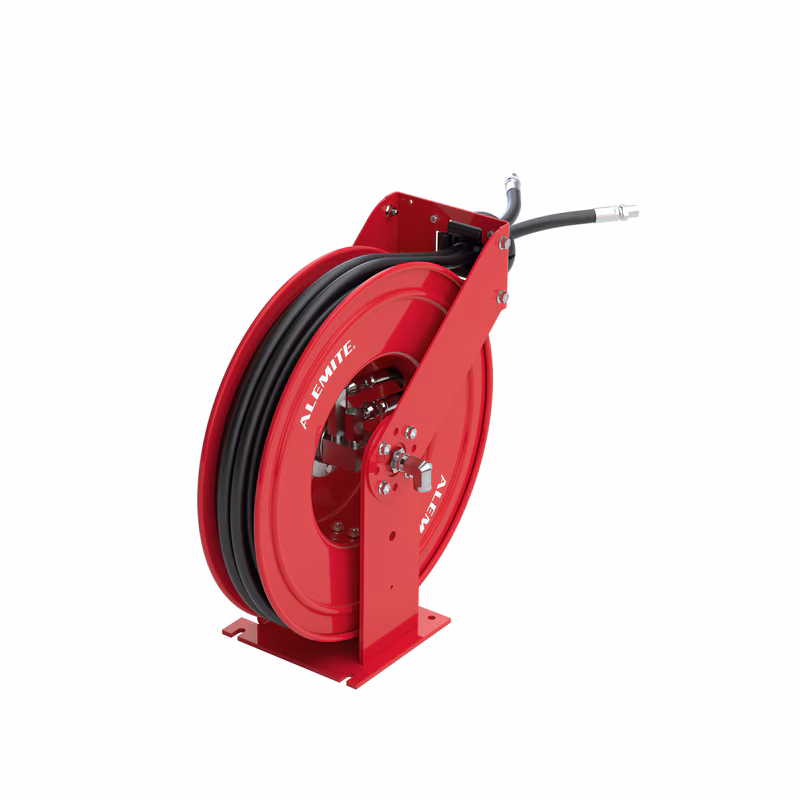

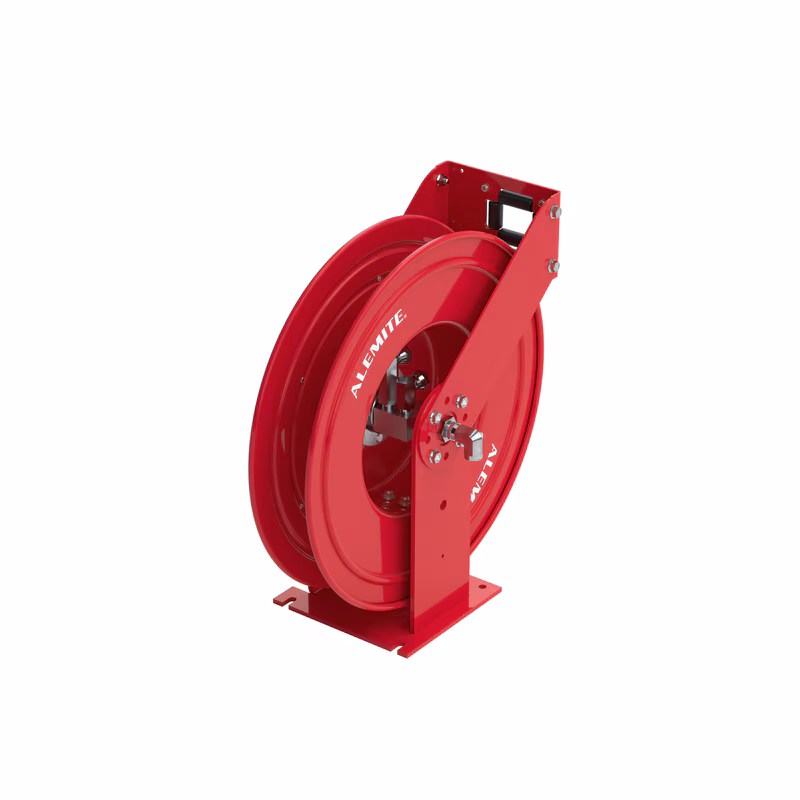

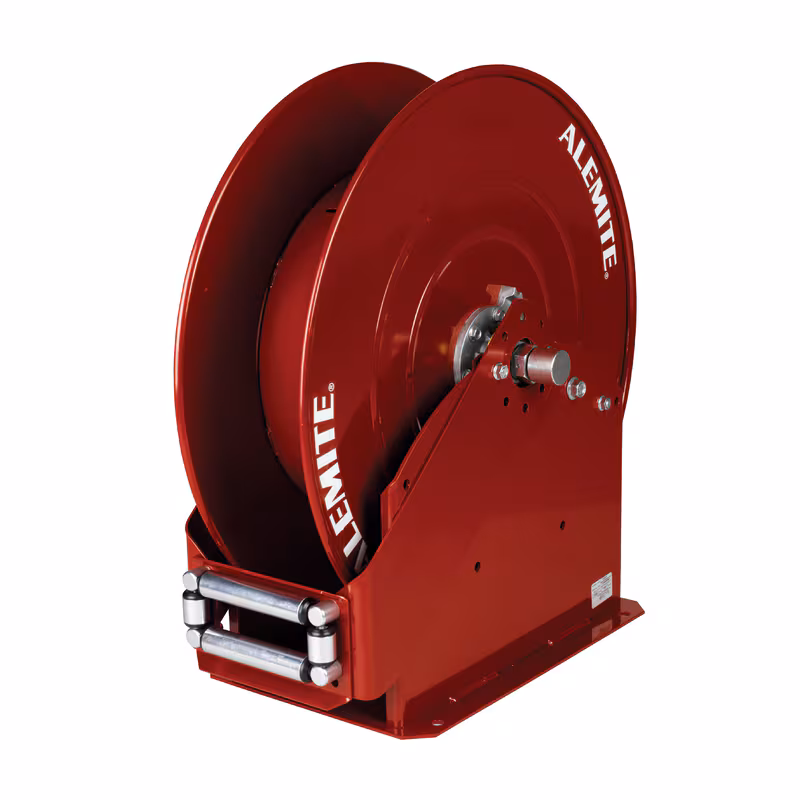

Alemite's Twin Hose Reels for hydraulic power applications are constructed to the same high quality standards as all of our reels. Our reels feature rigid construction, sealed design, and high volume capacity, making them the ideal choice for a variety of rugged outdoor uses. Applications include hydraulic cylinders, tools, and equipment.
Variations (4)
8081-H
| Color | Maroon |
|---|---|
| Max Pressure | 3,000 psi (207 bar) |
| Delivery Hose | 3/8" ID x 30 ft |
| Reel | 3/8" NPSM |
| Weight | 75 lb (34 kg) |
7374
| Color | Maroon |
|---|---|
| Max Pressure | 3000 psi (207 bar) |
| Outlet | 3/8" NPTF Swivel |
| Inlet | 3/8" NPSM |
| Weight | 75 lb (34 kg) |
| Group | Specifications Bare Reels |
7343
| Color | Maroon |
|---|---|
| Max Pressure | 3000 psi (207 bar) |
| Outlet | 3/8" NPSM(f) Swivel |
| Inlet | 3/8" NPTF |
| Weight | 120 lb (54.4 kg) |
| Group | Specifications Bare Reels |
7344
| Color | Maroon |
|---|---|
| Max Pressure | 3000 psi (207 bar) |
| Outlet | 1/2" NPSM(f) Swivel |
| Inlet | 1/2" NPTF |
| Weight | 120 lb (54.4 kg) |
| Group | Specifications Bare Reels |
Specifications
| Features | Sealed spring cassette protects the power spring from corrosion caused by water and dirt; Sealed rollers eliminate contamination that can bind the hose guide rollers; Superior bearing performance reduces torque load on power spring for smooth retraction and durability; Outlet port swivel nut facilitates installation of twin hose; High-volume capacity flow passage reduces fill rate time and improves efficiency; Model 7374 / 8081-H: Adjustable arm allows for mounting on a floor, ceiling, or wall; Narrow width allows for more reels to be mounted along a truck bed; Models 7343 / 7344 Double arm provides extra support for a larger hose during use; Four-corner bolthole pattern on the outside of base provides extra stability |
|---|---|
| Compatibility | Oil/Hydraulic; Grease |
