Attributes
| Alemite Series | reels |
|---|
Description

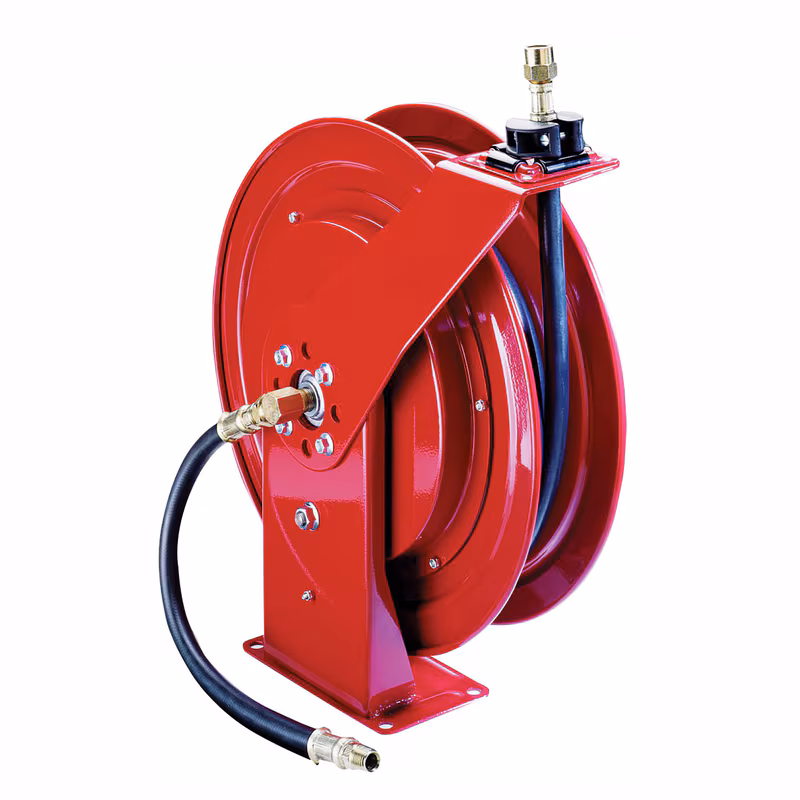

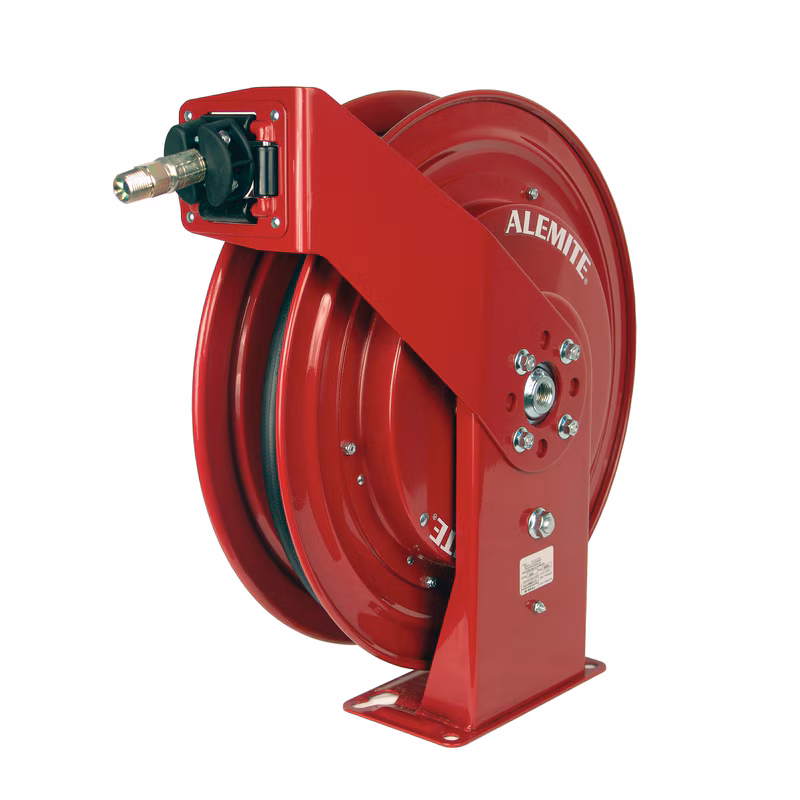

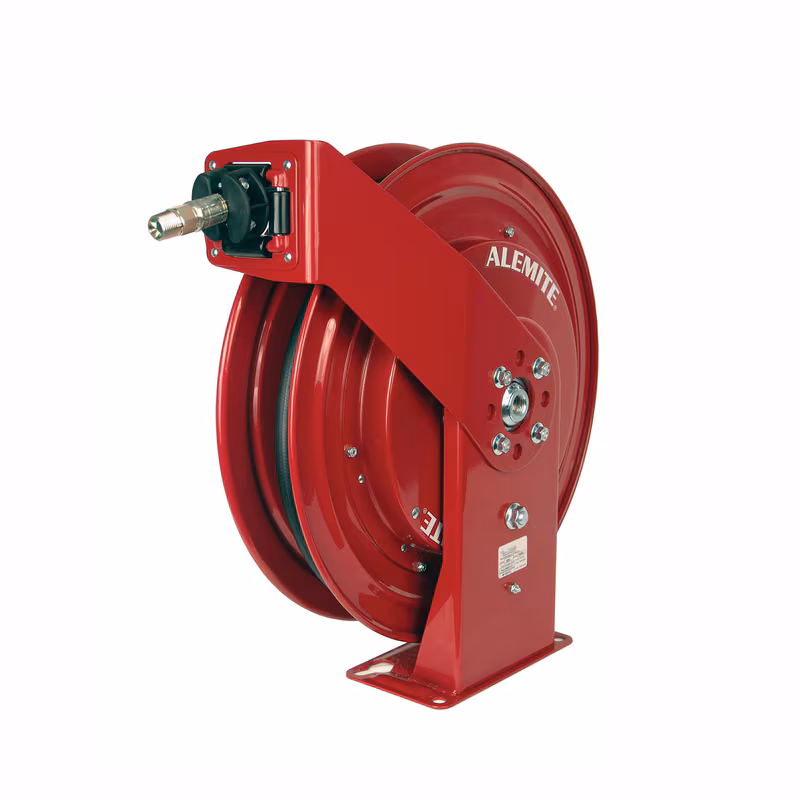

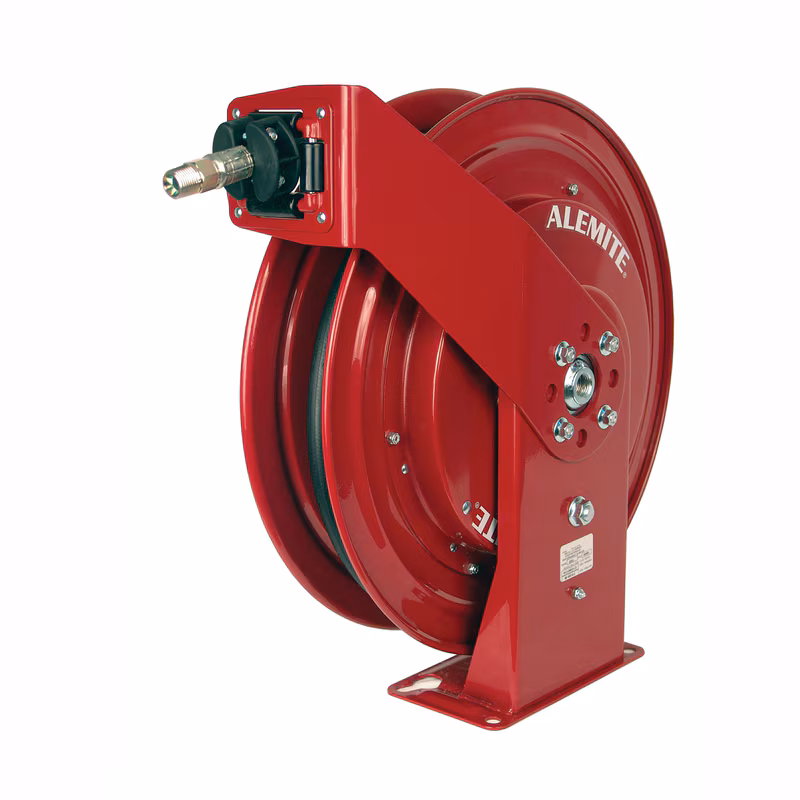

Tough jobs require tough equipment. Alemite Severe Duty Reels are designed to deliver maximum strength and durability in harsh working conditions. The thicker, fully welded base plate provides solid stability for mobile applications, and weather resistant gaskets and O-rings protect internal components from corrosion.
Variations (6)
8078-P
| Color | Maroon |
|---|---|
| Max Pressure | 1,500 psi (103 bar) |
| Delivery Hose | 1/2" ID x 30 ft |
| Connecting Hose | 1/2" NPTF(m) |
| Weight | 58 lb (26 kg) |
8078-H
| Color | Maroon |
|---|---|
| Max Pressure | 1,500 psi (103 bar) |
| Delivery Hose | 1/2" ID x 50 ft |
| Connecting Hose | 1/2" NPTF(m) |
| Weight | 60 lb (27 kg) |
7335-C
| Color | Maroon |
|---|---|
| Usage | Oil |
| Max. Pressure | 1,500 psi (103 bar) |
| Inlet | 1/2" NPTF(f) |
| Outlet | 1/2" NPTF(f) Swivel |
| Weight | 50 lb (23 kg) |
| Group | Bare reels |
7334-C
| Color | Maroon |
|---|---|
| Usage | Grease |
| Max. Pressure | 6,000 psi (413 bar) |
| Inlet | 1/2" NPTF(f) |
| Outlet | 3/8" NPTF(f) Swivel |
| Weight | 50 lb (23 kg) |
| Group | Bare reels |
7336-C
| Color | Maroon |
|---|---|
| Usage | Air/Water |
| Max. Pressure | 300 psi (21 bar) |
| Inlet | 1/2" NPTF(f) |
| Outlet | 3/8" NPTF(f) Swivel |
| Weight | 44 lb (20 kg) |
| Group | Bare reels |
7337-C
| Color | Maroon |
|---|---|
| Usage | Diesel Fuel Oil |
| Max. Pressure | 300 psi / 30" Hg (21 bar) |
| Inlet | 3/4" NPTF(f) |
| Outlet | 3/4" NPTF(f) Swivel |
| Weight | 53 lb (24 kg) |
| Group | Bare reels |
Specifications
| Included items | Hose Reel; Hose; Hose Stop; Union; 24"; (61 cm); Connecting Hose |
|---|---|
| Features | Superior Performance – Swivel and reel ball bearings reduce torque load on power spring for smooth retraction every time; Anti-Lockout Design – Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel; Corrosion Resistant – Sealed bearings and weather resistant sealing components prevent contamination and minimize maintenance, a critical performance factor in dirty environments; Easy Installation and Maintenance – Factory lubricated one piece power spring cassette makes installation and maintenance safe and easy; Durable – Heavy metal arbor design withstands extreme stress and eliminates breakage associated with non-metal and light weight metal arbors. Thicker, fully welded base plate ensures off road stability; Adjustable and Versatile – 5 position guide arm allows hose to release at an optimum position. Narrow design allows for efficient use of available space |
| Compatibility | Oil; Grease; Air/Water; Diesel Fuel Oil |
