Attributes
| Alemite Series | reels |
|---|
Description

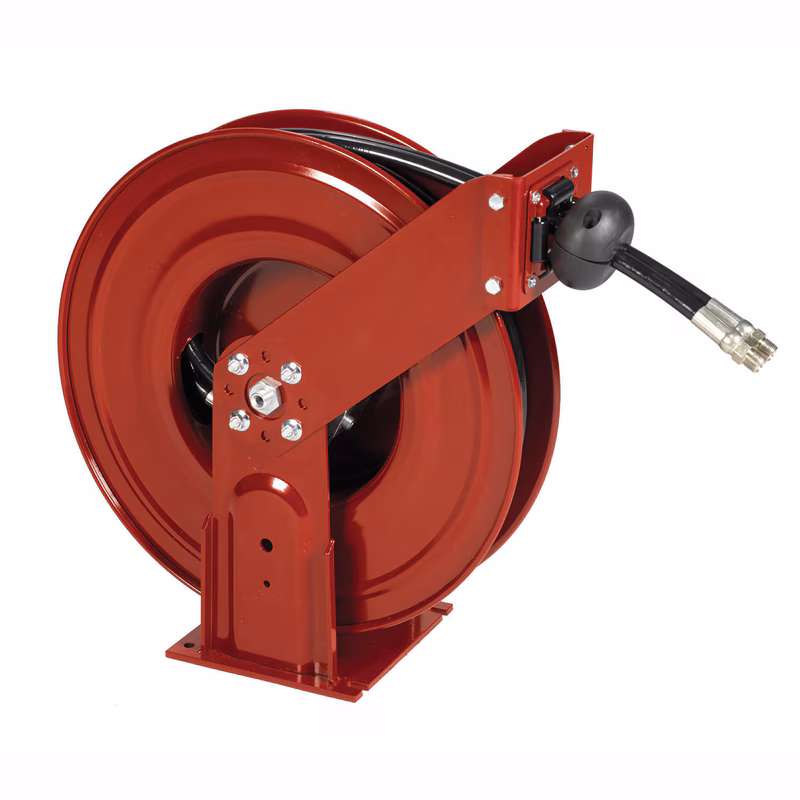

Alemite Narrow Double Post Reels provide the rugged, reliable performance of an Alemite Reel, with a narrower design to fully optimize space efficiency. The dual arm design provides increased strength and stability in demanding off road applications.
Variations (6)
8081-C
| Color | Maroon |
|---|---|
| Max Pressure | 1,800 psi (124 bar) |
| Delivery Hose | 1/2" ID x 40 ft |
| Reel | 1/2" NPSM(m) |
| Weight | 71 lb (32 kg) |
8081-D
| Color | Maroon |
|---|---|
| Max Pressure | 1,800 psi (124 bar) |
| Delivery Hose | 1/2" ID x 50 ft |
| Reel | 1/2" NPSM(m) |
| Weight | 74 lb (34 kg) |
7331
| Color | Maroon |
|---|---|
| Usage | Oil |
| Max. Pressure | 1,800 psi (125 bar) |
| Inlet | 1/2" NPSM(m) |
| Outlet | 1/2" NPSM(f) Swivel |
| Weight | 57 lb (26 kg) |
| Group | Bare reels |
7370
| Color | Maroon |
|---|---|
| Usage | Grease |
| Max. Pressure | 6,500 psi (450 bar) |
| Inlet | 1/2" NPSM(m) |
| Outlet | 3/8" NPSM(f)Swivel |
| Weight | 58 lb (27 kg) |
| Group | Bare reels |
7372
| Color | Maroon |
|---|---|
| Usage | Air/Water |
| Max. Pressure | 300 psi (21 bar) |
| Inlet | 1/2" NPSM(m) |
| Outlet | 3/8" NPTF(f) Swivel |
| Weight | 55 lb (25 kg) |
| Group | Bare reels |
7373
| Color | Maroon |
|---|---|
| Usage | Fuel |
| Max. Pressure | 300 psi (21 bar) |
| Inlet | 3/4" NPSM(m) |
| Outlet | 3/4" NPSM(f) Swivel |
| Weight | 61 lb (28 kg) |
| Group | Bare reels |
Specifications
| Included items | Hose Reel; Hose; Hose Stop; Union |
|---|---|
| Features | Narrow Design – 8.5" (22 cm) wide, for better space utilization; Superior Performance – Swivel and reel ball bearings reduce torque load on power spring for smooth retraction every time; Anti-Lockout Design – Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel; Corrosion Resistant – Sealed bearings prevent contamination and minimize maintenance, a critical performance factor in dirty environments; Easy Installation and Maintenance – Factory lubricated one piece power spring cassette makes installation and maintenance safe and easy; Durable – Heavy metal arbor and dual arm design withstand extreme stress and eliminate breakage associated with non-metal and light weight metal arbors; Adjustable and Versatile – 5 position guide arm allows hose to release at an optimum position. Narrow design allows for efficient use of available space |
| Compatibility | Oil; Grease; Air/Water; Fuel; Hydraulic Fluid |
