Attributes
| Alemite Series | reels |
|---|
Description

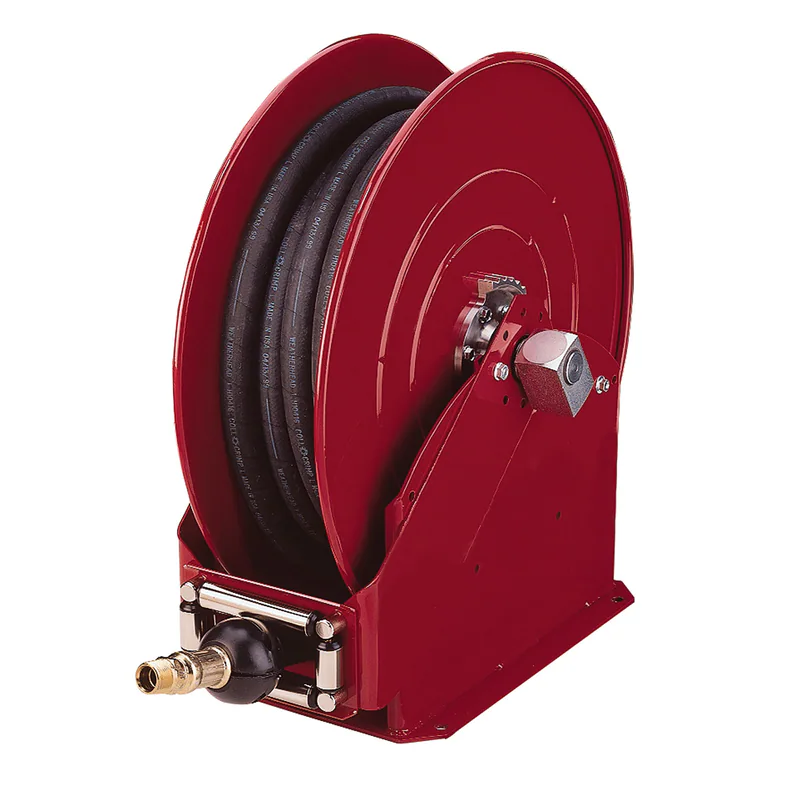

Alemite High Capacity Reels offer high volume delivery in the most extreme outdoor conditions. The high capacity flow passage reduces fill rate time, improving efficiency and helping reduce cost.
Variations (7)
8080-B
| Color | Maroon |
|---|---|
| Max Pressure | 1,500 psi (103 bar) |
| Delivery Hose | 1/2" ID x 80 ft |
| Reel Inlet | 1/2" NPTF(f) |
| Weight | 146 lb (66 kg) |
8080-H
| Color | Maroon |
|---|---|
| Max Pressure | 1,500 psi (103 bar) |
| Delivery Hose | 1/2" ID x 100 ft |
| Reel Inlet | 1/2" NPTF(f) |
| Weight | 150 lb (68 kg) |
7341
| Color | Maroon |
|---|---|
| Usage | Oil/Air/Water |
| Max. Pressure | 1,500 psi (103 bar) |
| Inlet | 1/2" NPTF(f) |
| Outlet | 1/2" NPSM(f) Swivel |
| Weight | 124 lb (56 kg) |
| Group | Bare reels |
7340
| Color | Maroon |
|---|---|
| Usage | Grease |
| Max. Pressure | 6,000 psi (413 bar) |
| Inlet | 3/8" NPTF(f) |
| Outlet | 3/8" NPSM(f)Swivel |
| Weight | 123 lb (55 kg) |
| Group | Bare reels |
7342
| Color | Maroon |
|---|---|
| Usage | Oil/Air/Water/Fuel |
| Max. Pressure | 1,000 psi (69 bar) |
| Inlet | 1" NPTF(f)) |
| Outlet | 1" NPSM(f) Swivel |
| Weight | 119 lb (54 kg) |
| Group | Bare reels |
7345 1)
| Color | Maroon |
|---|---|
| Usage | Oil/Air/Water/Fuel |
| Max. Pressure | 300 psi (21 bar) |
| Inlet | 1-1/2" NPTF(f) |
| Outlet | 1-1/4" NPTF(f) |
| Weight | 125 lb (57 kg) |
| Group | Bare reels |
7346 2)
| Color | Maroon |
|---|---|
| Usage | Oil/Air/Water/Fuel |
| Max. Pressure | 300 psi (21 bar) |
| Inlet | 1-1/2" NPTF(f) |
| Outlet | 1-1/2" NPTF(f) |
| Weight | 125 lb (57 kg) |
| Group | Bare reels |
Specifications
| Included items | Hose Reel; Delivery Hose; Hose Stop |
|---|---|
| Features | Superior Performance – Swivel and reel ball bearings reduce torque load on power spring for smooth retraction every time; Anti-Lockout Design – Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel; Corrosion Resistant – Sealed bearings prevent contamination and minimize maintenance, a critical performance factor in dirty environments. Sealed rollers eliminate contamination which can bind hose guide rollers; Easy Installation and Maintenance – Factory lubricated one piece power spring cassette makes installation and maintenance safe and easy. Outlet port swivel nut makes installing delivery hose quick and easy; Strong and Stable – Double arm design provides extra support for a larger hose during use. Four corner bolt hole pattern on outside of base provides extra stability |
| Compatibility | Oil; Grease; Air/Water; Fuel |
