Attributes
| Alemite Series | reels |
|---|
Description
Alemite Enclosed Reels are ideal for when your workplace is in view of customers and a clean appearance is expected. These reels offer looks and performance to meet the needs of your shop. Placed together in a bank, Alemite Enclosed Reels feature a track system for easy installation.
Variations (8)
8079-C
| Color | Maroon |
|---|---|
| Max Pressure | 1,500 psi (103 bar) |
| Delivery Hose | 1/2" ID x 30 ft |
| Connecting Hose | 1/2" (m) |
| Weight | 73 lb (33 kg) |
8079-D
| Color | Maroon |
|---|---|
| Max Pressure | 1,500 psi (103 bar) |
| Delivery Hose | 1/2" ID x 50 ft |
| Connecting Hose | 1/2" (m) |
| Weight | 75 lb (34 kg) |

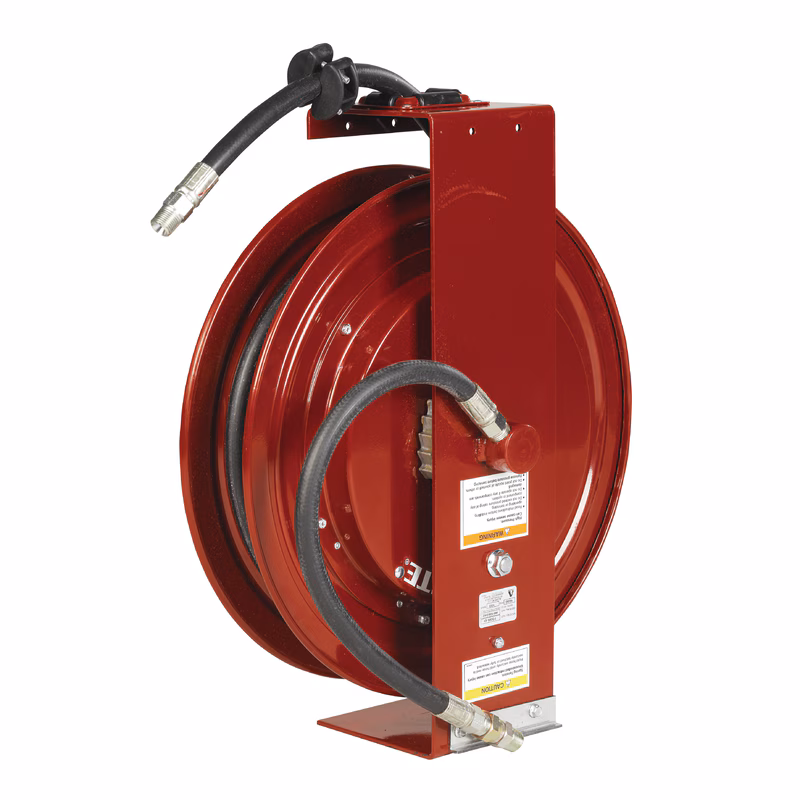

7335-D
| Color | Maroon |
|---|---|
| Usage | Oil |
| Max. Pressure | 1,500 psi (103 bar) |
| Inlet | 1/2" NPTF(f) |
| Outlet | 1/2" NPTF(f) Swivel |
| Weight | 50 lb (23 kg) |
| Group | Bare reels |
7334-D
| Color | Maroon |
|---|---|
| Usage | Grease |
| Max. Pressure | 6,000 psi (413 bar) |
| Inlet | 1/2" NPTF(f) |
| Outlet | 3/8" NPTF(f) Swivel |
| Weight | 50 lb (23 kg) |
| Group | Bare reels |
7336-D
| Color | Maroon |
|---|---|
| Usage | Air/Water |
| Max. Pressure | 300 psi (21 bar) |
| Inlet | 1/2" NPTF(f) |
| Outlet | 3/8" NPTF(f) |
| Weight | 50 lb (23 kg) |
| Group | Bare reels |

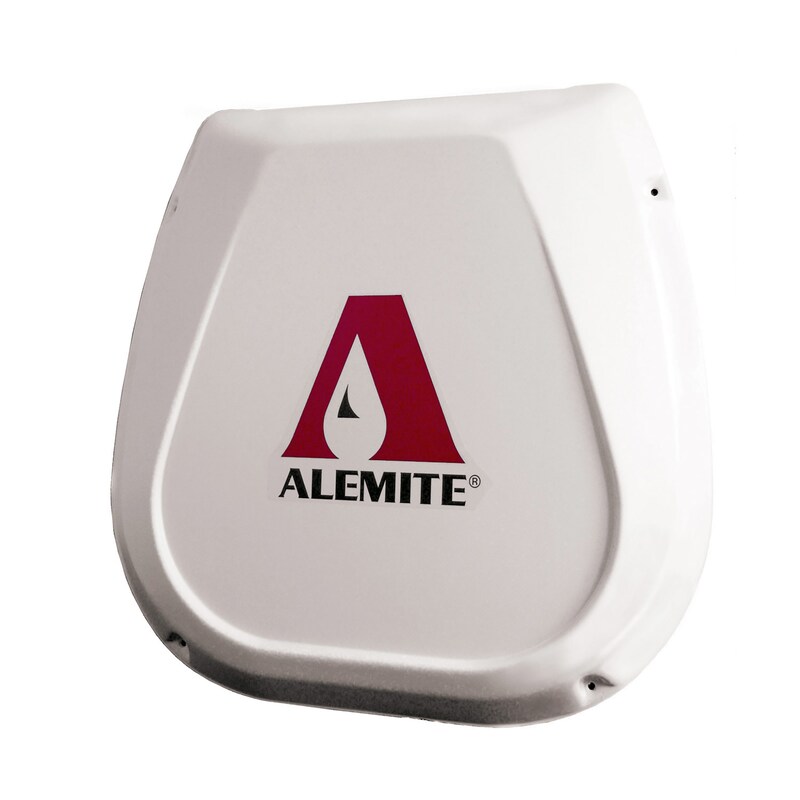

7331
| Description | Enclosure Kit for 1 enclosed hose reel |
|---|---|
| Weight | 10.5 lb (4.75 kg) |
| Group | Cabinets |
339371
| Description | End panels for 1 bank of enclosed hose reels |
|---|---|
| Weight | 5.4 lb (2.45 kg) |
| Group | Cabinets |
339368
| Description | Strut for single reel installation |
|---|---|
| Weight | 0.5 lb (0.23 kg) |
| Group | Cabinets |
Specifications
| Included items | Hose Reel; Delivery Hose; Hose Stop; Union; 24" (61 cm) Connecting Hose |
|---|---|
| Items to be purchased separately | Cabinet; End Panels |
| Features | Stain and impact resistant ABS polymer side panels; Attractive casing for enhanced professional look; Track system for quick and easy installation; Roller guides attached to the hose reel for convenient servicing |
| Compatibility | Oil; Grease; Air/Water |
