Attributes
| Alemite Series | oil-mist-systems |
|---|
Description

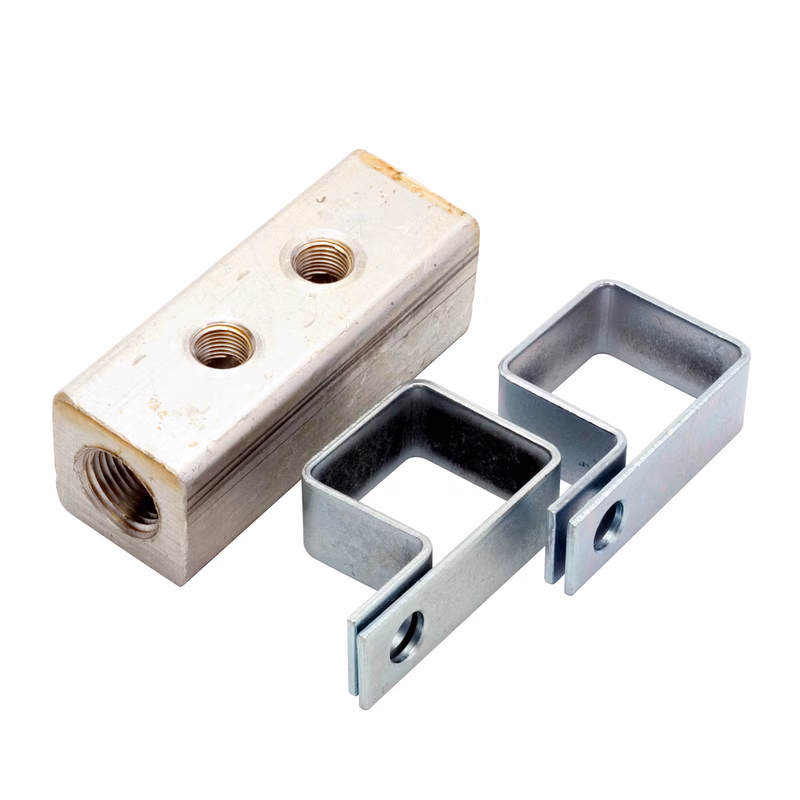

Designed to provide multiple threaded outlets from one mist header drop line. Two mounting clamps included with all aluminum manifold blocks.
Variations (9)

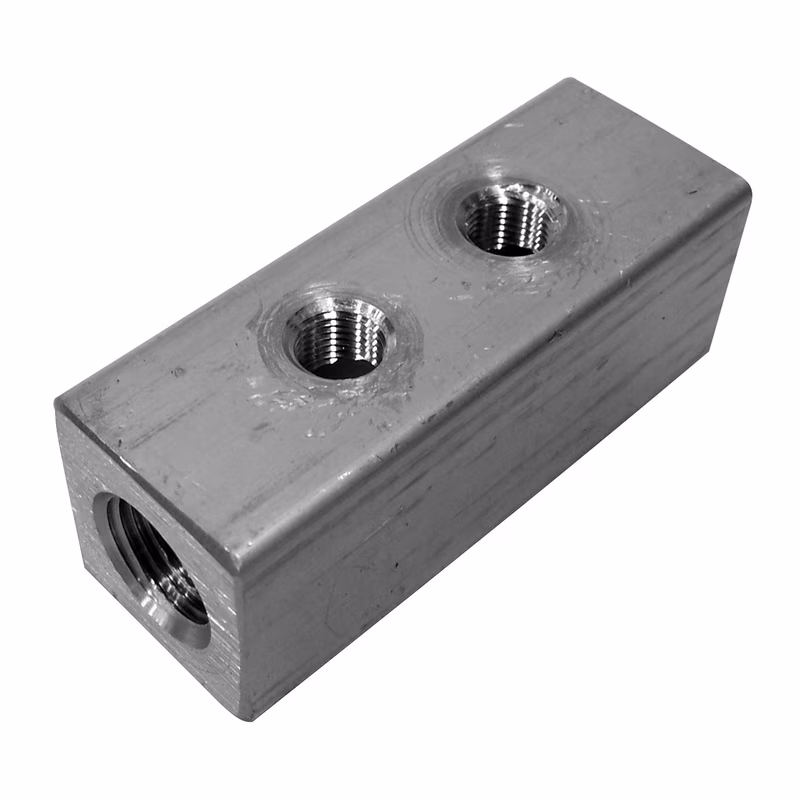

381192-2
| Material | Aluminum |
|---|---|
| Size | 1-1/8" Square |
| End ports | 3/8" NPT(f) / 3/8" NPT(f) |
| Outlet ports 1/8" NPT(f) | 2 |
| Location | All on one side |
| Length | 3" (76 mm) |
381193-2
| Material | Aluminum |
|---|---|
| Size | 1-1/8" Square |
| End ports | 3/8" NPT(f) / 3/8" NPT(f) |
| Outlet ports 1/8" NPT(f) | 3 |
| Location | All on one side |
| Length | 4" (102 mm) |
381173-2
| Material | Aluminum |
|---|---|
| Size | 1-1/8" Square |
| End ports | 3/8" NPT(f) / 3/8" NPT(f) |
| Outlet ports 1/8" NPT(f) | 4 |
| Location | Two on one side, two on opposite side |
| Length | 3" (76 mm) |
381174-2
| Material | Aluminum |
|---|---|
| Size | 1-1/8" Square |
| End ports | 3/8" NPT(f) / 3/8" NPT(f) |
| Outlet ports 1/8" NPT(f) | 8 |
| Location | Four on one side, four on opposite side |
| Length | 5" (127 mm) |

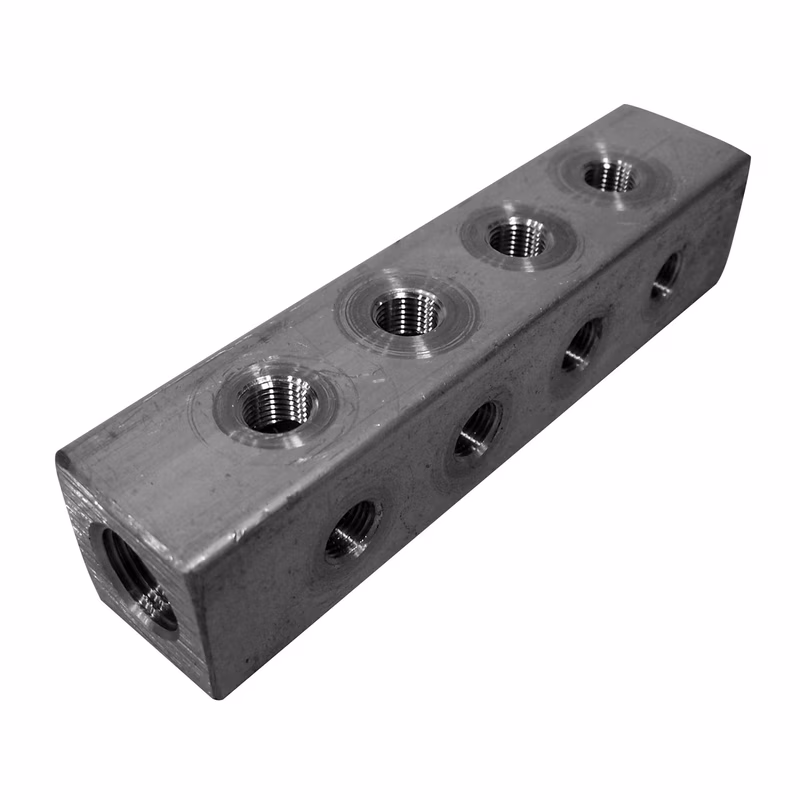

381190-2
| Material | Aluminum |
|---|---|
| Size | 1-1/8" Square |
| End ports | 3/8" NPT(f) / 3/8" NPT(f) |
| Outlet ports 1/8" NPT(f) | 8 |
| Location | Four on one side, four on adjacent side |
| Length | 5" (127 mm) |
388037
| Material | 304 SS |
|---|---|
| Size | 1-1/2" Hex |
| End ports | 3/4" NPT(f) / 1/2" NPT(f) |
| Outlet ports 1/8" NPT(f) | 6 |
| Location | Two on each opposite flat |
| Length | 3" (76 mm) |
48925
| Description | End Port Pipe Plug 3/8" NPT(m) |
|---|---|
| Group | Manifold Block Plugs |
1480
| Description | Outlet Port Pipe Plug 1/8" NPT(m) |
|---|---|
| Group | Manifold Block Plugs |
388236
| Description | Includes stainless steel manifold block ( 388037 ), 4" long acrylic sight glass ( 388237 ), stainless steel push-button drain valve, stainless steel adapters and 3/8" OD stainless steel tube fitting. |
|---|---|
| Group | Manifold Assembly |
