Spray Nozzles Fittings

Scraped SKU: skf-spray-nozzle-fittings 2026-06-13 07:52:24

Attributes

Alemite Seriesoil-mist-systems

Description

Like spray fittings, spray nozzle fittings convert mist into a wetter spray. Whenever the required mist flow exceeds the capacity of the maximum spray fitting size, spray nozzle fittings are used. Spray nozzle fittings contain from 1 to 14 flow holes. Each hole passes the same amount of mist as the largest spray fitting. One-end threaded fittings are usually installed from inside a very large bearing housing and have a tightening slot on the opposite end. Fittings are brass.

Variations (14)

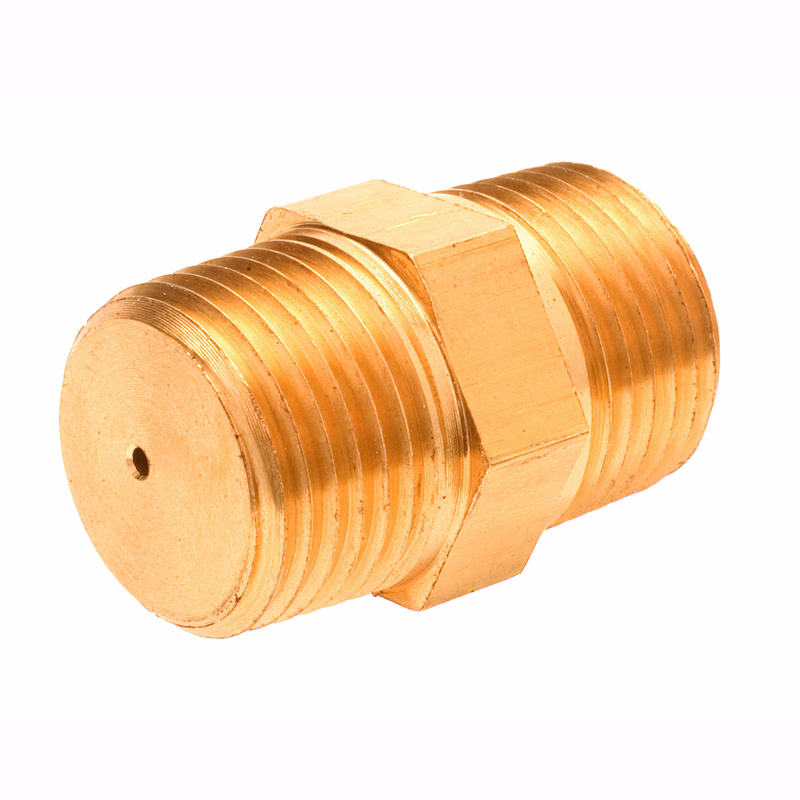

326370-1

Both ends threaded383588-1 3)
Number of orifices1
Total flow area (square inch)0.00352
CFM @ 20 in. H 2 00.3

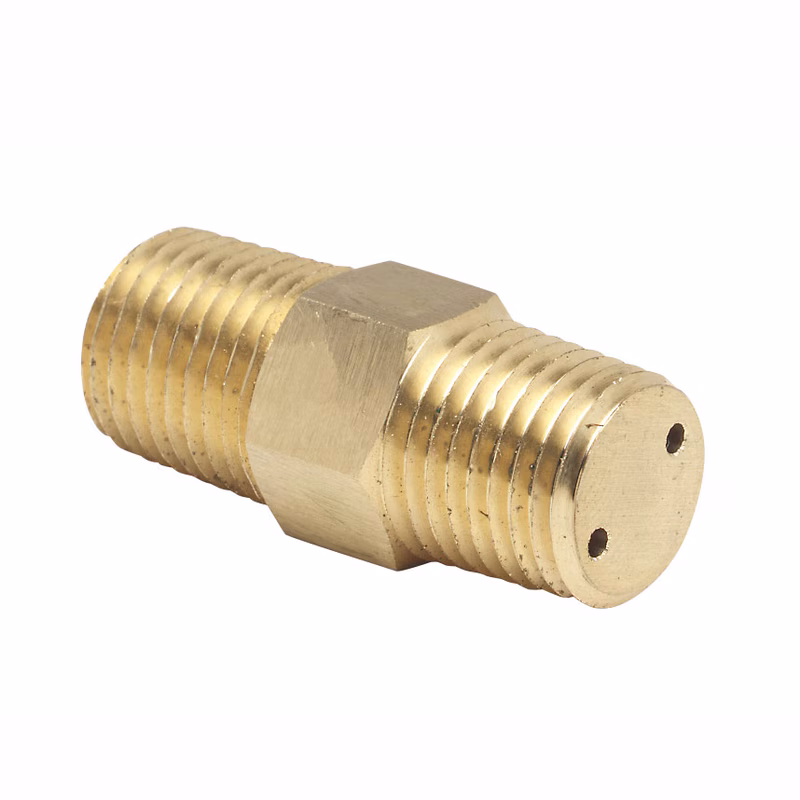

326370-2

Both ends threaded383588-2 3)
Number of orifices2
Total flow area (square inch)0.00704
CFM @ 20 in. H 2 00.6

326370-3

Both ends threaded383588-3 3)
Number of orifices3
Total flow area (square inch)0.01056
CFM @ 20 in. H 2 00.9

326370-4

Both ends threaded383588-4 3)
Number of orifices4
Total flow area (square inch)0.01408
CFM @ 20 in. H 2 01.2

326370-5

Both ends threaded383588-5 3)
Number of orifices5
Total flow area (square inch)0.01760
CFM @ 20 in. H 2 01.5

326370-6

Both ends threaded383588-6 3)
Number of orifices6
Total flow area (square inch)0.02112
CFM @ 20 in. H 2 01.8

326370-7

Both ends threaded383588-7 3)
Number of orifices7
Total flow area (square inch)0.02464
CFM @ 20 in. H 2 02.2

326370-8

Both ends threaded384280-8
Number of orifices8
Total flow area (square inch)0.02816
CFM @ 20 in. H 2 02.5

326370-9

Both ends threaded384280-9
Number of orifices9
Total flow area (square inch)0.03168
CFM @ 20 in. H 2 02.8

326370-10

Both ends threaded384280-10
Number of orifices10
Total flow area (square inch)0.03520
CFM @ 20 in. H 2 03.1

383617-11

Number of orifices11
Total flow area (square inch)0.03872
CFM @ 20 in. H 2 03.4

383617-12

Number of orifices12
Total flow area (square inch)0.04224
CFM @ 20 in. H 2 03.7

383617-13

Number of orifices13
Total flow area (square inch)0.04576
CFM @ 20 in. H 2 04.0

383617-14

Number of orifices14
Total flow area (square inch)0.04928
CFM @ 20 in. H 2 04.3
