Attributes
| Alemite Series | oil-mist-systems |
|---|
Description

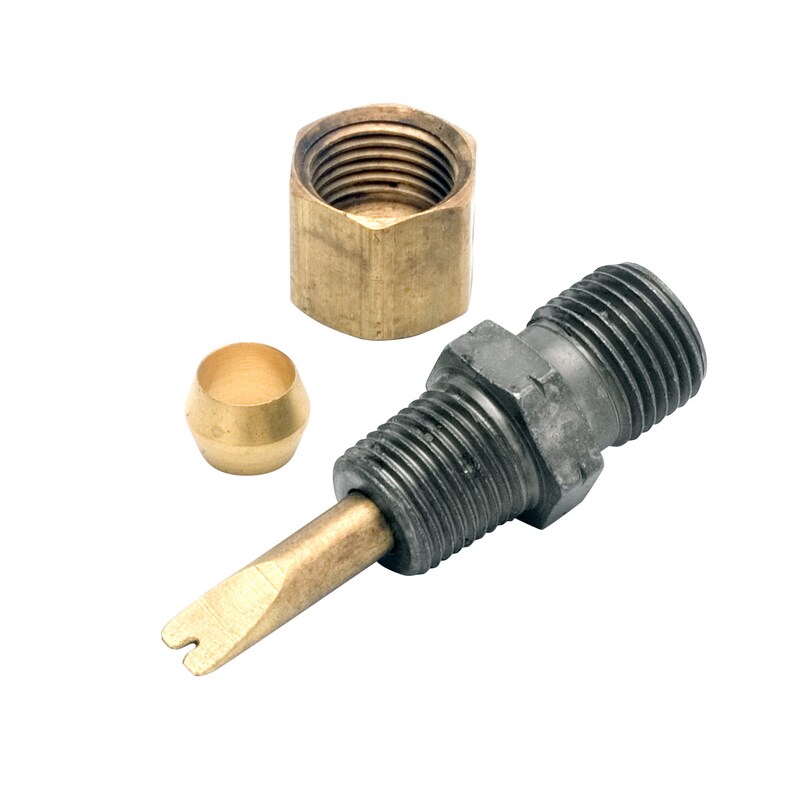

Compared with mist fittings, spray fittings convert a greater percentage of mist into a wetter spray. Primarily used to lubricate chain, gear teeth and slow-moving equipment. Can also be used to apply a thin oil film on surfaces. Chisel-point tip should be located within 1/2" to 1" of surface to be lubricated. Fittings have black zinc finish.
Variations (3)
381283-3
| Inlet 1/4" OD tube fitting | 381288-3 |
|---|---|
| Orifice | 0.042" |
| CFM @ 20 in. H 2 0 | 0.07 |
381283-5
| Inlet 1/4" OD tube fitting | 381288-5 |
|---|---|
| Orifice | 0.055" |
| CFM @ 20 in. H 2 0 | 0.16 |
381283-8
| Inlet 1/4" OD tube fitting | 381288-8 |
|---|---|
| Orifice | 0.067" |
| CFM @ 20 in. H 2 0 | 0.30 |
