Attributes
| Alemite Series | oil-mist-systems |
|---|
Description

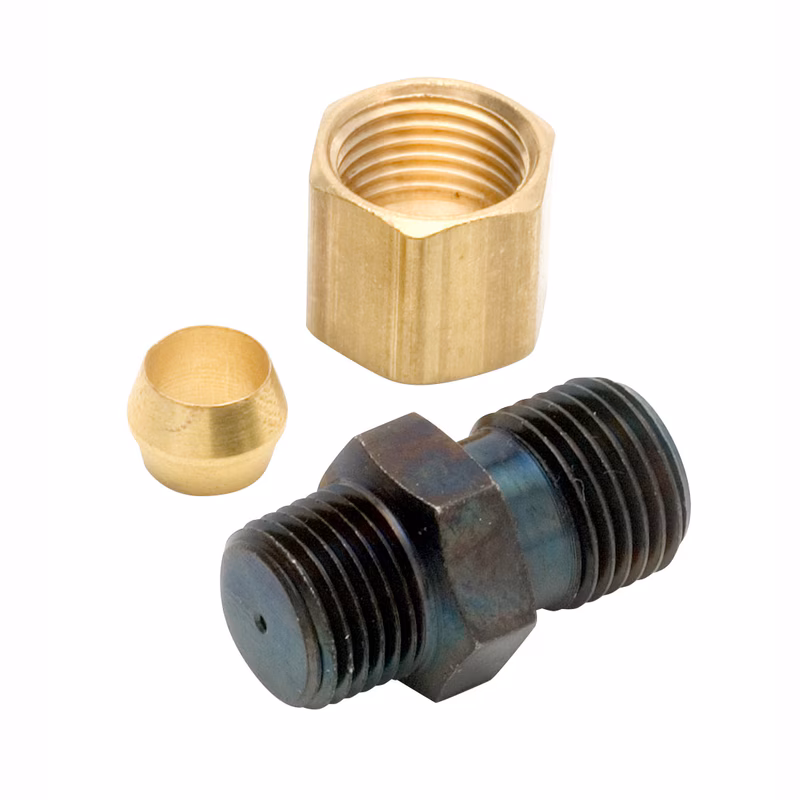

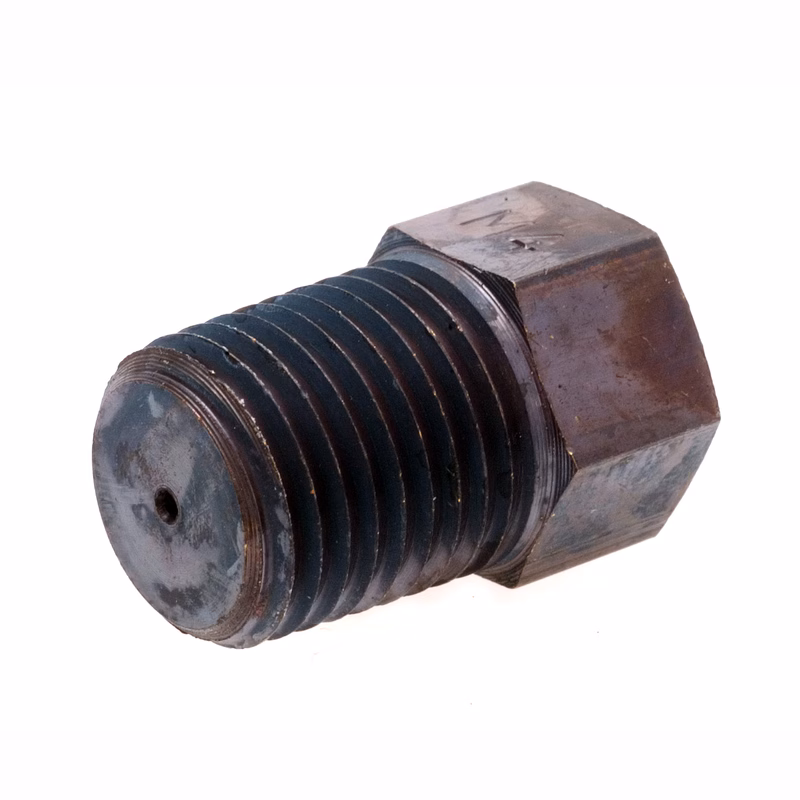

Primarily used for enclosed bearing housings and rely on the bearing velocity to provide the reclassifying function. They are used on both pure mist and purge mist applications. Brass fittings have black zinc finish.
Variations (6)
380791-2
| Inlet 1/4" OD tube fitting | 381290-2 |
|---|---|
| Orifice | 0.032" |
| CFM @ 20 in. H 2 0 | 0.08 |
380791-4
| Inlet 1/4" OD tube fitting | 381290-4 |
|---|---|
| Orifice | 0.045" |
| CFM @ 20 in. H 2 0 | 0.16 |
380791-6
| Inlet 1/4" OD tube fitting | 381290-6 |
|---|---|
| Orifice | 0.055" |
| CFM @ 20 in. H 2 0 | 0.24 |
381303-8
| Inlet 1/4" OD tube fitting | 381290-8 |
|---|---|
| Orifice | 0.068" |
| CFM @ 20 in. H 2 0 | 0.38 |
380791-10
| Inlet 1/4" OD tube fitting | 381290-10 |
|---|---|
| Orifice | 0.078" |
| CFM @ 20 in. H 2 0 | 0.49 |
380791-16
| Inlet 1/4" OD tube fitting | 381290-16 |
|---|---|
| Orifice | 0.089" |
| CFM @ 20 in. H 2 0 | 0.68 |
