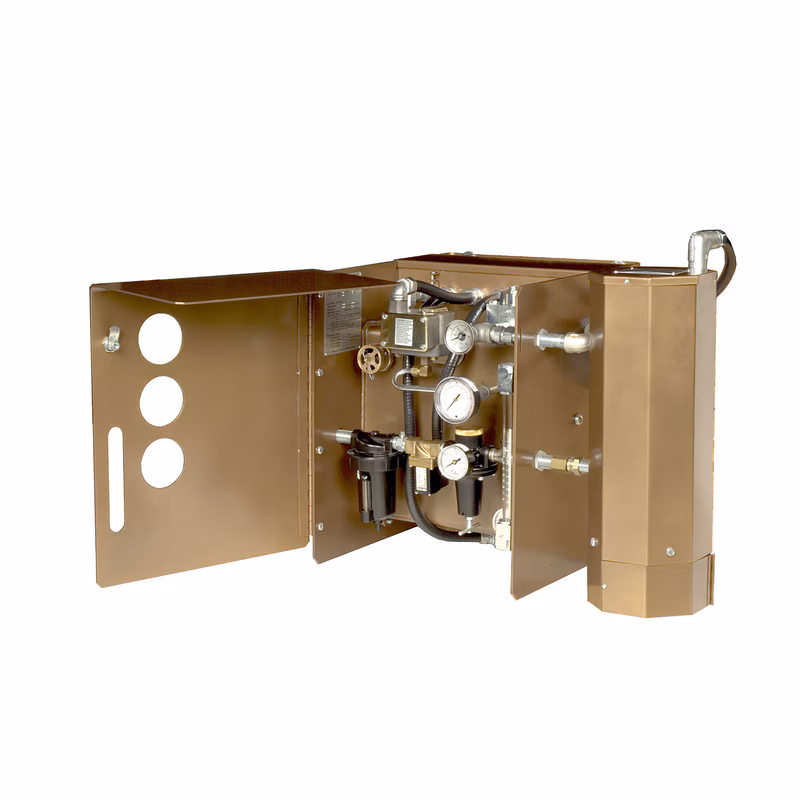

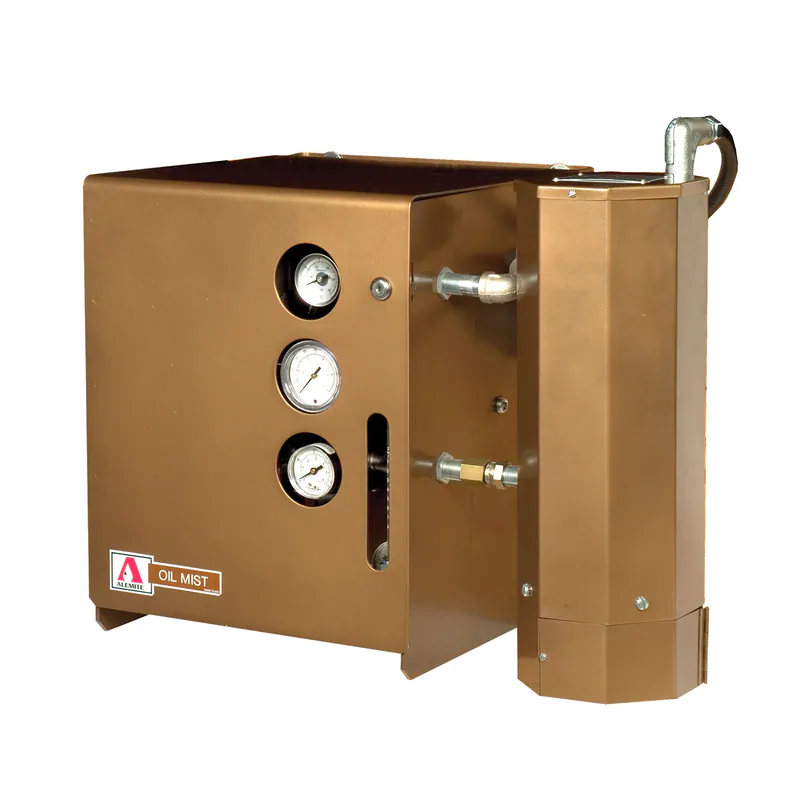

High Capacity Oil-Mist Generator With Heater Models 373x-RW6 / 373x-BW6

Scraped SKU: skf-high-capacity-oil-mist-generators-with-heater 2026-06-13 07:52:24

Attributes

Alemite Seriesoil-mist-systems

Description

Alemite Oil-Mist Generators provide lubrication for multiple lubrication points or machines. The lubricators in the 372x provide a flow range up to 73 CFM. Voltage solenoid and oil heater with 120 or 240 V AC, air heater with 240 V AC.

Variations (8)

3730-RW6

CFM nominal13
Flow range5.2 - 21 CFM
No. of Nozzles1
Mist outlet2-1/2" NPTF(f)
Voltage solenoid and oil heater120 V AC, 60/50 HZ
Voltage air heater240 V AC, 60/50 HZ

3731-RW6

CFM nominal21
Flow range7.5 - 33 CFM
No. of Nozzles1
Mist outlet2-1/2" NPTF(f)
Voltage solenoid and oil heater120 V AC, 60/50 HZ
Voltage air heater240 V AC, 60/50 HZ

3732-RW6

CFM nominal41
Flow range15 - 45 CFM
No. of Nozzles2
Mist outlet2-1/2" NPTF(f)
Voltage solenoid and oil heater120 V AC, 60/50 HZ
Voltage air heater240 V AC, 60/50 HZ

3736-RW6

CFM nominal65
Flow range31 - 73 CFM
No. of Nozzles2
Mist outlet3" NPTF(f)
Voltage solenoid and oil heater120 V AC, 60/50 HZ
Voltage air heater240 V AC, 60/50 HZ

3730-BW6

CFM nominal13
Flow range5.2 - 21 CFM
No. of Nozzles1
Mist outlet2-1/2" NPTF(f)
Voltage solenoid and oil heater240 V AC, 60/50 HZ
Voltage air heater240 V AC, 60/50 HZ

3731-BW6

CFM nominal21
Flow range7.5 - 33 CFM
No. of Nozzles1
Mist outlet2-1/2" NPTF(f)
Voltage solenoid and oil heater240 V AC, 60/50 HZ
Voltage air heater240 V AC, 60/50 HZ

3732-BW6

CFM nominal41
Flow range15 - 45 CFM
No. of Nozzles2
Mist outlet2-1/2" NPTF(f)
Voltage solenoid and oil heater240 V AC, 60/50 HZ
Voltage air heater240 V AC, 60/50 HZ

3736-BW6

CFM nominal65
Flow range31 - 73 CFM
No. of Nozzles2
Mist outlet3" NPTF(f)
Voltage solenoid and oil heater240 V AC, 60/50 HZ
Voltage air heater240 V AC, 60/50 HZ

Specifications

Accessories
Alarm annunciator (387275) - Required to provide visual/audible alarm signals; Automatic oil refill kit (385789) - Includes 3-float float switch and in-line oil filter - Refill kit also requires oil solenoid valve 115 V (383647-1) 230 V (387449); Automatic refill pump package (388415) - Includes 1:1 ratio air-driven pump with accessories including filter/regulator, 7 ft long hose and valves designed for use with 55 gallon oil drums.
FeaturesThermo-Aire® air heater; 3.6 gallon oil reservoir; Low oil level float switch; Mist pressure switch (high & low); Oil level sight glass; Air pressure gauge; Mist pressure gauge; Oil temperature gauge; Air temperature gauge
CompatibilityOil mist (aerosol)
