Attributes
| Alemite Series | oil-mist-systems |
|---|
Description

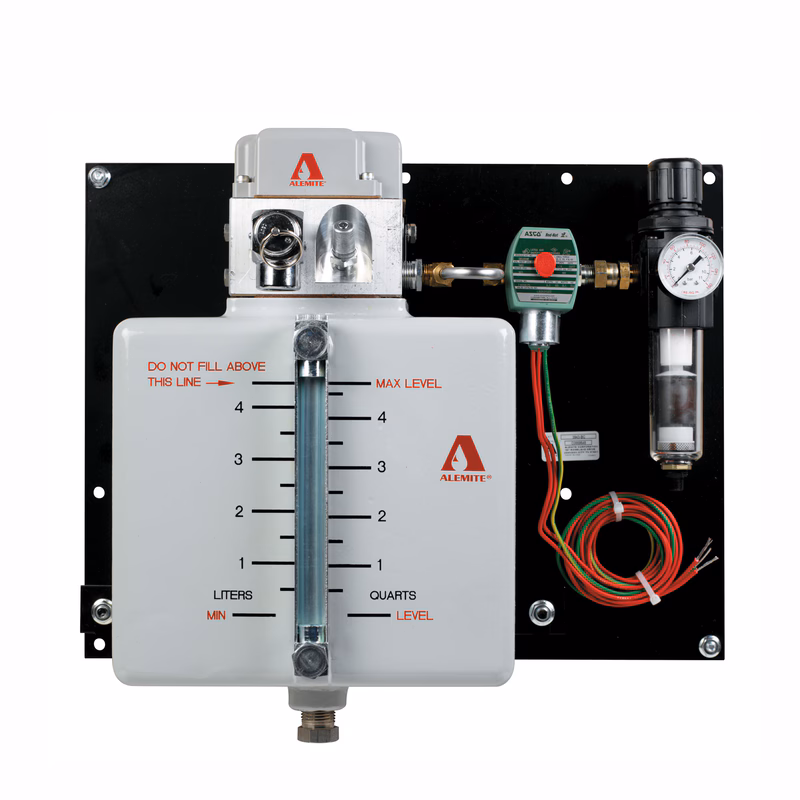

Alemite Oil-Mist Generators provide lubrication for multiple lubrication points or machines. The lubricators in the 3943 series are either basic models or plate mounted. They provide a flow range of 0.8 to 3.1 CFM.
Variations (6)
3943-B
| CFM nominal | 1 |
|---|---|
| Flow range | 0.8 - 3.1 CFM |
| Mounting plate | - |
| Oil heater | - |
| Oil level switch | 120 V AC |
| Filter/ regulator | Yes |
| Air solenoid value | - |
3943-BC
| CFM nominal | 1 |
|---|---|
| Flow range | 0.8 - 3.1 CFM |
| Mounting plate | Yes |
| Oil heater | - |
| Oil level switch | 120 V AC |
| Filter/ regulator | Yes |
| Air solenoid value | 120 VAC |
3943-BD
| CFM nominal | 1 |
|---|---|
| Flow range | 0.8 - 3.1 CFM |
| Mounting plate | Yes |
| Oil heater | - |
| Oil level switch | 220 V AC |
| Filter/ regulator | Yes |
| Air solenoid value | 220 V AC |
3943-CB
| CFM nominal | 1 |
|---|---|
| Flow range | 0.8 - 3.1 CFM |
| Mounting plate | Yes |
| Oil heater | 120 VAC |
| Oil level switch | 120 V AC |
| Filter/ regulator | Yes |
| Air solenoid value | - |
3943-CC
| CFM nominal | 1 |
|---|---|
| Flow range | 0.8 - 3.1 CFM |
| Mounting plate | Yes |
| Oil heater | 120 VAC |
| Oil level switch | 120 V AC |
| Filter/ regulator | Yes |
| Air solenoid value | 120 VAC |
3943-DD
| CFM nominal | 1 |
|---|---|
| Flow range | 0.8 - 3.1 CFM |
| Mounting plate | Yes |
| Oil heater | 220 VAC |
| Oil level switch | 220 V AC |
| Filter/ regulator | Yes |
| Air solenoid value | 220 VAC |
Specifications
| Included items | Float switch (inside the reservoir) provides signal when oil replenishment is required; Filter/regulator adjusts mist generator performance; includes automatic water drain; Air solenoid value allows automatic on-off operation when wired to machine driver or control |
|---|---|
| Features | Relief value provides over-pressure protection; Refill loader fitting assures contamination-free oil replenishment – requires manual refill pump (388034); Oil level sight glass provides visual inspection of oil level; Cast aluminum 1 gallon reservoir baked polyester powder coated for decades of corrosion protection |
| Compatibility | Oil mist (aerosol) |
