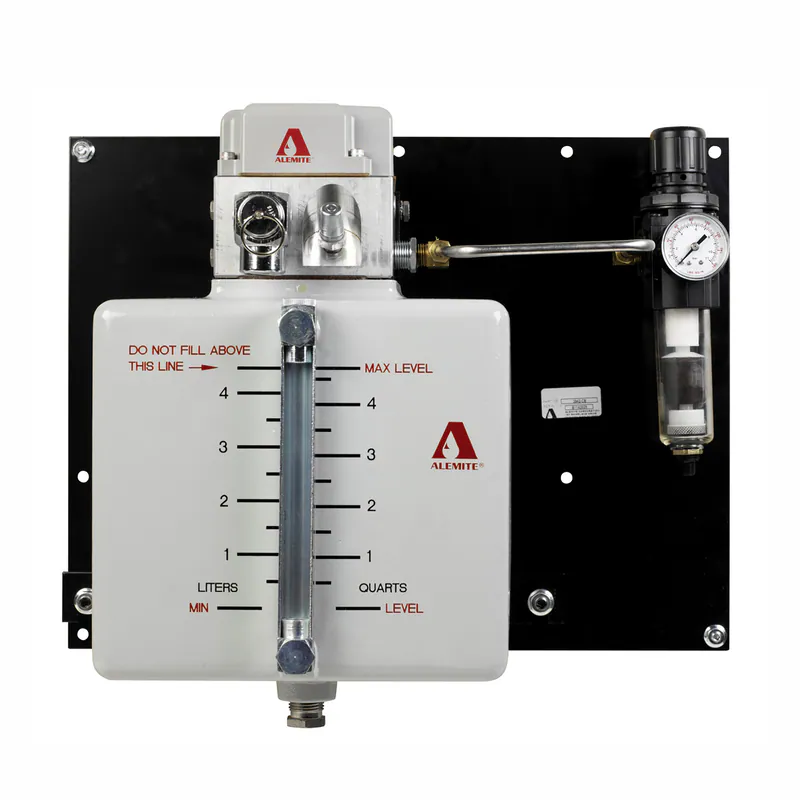

Oil-Mist Generator Model 3942

Scraped SKU: skf-3942 2026-06-13 07:52:24

Attributes

Alemite Seriesoil-mist-systems

Description

Alemite Oil-Mist Generators provide lubrication for multiple lubrication points or machines. The lubricators in the 3942 series are either basic models or plate mounted. They provide a flow range of 0.3 to 1.4 CFM.

Variations (5)

3942-BC

CFM nominal1
Flow range0.3 - 1.4 CFM
Mounting plateYes
Oil heater-
Oil level switch120 V AC
Filter/ regulatorYes
Air solenoid value120 V AC

3942-BD

CFM nominal1
Flow range0.3 - 1.4 CFM
Mounting plateYes
Oil heater-
Oil level switch220 V AC
Filter/ regulatorYes
Air solenoid value220 VAC

3942-CB

CFM nominal1
Flow range0.3 - 1.4 CFM
Mounting plateYes
Oil heater120 VAC
Oil level switch120 V AC
Filter/ regulatorYes
Air solenoid value-

3942-CC

CFM nominal1
Flow range0.3 - 1.4 CFM
Mounting plateYes
Oil heater120 VAC
Oil level switch120 V AC
Filter/ regulatorYes
Air solenoid value120 VAC

3942-DD

CFM nominal1
Flow range0.3 - 1.4 CFM
Mounting plateYes
Oil heater220 VAC
Oil level switch220 V AC
Filter/ regulatorYes
Air solenoid value220 VAC

Specifications

Included items
Float switch (inside the reservoir) provides signal when oil replenishment is required; Filter/regulator adjusts mist generator performance; includes automatic water drain; Air solenoid value allows automatic on-off operation when wired to machine driver or control
Features
Relief value provides over-pressure protection; Refill loader fitting assures contamination-free oil replenishment – requires manual refill pump (388034); Oil level sight glass provides visual inspection of oil level; Cast aluminum 1 gallon reservoir baked polyester powder coated for decades of corrosion protection
CompatibilityOil mist (aerosol)
