Attributes
| Alemite Series | grease-guns |
|---|
Description
## Convenient lubrication tool provides high-end performance and reliability for industrial applications

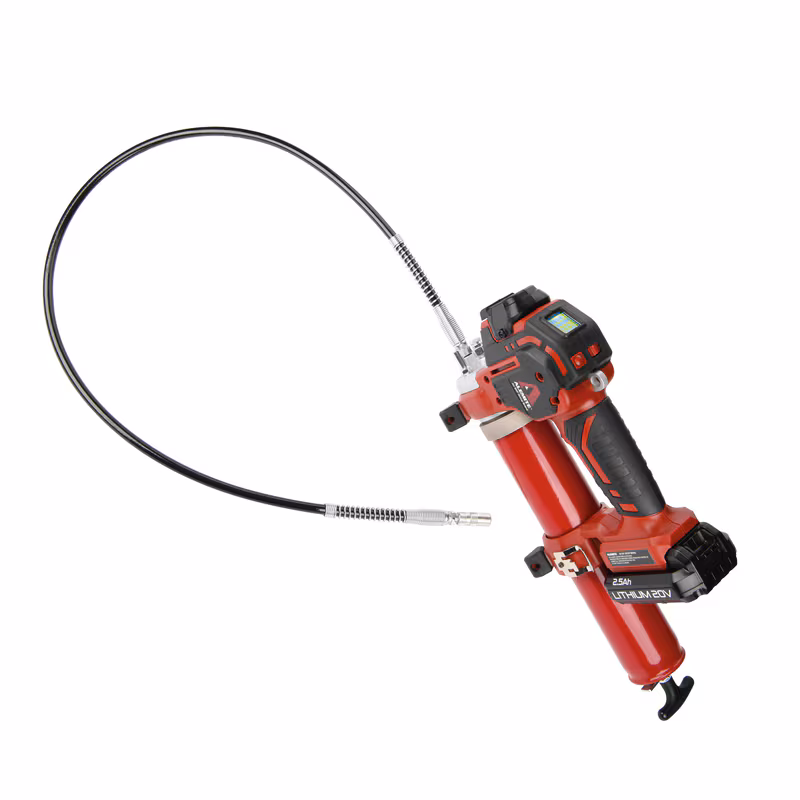

The convenient Alemite line of new 20V Li-ion grease guns is designed to professionally support all your manual lubrication tasks. The tool features a balanced, ergonomic design and weight for less physical strain. Tube adapters provide high compatibility to locally used grease cylinders. Its two-speed, dual-output capability lets you adjust for low- or high-volume lubrication points, all with one grease gun. It delivers 6 oz/min on high and 4 oz/min on low. The tool has a convenient, built-in LCD screen providing real-time information. Pre-warning light signals allow you to take early action. The LCD display will be illuminated during stall conditions with a red backlight. The display shows exactly how much grease you have left in the tube and starts flashing when a low grease condition occurs. Red flashing display alerts you if prime is lost for any reason or the gun runs out of grease.
Variations (19)
598-B
| Charger Input | 120V AC / 60 Hz |
|---|---|
| Battery | 20V (2x) 2.5mAh |
| Type of grease cylinder | Standard metal |
| Peak Pressure | 10,000 psi, 690 bar |
| Operating Pressure | 6,000 psi, 413 bar |
| Flow Rate (high and low speed) | 6.0 oz/min, 170 g/min 4.0 oz/min, 113 g/min |
| Weight | 7.2 lb, 3.25 kg |
598CRL-B
| Charger Input | 120V AC / 60 Hz |
|---|---|
| Battery | 20V (2x) 2.5mAh |

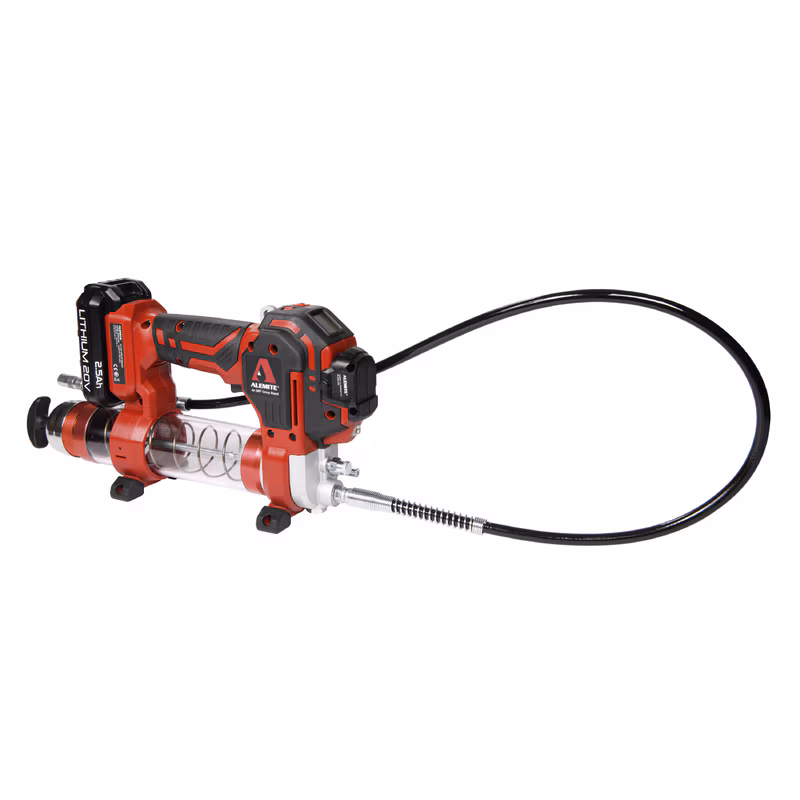

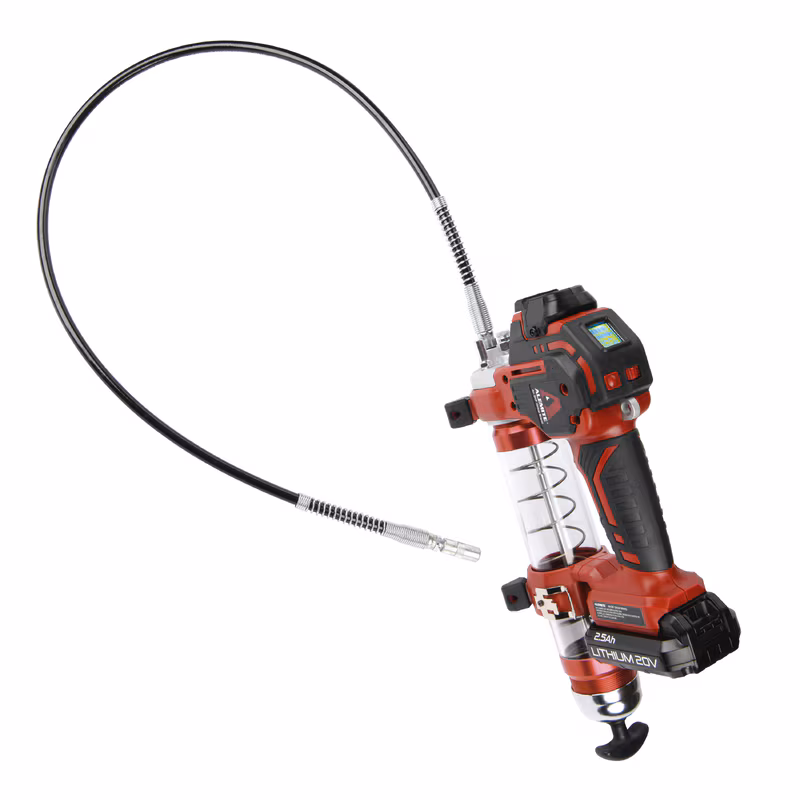

| Type of grease cylinder | Clear polycarbonate |
599-B
| Charger Input | 120V AC / 60 Hz |
|---|---|
| Battery | 20V (2x) 4.0mAh |
| Type of grease cylinder | Standard metal |
599-F
| Charger Input | 230V AC / 50 - 60 Hz |
|---|---|
| Battery | 20V (1x) 2.5mAh (1x) 4.0mAh |
| Type of grease cylinder | Australia tube with adapter |
| Peak Pressure | 10,000 psi, 690 bar |
| Operating Pressure | 6,000 psi, 413 bar |
| Flow Rate (high and low speed) | 6.0 oz/min, 170 g/min 4.0 oz/min, 113 g/min |
| Weight | 8.5 lb, 3.9 kg |
343291
| Description | 20V Li-Ion battery, 20V input voltage, 2.5Ah |
|---|---|
| Remarks | For use with 20V Li-Ion 596/597 Series |
| Group | Batteries and chargers |
343521
| Description | 20V Li-Ion battery, 20V input voltage, 4.0Ah |
|---|---|
| Remarks | For use with 20V Li-Ion 596/597 Series |
| Group | Batteries and chargers |
343289
| Description | 14.4V and 20V Li-Ion Mobile battery charger, 12V-24VDC / 60 Hz |
|---|---|
| Remarks | For use with 14.4V and 20V Li-Ion 586, 596 & 597 Series |
| Group | Batteries and chargers |
343500
| Description | 14.4V and 20V Li-Ion battery charger, 120VAC / 60 Hz (NAM) |
|---|---|
| Remarks | For use with 14.4V and 20V Li-Ion 586, 596 & 597 Series |
| Group | Batteries and chargers |
343501
| Description | 14.4V and 20V Li-Ion battery charger, 220VAC / 50-60 Hz (Europe) |
|---|---|
| Remarks | For use with 14.4V and 20V Li-Ion 586, 596 & 597 Series |
| Group | Batteries and chargers |
343641
| Description | High-pressure hose assembly |
|---|---|
| Remarks | 48” (122 cm) length for grease |
| Group | Accessories |
343632
| Description | Clear tube barrel |
|---|---|
| Remarks | Heavy-Duty, High-strength polycarbonate body Aircraft aluminum endcaps For more details, see product page |
| Group | Accessories |
3530
| Description | Grease meter |
|---|---|
| Remarks | Adapter 340062 required For more details see product page |
| Group | Accessories |
339812
| Description | Carrying strap |
|---|---|
| Remarks | Reduces fatigue, allows easy storage |
| Group | Accessories |
340067
| Description | 36" (90 cm) Hose replacement |
|---|---|
| Remarks | 10,000 psi (690 bar) working pressure, with spring guards |
| Group | Accessories |
340338
| Description | Relief valve |
|---|---|
| Remarks | Relieves pressure to ease coupler removal from fitting |
| Group | Accessories |
343170
| Description | Flashlight (LED) with clip |
|---|---|
| Remarks | For use with any cordless grease gun |
| Group | Accessories |
308730
| Description | Grease coupler replacement |
|---|---|
| Remarks | 10,000 psi ( 690 bar ) maximum pressure |
| Group | Accessories |
322610
| Description | Bulk loader fitting |
|---|---|
| Remarks | For use with 596 & 597 Series |
| Group | Accessories |
F331035
| Description | Grease gun holder |
|---|---|
| Remarks | For wall mounting professional and standard series grease guns |
| Group | Accessories |
Specifications
| Included items | (2x) 20V Battery; *; 20V Charger; *; Heavy-Duty Carrying Case; Shoulder Strap; Service manual |
|---|---|
| Features | Maximum peak pressure 10,000 psi (690 bar); Maximum operating pressure 6,000 psi (413 bar); Output on high speed 6 oz/min (170 g/min); Output on low speed 4 oz/min (113 g/min); 48" hose; 4-point stand-up design; LCD display; LED working light; Bulk filler fitting and vent valve; Shoulder strap |
| BENEFITS | Convenient design makes job more easy to do; 2-speed, dual-output design allows adjust for low- or high-volume lubrication points; Clear-tube option provides confidence the right grease is in use; Provides high-end performance |
