Attributes
| Alemite Series | grease-guns |
|---|
Description
The 20-Volt, Lithium-Ion Grease Gun for maintenance professionals features built-in intelligence.

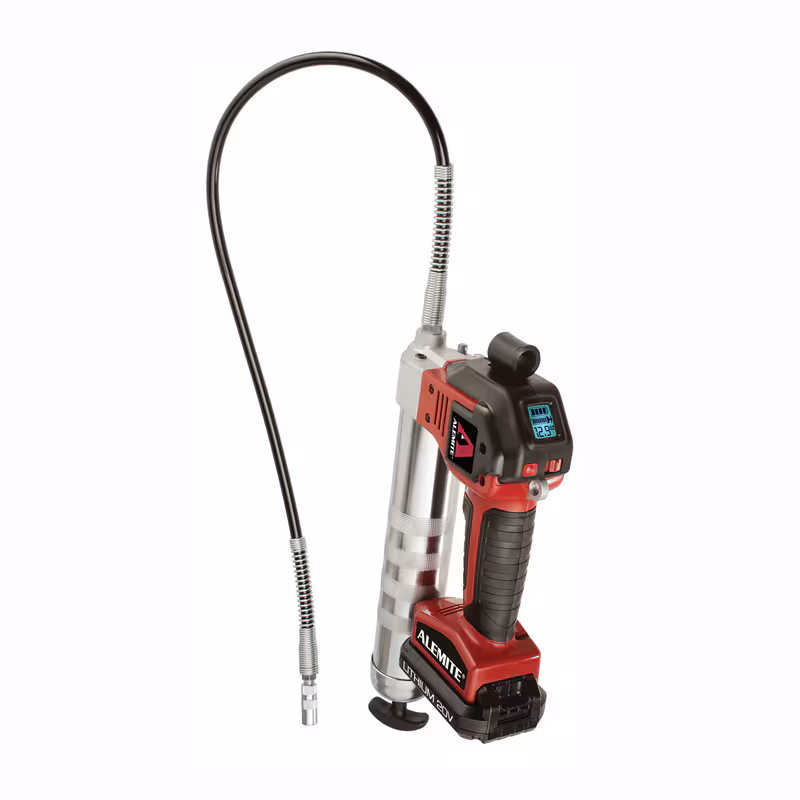

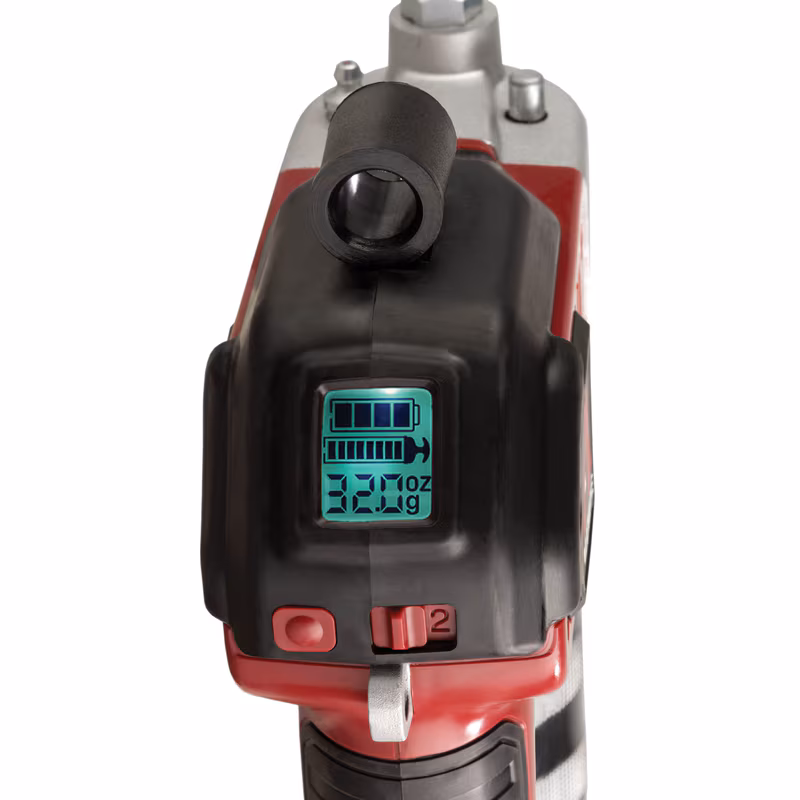

The Model 596 has a multi-function, liquid crystal display (LCD) that indicates cartridge level, battery charge level and grease dispensed. The grease gun alerts the operator of a stall condition or loss of prime. With maximum pressure of 10,000 psi, the two-speed grease gun delivers up to 24 grease cartridges per battery charge.

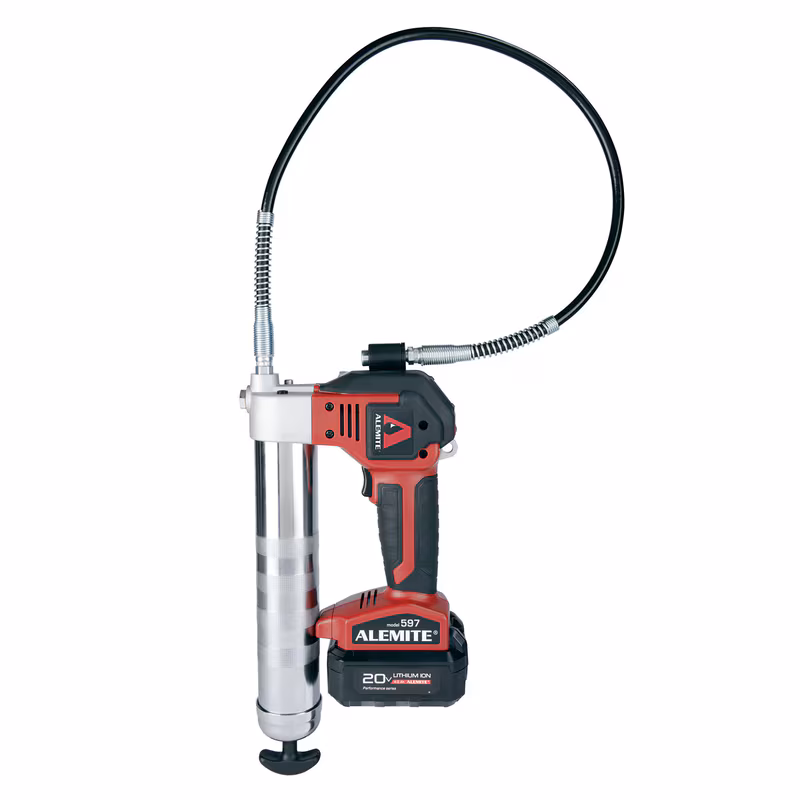

The 597 Series 20-Volt Lithium-Ion Grease Gun improves upon the 596 Series by offering a 4.0 Ah high-capacity battery. Delivering longer run time and extended battery life between charges, this grease gun provides increased productivity and operator convenience.The Model 597 grease gun delivers up to 40 cartridges of grease per charge. Its multi-function LCD offers real-time information including a grease meter, grease-level gauge and battery-capacity gauge.
Variations (15)
596-A1
| Charger Input | 110 V/60 Hz |
|---|---|
| Battery | 20 V 2500 mAh |
| Pressure | 10,000 psi, 690 bar |
| Flow Rate | 6.0 oz/min, 170 g/min 4.0 oz/min, 113 g/min |
| Weight | 6.3 lb, 2.9 kg |
597-A
| Charger Input | 110 V/60 Hz |
|---|---|
| Battery | 20 V 4000 mAh |
| Pressure | 10,000 psi, 690 bar |
| Flow Rate | 6.0 oz/min, 170 g/min 4.0 oz/min, 113 g/min |
| Weight | 7.0 lb, 3.2 kg |
343291
| Description | 20V Li-Ion battery, 20V input voltage, 2.5Ah |
|---|---|
| Remarks | For use with 20V Li-Ion 596/597 Series |
| Group | Batteries and chargers |
343521
| Description | 20V Li-Ion battery, 20V input voltage, 4.0Ah |
|---|---|
| Remarks | For use with 20V Li-Ion 596/597 Series |
| Group | Batteries and chargers |
343289
| Description | 14.4V and 20V Li-Ion Mobile battery charger, 12V-24VDC / 60 Hz |
|---|---|
| Remarks | For use with 14.4V and 20V Li-Ion 586, 596 & 597 Series |
| Group | Batteries and chargers |
343500
| Description | 14.4V and 20V Li-Ion battery charger, 120VAC / 60 Hz (NAM) |
|---|---|
| Remarks | For use with 14.4V and 20V Li-Ion 586, 596 & 597 Series |
| Group | Batteries and chargers |
343501
| Description | 14.4V and 20V Li-Ion battery charger, 220VAC / 50-60 Hz (Europe) |
|---|---|
| Remarks | For use with 14.4V and 20V Li-Ion 586, 596 & 597 Series |
| Group | Batteries and chargers |
3530
| Description | Grease meter |
|---|---|
| Remarks | Adapter 340062 required For more details see product page |
| Group | Accessories |
339812
| Description | Carrying strap |
|---|---|
| Remarks | Reduces fatigue, allows easy storage |
| Group | Accessories |
340067
| Description | 36" (90 cm) Hose replacement |
|---|---|
| Remarks | 10,000 psi (690 bar) working pressure, with spring guards |
| Group | Accessories |
340338
| Description | Relief valve |
|---|---|
| Remarks | Relieves pressure to ease coupler removal from fitting |
| Group | Accessories |
343170
| Description | Flashlight (LED) with clip |
|---|---|
| Remarks | For use with any cordless grease gun |
| Group | Accessories |
308730
| Description | Grease coupler replacement |
|---|---|
| Remarks | 10,000 psi ( 690 bar ) maximum pressure |
| Group | Accessories |
322610
| Description | Bulk loader fitting |
|---|---|
| Remarks | For use with 596 & 597 Series |
| Group | Accessories |
F331035
| Description | Grease gun holder |
|---|---|
| Remarks | For wall mounting professional and standard series grease guns |
| Group | Accessories |
Specifications

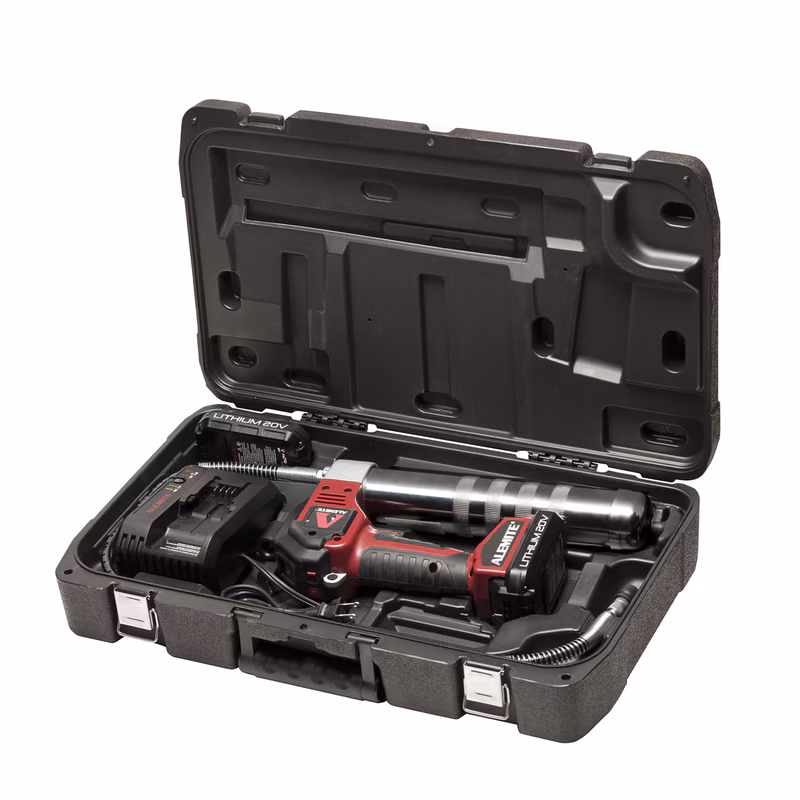

| Included items | 20V Battery; 1); 20V Charger; Heavy Duty Carrying Case |
|---|---|
| Features | LCD with real-time information: Battery capacity gauge Cartridge level Grease meter; Battery capacity gauge; Cartridge level; Grease meter; Two flow rates with convenient switch; Patented airflow management optimizes motor and transmission life; LED flashlight with on/off control |
| Applications | General industry; Agriculture; Construction; Wind |
