Attributes
| Alemite Series | fluid-management-systems |
|---|
Description
The RFC Plus is for larger shops that need a totally wireless meter, PC reporting and control, and have more dispense points. The meters and keypads utilize a 2.4 GHz mesh network which limits communication problems with other equipment in the facility. All dispenses with the meter are reported and tracked.
The RFC Plus system consists of three core components: wireless meter, dispense keypad, and master keypad. The system has one master keypad, up to 36 dispense keypads, and 250 meters.
Variations (5)
343314

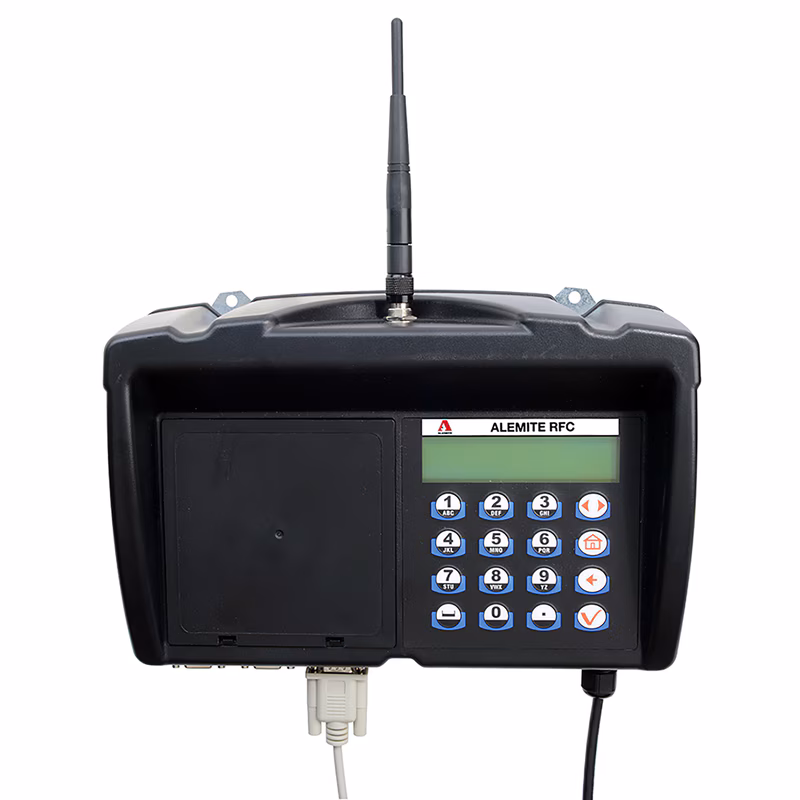

| Description | RFC Plus master keypad – 2.4 GHz unit used to bridge the connection between the PC and dispense keypad(s) which includes the PC software |
|---|---|
| Group | Hardware and Components |
343312
| Description | RFC Plus dispense keypad – 2.4 GHz unit used by technicians to initiate the dispense |
|---|---|
| Group | Hardware and Components |
3580-B
| Description | 2.4 GHz wireless meter with flexible extension |
|---|---|
| Group | Hardware and Components |
3580-A
| Description | 2.4 GHz wireless meter with rigid extension |
|---|---|
| Group | Hardware and Components |
393810-11
| Description | 30 ft (9 m) Antenna extension kit |
|---|---|
| Group | Hardware and Components |
Specifications
| Features | Manage up to 16 fluids and 99 simultaneous dispense locations with a single system; Simple installation - Attach dispense valves to the hoses - Plug the keypads into a standard 120V AC outlet - Plug master keypad into a PC; PC interface for enhanced capabilities and logical network setup; Mount up to 36 dispense keypads in bays to maximize productivity |
|---|
PDF Documents
No PDF documents.
