Attributes
| Alemite Series | fluid-management-systems |
|---|
Description

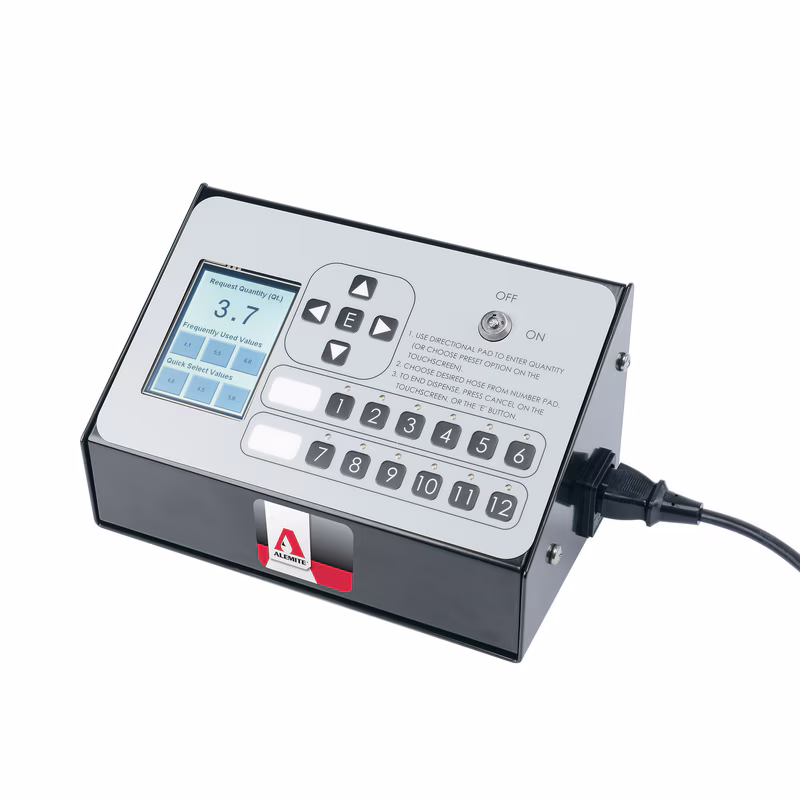

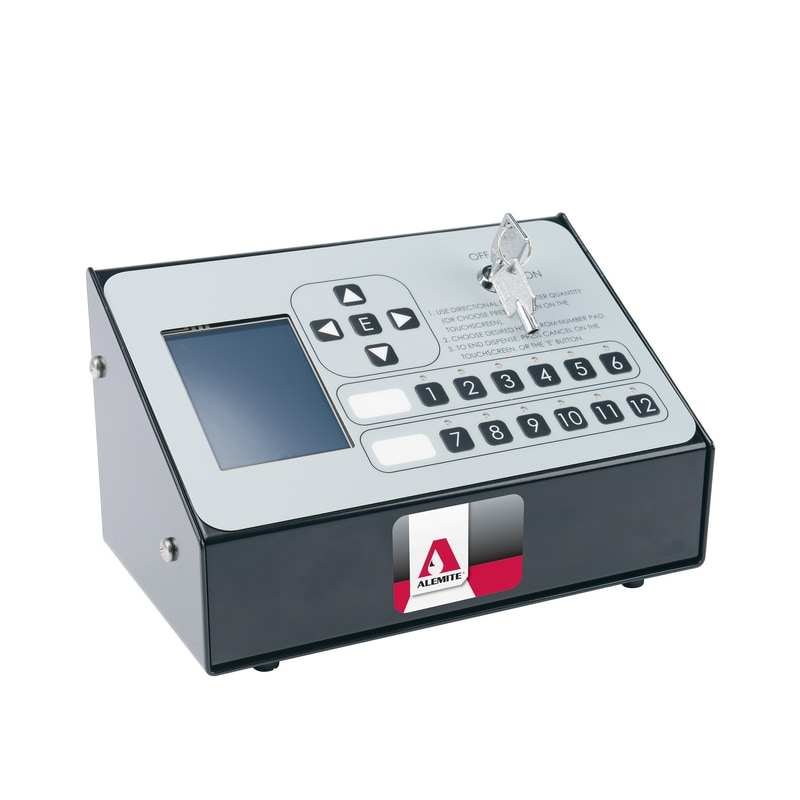

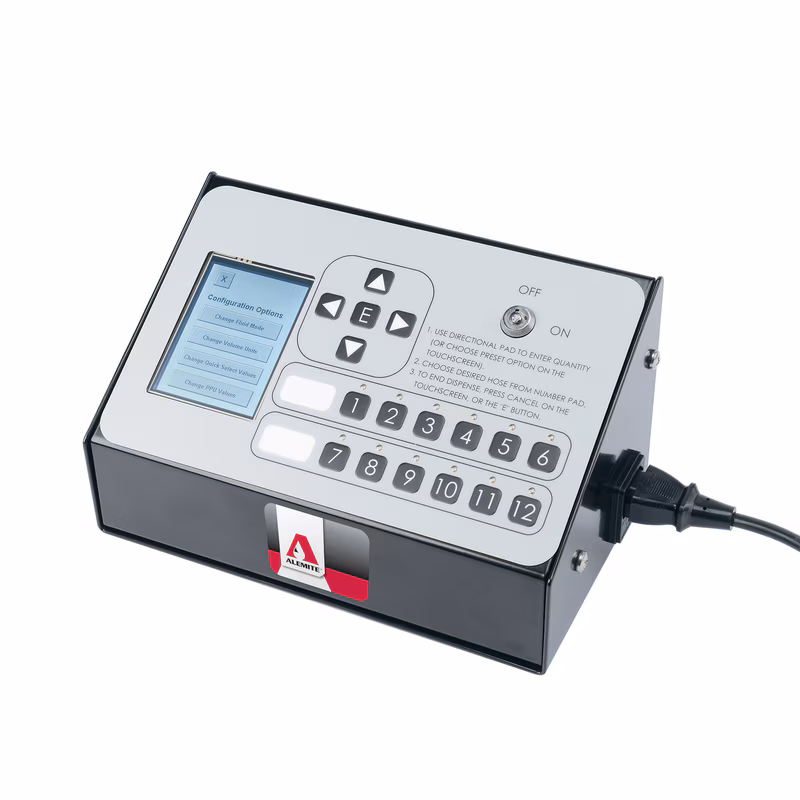

The Fluid Guard 2 controls one fluid to twelve hose reels or two fluids to six hose reels each. Its touchscreen LCD recalls the last three entries and allows the operator to set three favorites for a total of six values that are displayed automatically. Also, the operator can enter specific values for each dispense.
The system requires a pulse meter per fluid at the tank and a fluid solenoid per hose reel or dispense station. One hose can be activated at a time. As a safety feature, an optional air solenoid can be added so that the pump pressure will not push fluid unless the system is activated. This minimizes fluid spills in the event of a hose rupture.
Variations (14)
343596
| Description | Fluid Guard 2 Control Unit |
|---|---|
| Group | Software and Support |

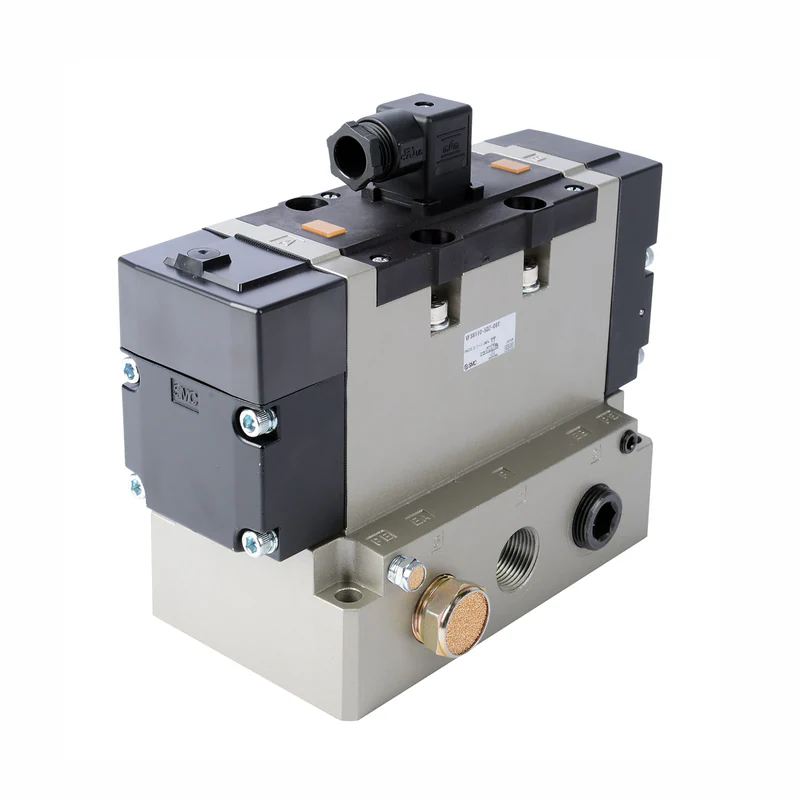

339006
| Description | Air Solenoid Valve |
|---|---|
| Group | Software and Support |

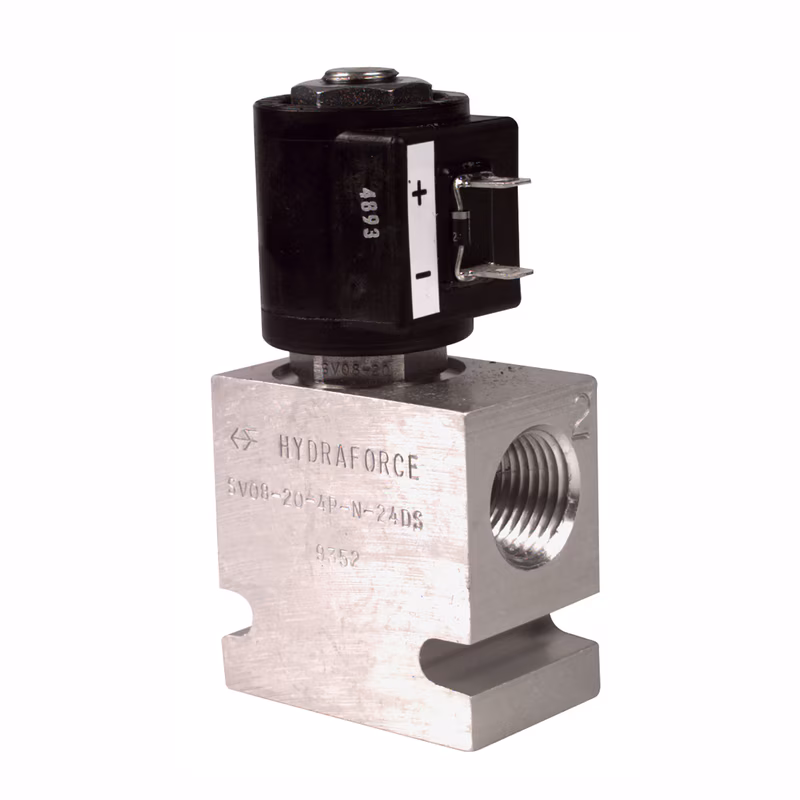

338315
| Description | Solenoid Valve for Petroleum-Based and Aqueous Fluids |
|---|---|
| Group | Software and Support |
339005
| Description | Pulse Meter for Petroleum-Based Fluids |
|---|---|
| Group | Software and Support |
340080
| Description | Pulse Meter for Aqueous Fluids |
|---|---|
| Group | Software and Support |
343191
| Description | Solenoid Valve for Diesel Exhaust Fluid (DEF) |
|---|---|
| Group | Software and Support |
343192
| Description | Pulse Meter for Diesel Exhaust Fluid (DEF) |
|---|---|
| Group | Software and Support |
343067
| Description | High-Capacity Solenoid Valve |
|---|---|
| Group | Software and Support |
343068
| Description | High-Capacity Pulse Meter |
|---|---|
| Group | Software and Support |
339318
| Description | Station Ready Light, 24V DC power |
|---|---|
| Group | Software and Support |
339277-1
| Description | Pressure Relief Valve, 900 psi (62 bar) max pressure |
|---|---|
| Group | Software and Support |
339277-2
| Description | Pressure Relief Valve, 1,400 psi (96 bar) max pressure |
|---|---|
| Group | Software and Support |
339276
| Description | Pressure Relief Valve Installation Kit |
|---|---|
| Group | Software and Support |

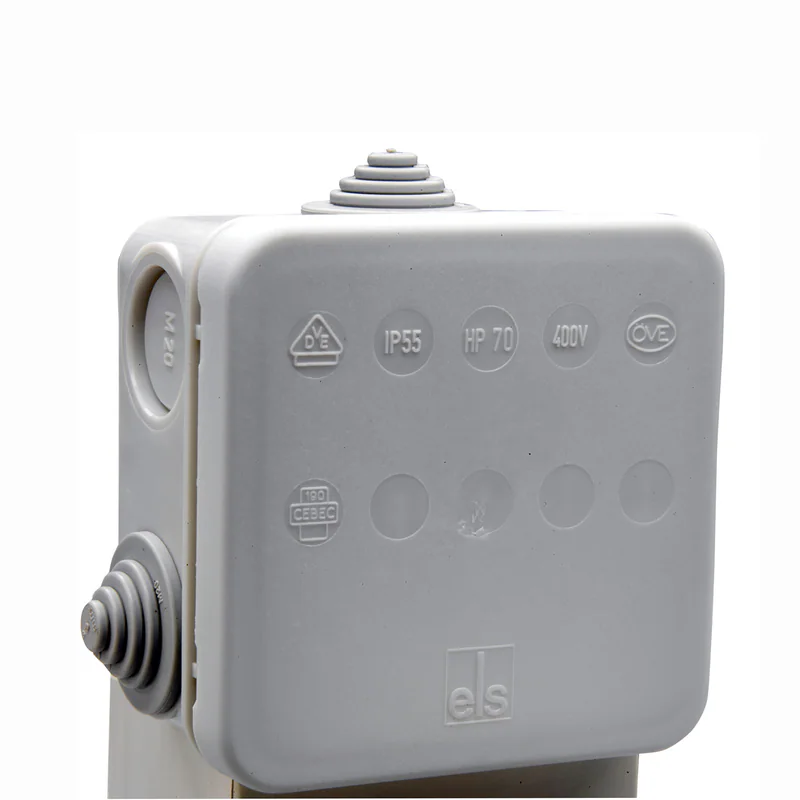

339007
| Description | Junction Box |
|---|---|
| Group | Software and Support |
Specifications
| Features | Easy to install; Simple to operate; no experience required; Low-cost option for controlling fluids; Manages one fluid to 12 hose reels or two fluids to six hose reels each; Optional air solenoid minimizes spillage if hose ruptures |
|---|---|
| Specifications | 110/220 V AC input power with power plug on side; 24 V DC output for solenoids; Cable connector for wire assembly of pulse meters and solenoids; Dispenses in pints, quarts, gallons or liters; Buttons are used to select hose to dispense; Up/Down and Left/Right arrows are used to enter dispense quantity; Touchscreen LCD shows amount dispensed; also has memory of last three dispenses and can be programmed with common dispense amounts; Key switch to change between configuration and dispensing modes; Operating temperature of +32 to 122 °F (0 to +50 °C); Pulses Per Unit (PPU) calibration via touchscreen; Dispensing system requires one pulse meter per fluid and one fluid solenoid per hose reel; Optional air solenoid per fluid |
