Attributes
| Alemite Series | fluid-management-systems |
|---|
Description
Alemite’s versatile AFCS Enterprise can adapt to any vehicle service location. Based on an Ethernet network, the system enables fast, easy and 100 percent reliable communication, which is essential when the control system interfaces with a dealer management system. Network connections are easy; simply connect the controller with a Cat 5 or Cat 6 Ethernet cable.
For a stand-alone system, the AFCS Enterprise controller can be wired on its own network; separate from the site’s existing network. This facilitates simple deployment and avoids any security concerns.
For a more advanced setup, each AFCS Enterprise controller can be connected over an existing network. The controller has a unique MAC address and IP address that allow the unit to route information over an existing network to the PC running the system. The unit comes preconfigured with a static IP address but can be used in dynamic IP mode if running a DHCP server. This method can save on wiring costs and can help a site maintain complete control of its components.
Alemite AFCS Enterprise software is used with AFCS Enterprise hardware to accurately track, monitor and dispense fluids using your Enterprise dealer management system. The AFCS fluid management system utilizes a standard Internet browser to access the software and can operate up to 50 sites with one server installation, which can provide significant savings.
Variations (35)
343535
| Description | On-site Installation Support – Two days of installation support on-site by SKF team. Distributor/hardware installer must be onsite in case any hardware installation issues occur. |
|---|---|
| Group | Software and Support |
343589
| Description | AssetWorks FA Interface |
|---|---|
| Group | Software and Support |
343590
| Description | AssetWorks M5 Interface |
|---|---|
| Group | Software and Support |
343586
| Description | CDK Interface with 1 year of service and install |
|---|---|
| Group | Software and Support |
343587
| Description | CDK software maintenance (per year) |
|---|---|
| Group | Software and Support |
343591
| Description | Procede Interface |
|---|---|
| Group | Software and Support |
343434
| Description | TMW Interface |
|---|---|
| Group | Software and Support |

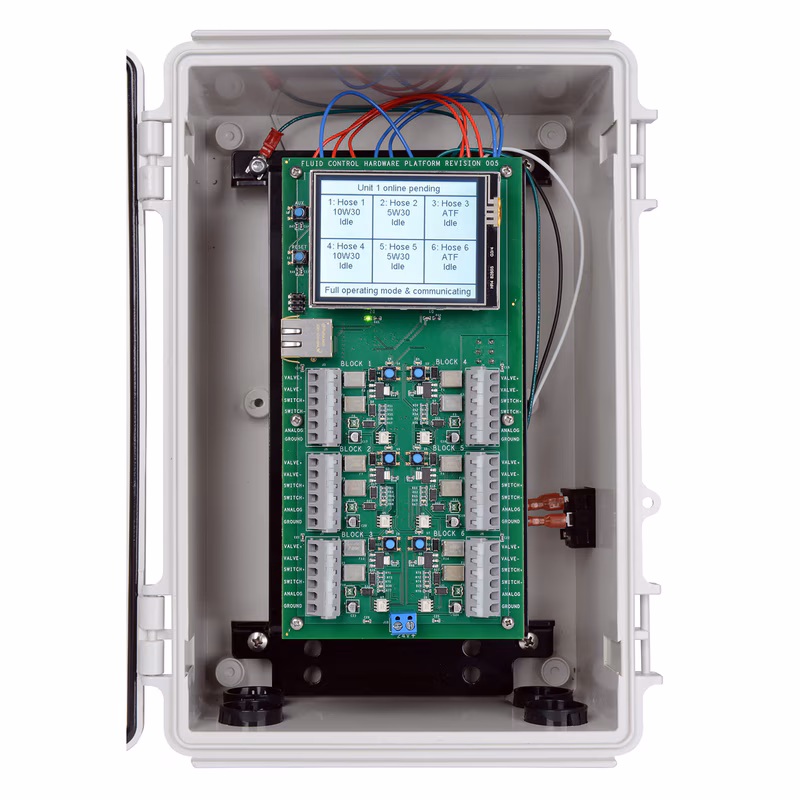

343530
| Description | AFCS Enterprise Controller – Includes 6 pulse inputs, 6 level inputs, and 6 fluid outputs; Has touch screen LCD for configuration; Provides 1 Ethernet switch to connect to network; Works on 110 or 220 AC power |
|---|---|
| Group | Hardware and Components |

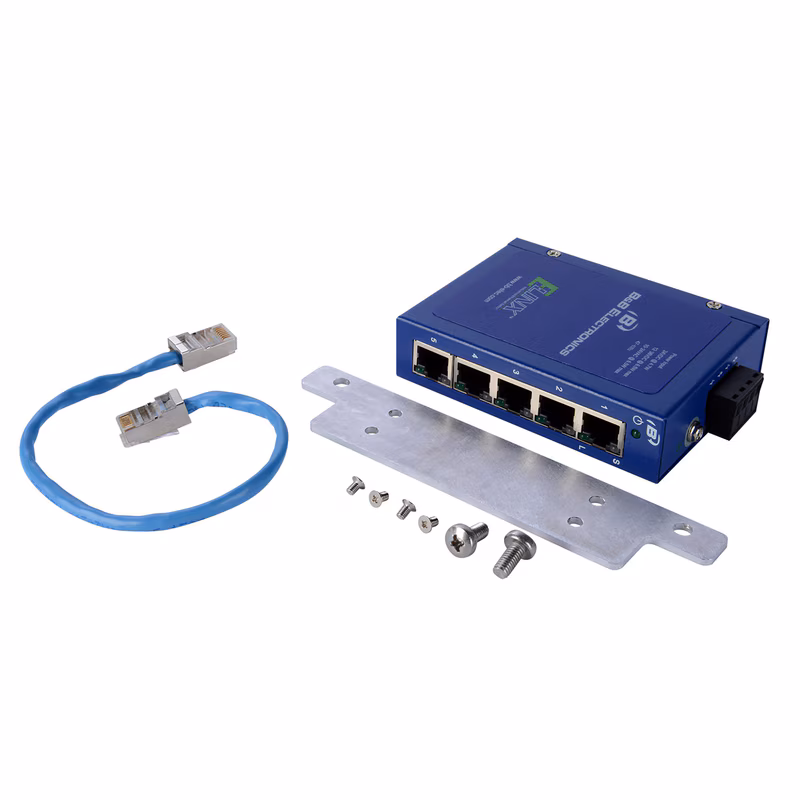

343531
| Description | AFCS Enterprise Ethernet Switch Kit – Kit for the AFCS Enterprise controller; Adds 4 additional Ethernet ports when daisy chaining network controllers; Not to be used to daisy chain more than 10 units together |
|---|---|
| Group | Hardware and Components |
343537
| Description | Enterprise Software for 1 site – USB storage drive that includes all the software to install on server/PC |
|---|---|
| Group | Hardware and Components |
343683
| Description | Fluid Solenoid Valve and Pulse Meter Kit for Oil, Automatic Transmission Fluid (ATF) and Petroleum-Based Fluids ( Download PIS ) |
|---|---|
| Group | Hardware and Components |
343684
| Description | Fluid Solenoid Valve and Pulse Meter Kit for Specialized to use with Antifreeze/Water Mix and Windshield Washer Fluid ( Download PIS ) |
|---|---|
| Group | Hardware and Components |
343408
| Description | Combo Unit Install Kit – Includes (2) 90-degree swivel elbows and (1) ½" ID x 2 ft (61 cm) hose |
|---|---|
| Group | Hardware and Components |
343533-100
| Description | Combo Unit Cable – 100 ft (30 m) |
|---|---|
| Group | Hardware and Components |
343533-250
| Description | Combo Unit Cable – 250 ft (76 m) |
|---|---|
| Group | Hardware and Components |
343533-500
| Description | Combo Unit Cable – 500 ft (152 m) |
|---|---|
| Group | Hardware and Components |
343546
| Description | LED Ready Light Assembly – Wires into the combo unit and mounts via a magnet backing |
|---|---|
| Group | Hardware and Components |
343545
| Description | Air Solenoid – ¾" NPT |
|---|---|
| Group | Hardware and Components |
343542
| Description | Air Solenoid – ½" NPT |
|---|---|
| Group | Hardware and Components |
343543
| Description | Air Solenoid – 3/8" NPT |
|---|---|
| Group | Hardware and Components |
343544
| Description | Air Solenoid – ¼" NPT |
|---|---|
| Group | Hardware and Components |
338315
| Description | Fluid Solenoid Valve compatible with motor oils (SAE 5-50), gear oils (SAE 80-240), Automatic Transmission Fluid (ATF), Petroleum-Based Fluids, as well as Antifreeze / Water Mix and Windshield Washer Fluid - 1/2" NPTF(f) inlet/outlet, includes manual override and screen |
|---|---|
| Group | Hardware and Components |
339005
| Description | Pulse Meter for motor oils (SAE 5-50), gear oils (SAE 80-240), Automatic Transmission Fluid (ATF), and Petroleum-Based Fluids - 1/2" NPTF(f) inlet/outlet |
|---|---|
| Group | Hardware and Components |
340080
| Description | Pulse Meter specialized to use with an Antifreeze / Water Mix and Windshield Washer Fluid - 1/2" NPTF(f) inlet/outlet |
|---|---|
| Group | Hardware and Components |
343191
| Description | Solenoid Valve for Diesel Exhaust Fluid (DEF) – ½" BSPP inlet/outlet |
|---|---|
| Group | Hardware and Components |
343192
| Description | Pulse Meter for Diesel Exhaust Fluid (DEF) – ½" BSPP inlet/outlet |
|---|---|
| Group | Hardware and Components |
343067
| Description | High-Capacity Solenoid Valve – 1" NPTF(f) inlet/outlet 30 gpm (115 lpm) |
|---|---|
| Group | Hardware and Components |
343068
| Description | High-Capacity Pulse Meter – 1" NPTF(f) inlet/outlet 30 gpm (115 lpm) |
|---|---|
| Group | Hardware and Components |
343025
| Description | Solenoid Valve Connector – With 3 ft (91 cm) pigtail |
|---|---|
| Group | Hardware and Components |
343540 343906
| Description | Tank Level Sensor Kit – for tanks 86" (220 cm) or less in height; uses 3/4" or 2" NPT bung. 49' (15 m) cable and installation adapter included) Tank Level Sensor Kit – for tanks 47" (120 cm) or less in height; uses 3/4" or 2" NPT bung. 49' (15 m) cable and installation adapter included) |
|---|---|
| Group | Hardware and Components |
339277-1
| Description | Pressure Relief Valve – 900 psi (62 bar) max pressure |
|---|---|
| Group | Hardware and Components |
339277-2
| Description | Pressure Relief Valve – 1400 psi (96 bar) max pressure |
|---|---|
| Group | Hardware and Components |
339276
| Description | Pressure Relief Valve Installation Kit – Includes 3 ft (91 cm) connecting hose and (2) tee-reducing branches |
|---|---|
| Group | Hardware and Components |
317813-2
| Description | Medium-Pressure Hose for Oil, Gear Lube & Antifreeze – Needed on some retrofits from reel to combo unit, 2 ft (61 cm) |
|---|---|
| Group | Hardware and Components |
321206
| Description | Low-Level Cutoff for Downtubes – Recommended to prohibit air from getting into line |
|---|---|
| Group | Hardware and Components |
Specifications

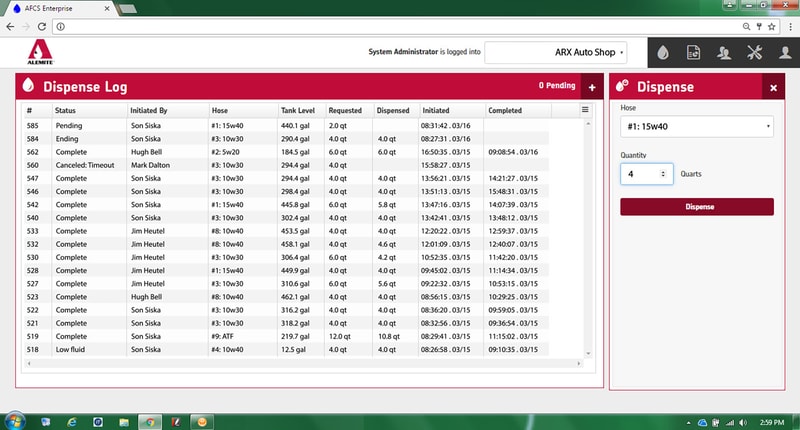

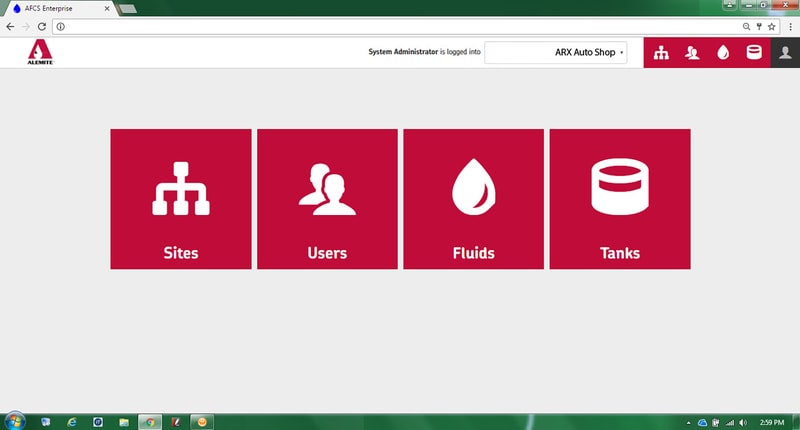

| Features | Compatible with AFCS hardware; Software on one server operates up to 50 sites; Runs as a Windows service so user does not need to be logged into PC for it to work; Offers four levels of access: system administrator, site administrator, manager and technician; Provides security protocols across the network; User interface for dispensing, configuring and tracking is accessible through a web browser; Can use the site’s SQL database or use SQL Express |
|---|---|
| Benefits | Saves time and money by accurately tracking and accounting for dispensed fluids; Provides 100 percent interface reliability with management software programs; Manages up to 50 sites with one server installation; User interface for dispensing, configuring and tracking is accessible throughout the web browser; Measures any type of oil, transmission fluid or windshield washer fluid; Electric bypass measures what is dispensed in bypass mode |
