Attributes
| Alemite Series | fluid-handling-equipment |
|---|
Description

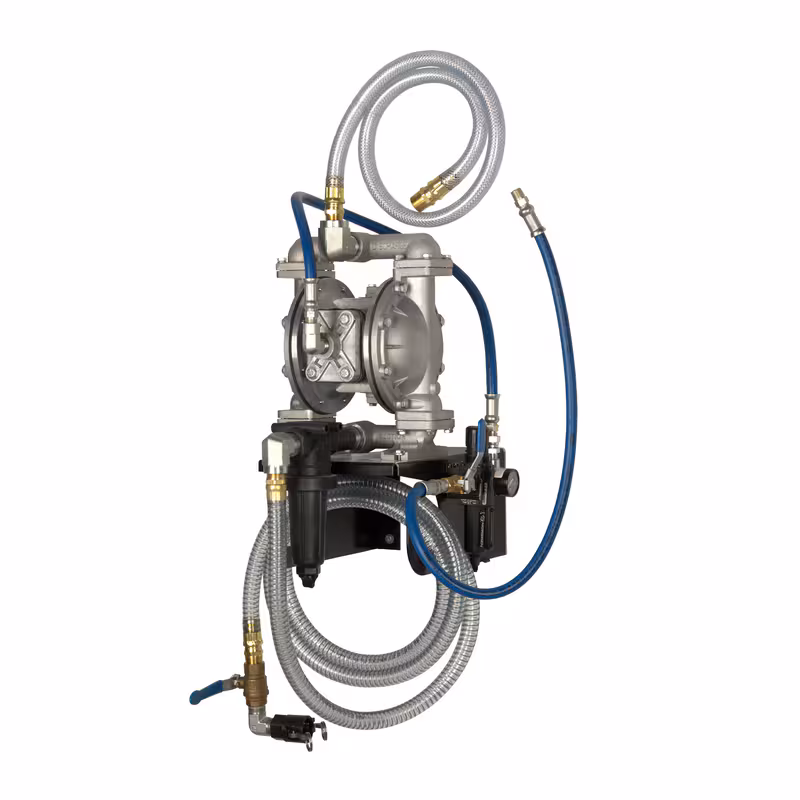

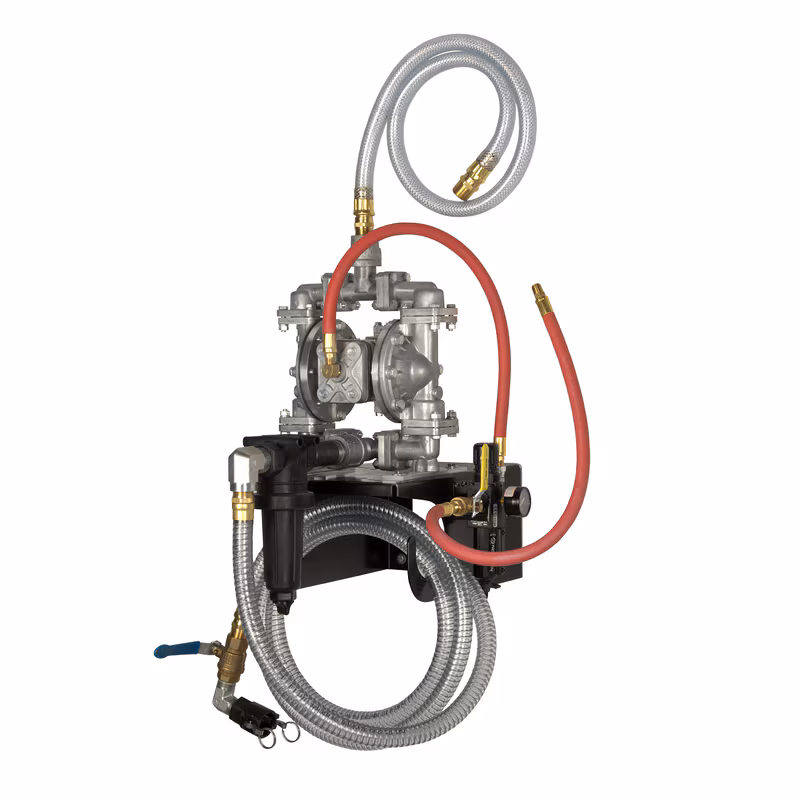

Alemite offers three new diaphragm pump systems to evacuate fluids from portable used fluid drains and collection equipment and transfer it to remote storage containers. The kits are ideal for use in automotive service and fleet maintenance shops where used fluids such as motor oil, transmission fluid and coolant are commonly changed. Each system features an air-operated, double-diaphragm pump, all recommended air supply, fluid extraction and fluid discharge fittings, components and accessories. An optional wall-mount bracket also is available.
Variations (8)
8595-A
| Description | Evacuation Kit (1") with non-UL-listed pump |
|---|---|
| Pump | 8323 |
| Discharge Hose | 3/4" NPTF(m) |
| Suction Hose Connection | 3/4" Cam-lock (f) |
| Air Inlet | 3/8" NPTF |
8595-B
| Description | Evacuation Kit (1") with UL-listed pump |
|---|---|
| Pump | 8325 |
| Discharge Hose | 3/4" NPTF(m) |
| Suction Hose Connection | 3/4" Cam-lock (f) |
| Air Inlet | 3/8" NPTF |
8595-C
| Description | Evacuation Kit (1/2") with non-UL-listed pump |
|---|---|
| Pump | 8322-A |
| Discharge Hose | 3/4" NPTF(m) |
| Suction Hose Connection | 3/4" Cam-lock (f) |
| Air Inlet | 1/4" NPTF |
343261
| Description | Cam-lock Connector with 3/4" NPTF(f) Thread |
|---|---|
| Group | Optional Components |
343262
| Description | Cam-lock Connector with 3/4" NPTF(m) Thread |
|---|---|
| Group | Optional Components |
343274
| Description | 3/4" Check Valve |
|---|---|
| Group | Optional Components |
338564
| Description | 3/4" Ball Valve |
|---|---|
| Group | Optional Components |
343283
| Description | Mounting Bracket (Pump) |
|---|---|
| Group | Optional Components |
Specifications
| Features | Corrosion-resistant aluminum; Kit includes fittings, valves, hoses and other components required for compressed air connection, fluid collection and discharge; Cam-lock-style connection adapts to virtually any type of drain |
|---|---|
| Compatibility | Used fluids such as motor oil, transmission fluid and coolant |
