Attributes
| Alemite Series | fluid-handling-and-transfer-pumps |
|---|
Description

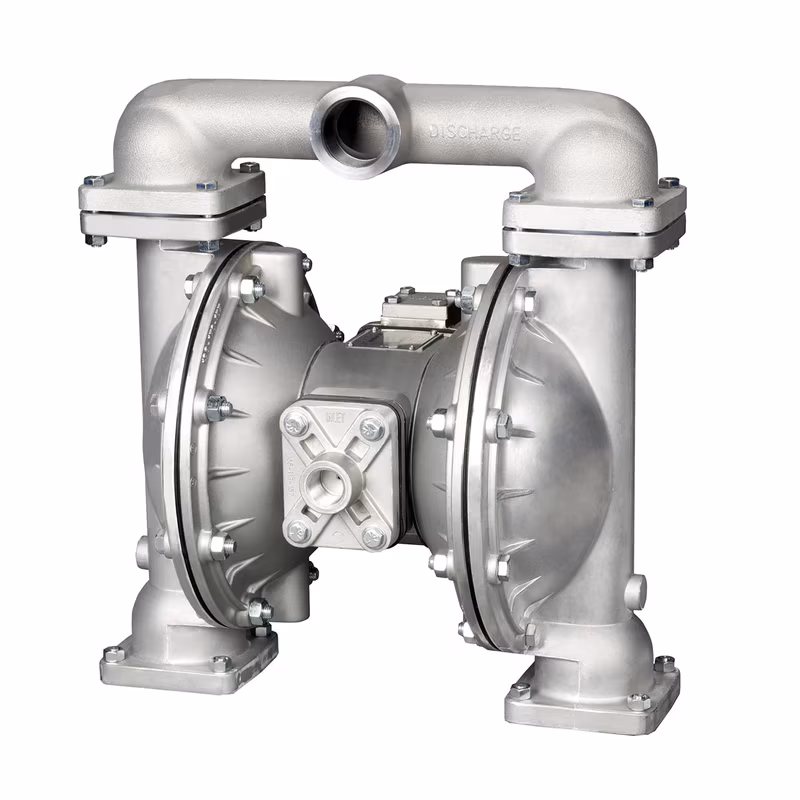

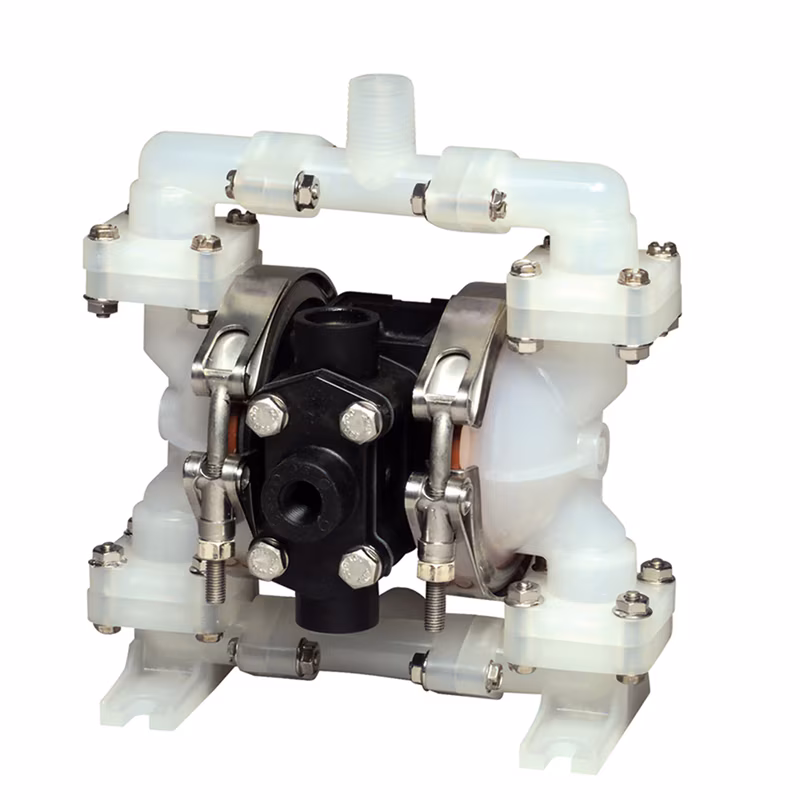

Alemite Diaphragm Pumps are designed for both high volume transfer and dispensing a variety of low viscosity fluids including new oil, used oil, windshield washer fluid, antifreeze, and other materials.
Refer to table below for specific pump compatibility.
Variations (12)
8301
| Inlet/Outlet | 1/4" |
|---|---|
| Delivery rate | 4 gal/min ( 15 l/min) |
| Pressure | 125 psi (8,6 bar) |
| Material Body/Diaphragm | Poly / PTFE |
| Recommended fluids | Windshield Washer Fluid Antifreeze |
| Group | Specifications Diaphragm Pumps with 1/4" Air Inlet |
8322
| Inlet/Outlet | 1/2" |
|---|---|
| Delivery rate | 14 gal/min ( 53 l/min) |
| Pressure | 100 psi (6,9 bar) |
| Material Body/Diaphragm | Poly / Buna |
| Recommended fluids | Windshield Washer Fluid Antifreeze New/Used Oil Most Water Based Chemicals |
| Group | Specifications Diaphragm Pumps with 1/4" Air Inlet |
8322-A
| Inlet/Outlet | 1/2" |
|---|---|
| Delivery rate | 15 gal/min ( 56 l/min) |
| Pressure | 100 psi (6,9 bar) |
| Material Body/Diaphragm | Aluminum / Buna |
| Recommended fluids | New/Used Oil |
| Group | Specifications Diaphragm Pumps with 1/4" Air Inlet |
8322-B
| Inlet/Outlet | 1/2" |
|---|---|
| Delivery rate | 14 gal/min ( 53 l/min) |
| Pressure | 125 psi (8,6 bar) |
| Material Body/Diaphragm | Poly / Santoprene |
| Recommended fluids | Windshield Washer Fluid Antifreeze Soaps Cleaning Fluid Non-petroleum Cleaning Chemicals |
| Group | Specifications Diaphragm Pumps with 1/4" Air Inlet |
8322-C
| Inlet/Outlet | 1/2" |
|---|---|
| Delivery rate | 14 gal/min ( 53 l/min) |
| Pressure | 125 psi (8,6 bar) |
| Material Body/Diaphragm | Poly / PTFE |
| Recommended fluids | Corrosives Concentrates Water Based Solvents DEF |
| Group | Specifications Diaphragm Pumps with 1/4" Air Inlet |
8322-D
| Inlet/Outlet | 1/2" |
|---|---|
| Delivery rate | 15 gal/min ( 56 l/min) |
| Pressure | 125 psi (8,6 bar) |
| Material Body/Diaphragm | Aluminum / PTFE |
| Recommended fluids | More universally compatible with solvents volatiles |
| Group | Specifications Diaphragm Pumps with 1/4" Air Inlet |
8323
| Inlet/Outlet | 1" |
|---|---|
| Delivery rate | 45 gal/min ( 170 l/min) |
| Pressure | 125 psi (8,6 bar) |
| Material Body/Diaphragm | Aluminum / Buna |
| Recommended fluids | New/Used Oil |
| Group | Specifications Diaphragm Pumps with 1/2" Air Inlet |
8325
| Inlet/Outlet | 1" |
|---|---|
| Delivery rate | 45 gal/min ( 170 l/min) |
| Pressure | 125 psi (8,6 bar) |
| Material Body/Diaphragm | Aluminum / Buna |
| Recommended fluids | Antifreeze New/Used Oil |
| Group | Specifications Diaphragm Pumps with 1/2" Air Inlet |
8327
| Inlet/Outlet | 1" |
|---|---|
| Delivery rate | 45 gal/min ( 170 l/min) |
| Pressure | 125 psi (8,6 bar) |
| Material Body/Diaphragm | Aluminum / PTFE |
| Recommended fluids | Antifreeze New/Used Oil |
| Group | Specifications Diaphragm Pumps with 1/2" Air Inlet |
8324
| Inlet/Outlet | 1-1/2" |
|---|---|
| Delivery rate | 106 gal/min ( 400 l/min) |
| Pressure | 125 psi (8,6 bar) |
| Material Body/Diaphragm | Aluminum / Buna |
| Recommended fluids | Antifreeze New/Used Oil |
| Group | Specifications Diaphragm Pumps with 3/4" Air Inlet |
8329
| Inlet/Outlet | 2" |
|---|---|
| Delivery rate | 150 gal/min ( 567 l/min) |
| Pressure | 125 psi (8,6 bar) |
| Material Body/Diaphragm | Aluminum / Buna |
| Recommended fluids | Antifreeze New/Used Oil |
| Group | Specifications Diaphragm Pumps with 3/4" Air Inlet |
8340
| Inlet/Outlet | 3" |
|---|---|
| Delivery rate | 235 gal/min ( 888 l/min) |
| Pressure | 125 psi (8,6 bar) |
| Material Body/Diaphragm | Aluminum / Buna |
| Recommended fluids | Antifreeze New/Used Oil |
| Group | Specifications Diaphragm Pumps with 3/4" Air Inlet |
Specifications
| Accessories | 1/2" Diaphragm Pump Pressure Relief Kit (; 343200; ); 1" Diaphragm Pump Pressure Relief Kit (; 343201; ); Siphon Kit 1" NPT(m) & 1" NPT(f) (; SWA306; ) |
|---|---|
| Features | 1/4", 1/2", 1", 2" and 3" models |
| Compatibility | Windshield Washer Fluid; Antifreeze; New/Used Oil; Most Water Based Chemicals; Soaps; Cleaning Fluid; Non-petroleum Cleaning Chemicals; Corrosives; Concentrates; Water Based Solvents; DEF |
