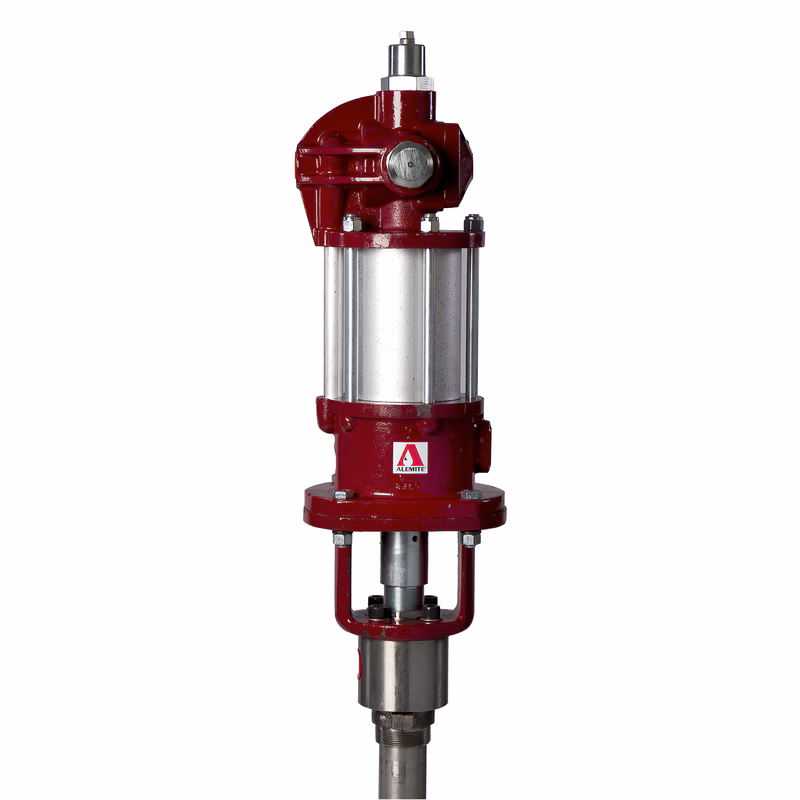

Medium To Heavy Duty Chemicals Pump Model 7886

Scraped SKU: skf-medium-to-heavy-duty-pump-series-7886 2026-06-13 07:52:24

Attributes

Alemite Seriesfluid-handling-and-transfer-pumps

Description

Alemite Class 2, 3 and 4 Pumps are designed for medium to heavy fluids and medium semi-fluids, including adhesives, sealants and pastes. Power piston downtube combines the priming advantages of a ball check with the performance of an upper chop check to handle heavier loads. Recommended for dispensing, extruding and spraying applications.

Variations (2)

7886-A5

Wetted materialsCarbon Steel
Drum size400 lb ( 180 kg)
Outlet1" NPTF(f)
Seal materialBuna
Ratio11:1
Free flow13 gal/min (49 l/min)
Cycles30 per gallon (6,7 per liter)
Weight78 lb (35,3 kg)

7886-S5

Wetted materialsStainless Steel
Drum size400 lb ( 180 kg)
Outlet1" NPTF(f)
Seal materialPTFE
Ratio11:1
Free flow13 gal/min (49 l/min)
Cycles30 per gallon (6,7 per liter)
Weight82 lb (37,2 kg)

Specifications

FeaturesStainless steel construction and PTFE seals (model 7886-S5 ) will tolerate pumping corrosive fluids; ¾" NPTF(f) air inlet
