Attributes
| Alemite Series | fluid-handling-and-transfer-pumps |
|---|
Description

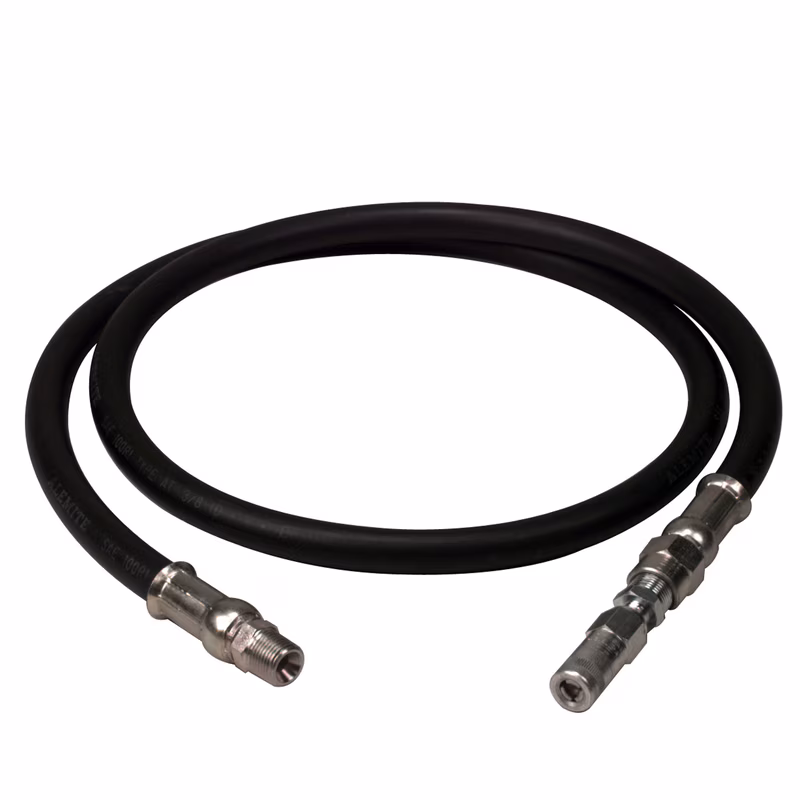

Alemite pump hose assemblies can be used with manual pumps, high volume and multi-pressure bucket pumps, and high pressure manual bucket pumps.
Variations (6)
317853-5
| Use with Pump | Manual grease pump High volume bucket pump Multi-pressure bucket pump |
|---|---|
| Coupling Thread Size | 1/8" NPTF(m) x 3/8" NPTF(m) |
| Hose ID | 1/4" |
| Max. Working Pressure | 4,400 psi (303 bar) |
| Hose Length | 5 ft (1.5 m) |
| Weight | 0.9 lb (0.4 kg) |
| Group | Specifications Manual High Volume and Multi-Pressure |
317854-5F
| Use with Pump | Manual grease pump High volume bucket pump Multi-pressure bucket pump |
|---|---|
| Coupling Thread Size | 3/8" NPTF(m) x 3/8" NPTF(f) |
| Hose ID | 3/8" |
| Max. Working Pressure | 3,200 psi (220 bar) |
| Hose Length | 5.5 ft (1.7 m) |
| Weight | 1.7 lb (0.8 kg) |
| Group | Specifications Manual High Volume and Multi-Pressure |
6615-G
| Use | Giant Button Head Fittings |
|---|---|
| Coupler | 304300 |
| Hose | 317854-5F |
| Hose Length | 5.5 ft (1.7 m) |
| Swivel | 51219 |
| Check valve | 46405 |
| Weight | 0.5 lb (0.23 kg) |
| Group | Specifications All Manual and High Pressure |
6616-G
| Use | Standard Button Head Fittings |
|---|---|
| Coupler | 42030 |
| Hose | 317854-5F |
| Hose Length | 5.5 ft (1.7 m) |
| Swivel | 51219 |
| Check valve | 46405 |
| Weight | 2.5 lb (1,13 kg) |
| Group | Specifications All Manual and High Pressure |
6617-K
| Use | Hydraulic Fittings |
|---|---|
| Coupler | 6304-C |
| Hose | 317854-10 |
| Hose Length | 10 ft (3.0 m) |
| Swivel | - |
| Check valve | - |
| Weight | 3.4 lb (1.54 kg) |
| Group | Specifications All Manual and High Pressure |
322434
| Use | Hydraulic Fittings |
|---|---|
| Coupler | 308730-A |
| Hose | 317853-5 |
| Hose Length | 5 ft (1.5 m) |
| Swivel | - |
| Check valve | - |
| Weight | 1 lb (0.45 kg) |
| Group | Specifications All Manual and High Pressure |
Specifications
| Features | Single wire braid construction; 5.5 ft (1.7 m) / 10 ft (3.0 m) length |
|---|
