Follower Plates

Scraped SKU: skf-follower-plates 2026-06-13 07:52:24

Attributes

Alemite Seriesfluid-handling-and-transfer-pumps

Description

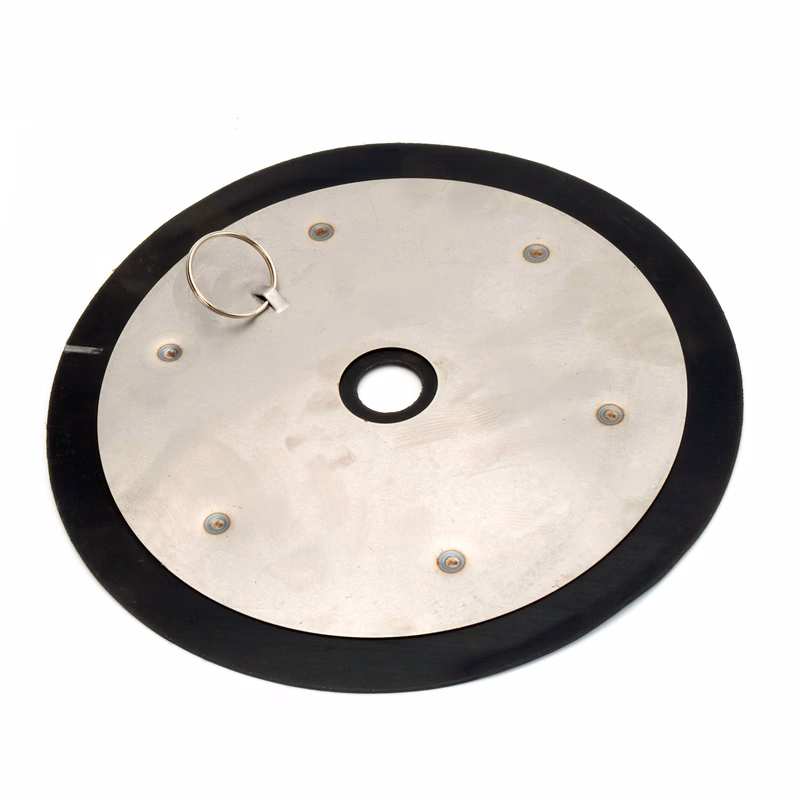

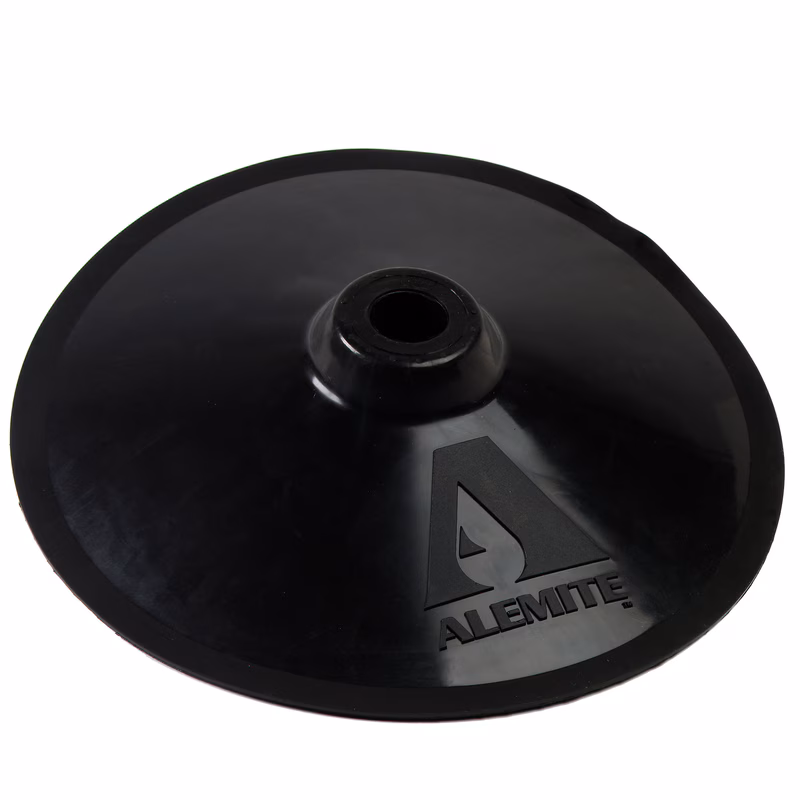

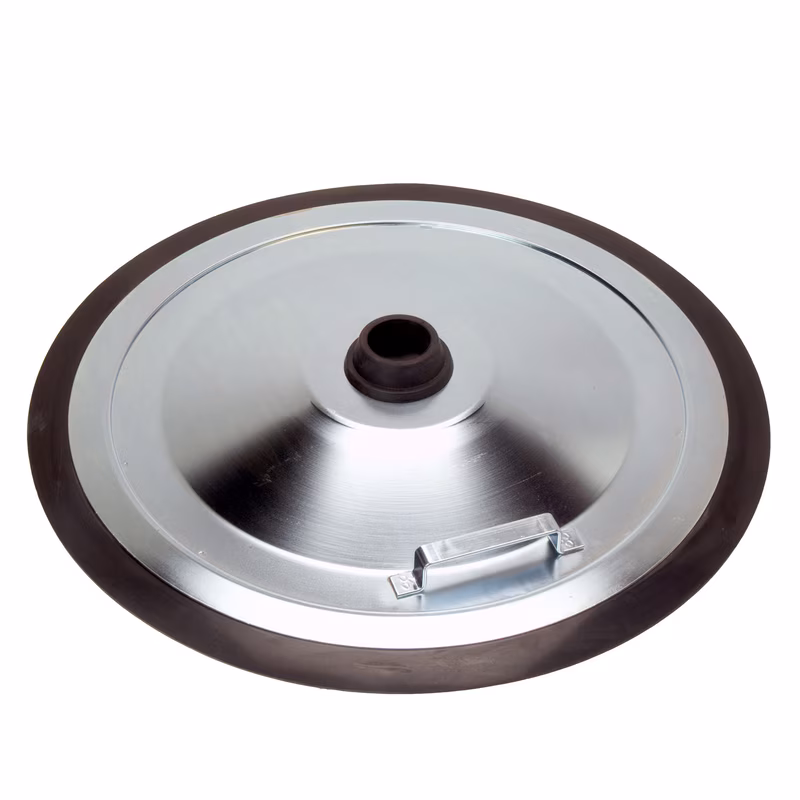

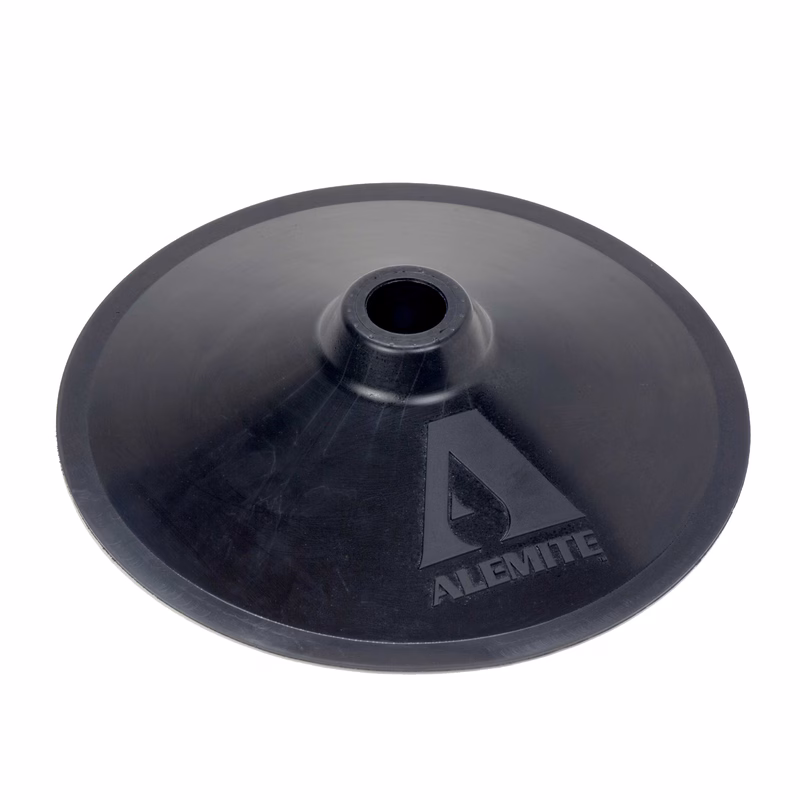

Alemite follower plates can be used with a range of pumps including standard duty, manual, industrial and many more.

Variations (13)

314898

Drum size30 lb
Use with pump6713-4
Tube diameter7/8" (22.2 mm)
Outer diameter8.44" (21.4 cm)
Weight1.6 lb (0.72 kg)

338801

Drum size120 lb
Use with pump9950 Series
Tube diameter1-1/8" (28.6 mm)
Outer diameter14.14" (35.9 cm)
Weight4.2 lb (1.90 kg)

338802

Drum size120 lb
Use with pumpRAM Standard Duty
Tube diameter1-3/8" (35 mm)
Outer diameter14.14" (35.9 cm)
Weight3.6 lb (1.63 kg)

338803

Drum size120 lb
Use with pumpManual pumps
Tube diameter1-5/8" (41.3 mm)
Outer diameter14.14" (35.9 cm)
Weight3.6 lb (1.63 kg)

338804

Drum size120 lb
Use with pumpIndustrial pumps
Tube diameter2" (50.8 mm)
Outer diameter14.14" (35.9 cm)
Weight3.6 lb (1.63 kg)

338911

Drum size400 lb (180 kg / 597 mm)
Use with pumpRAM, Metric RAM Standard Duty H and Super H
Tube diameter1-3/8" (35 mm)
Outer diameter23.53" (59.8 cm)
Weight11 lb (4.98 kg)

338912

Drum size400 lb
Use with pumpIndustrial pumps
Tube diameter2" (50.8 mm)
Outer diameter23.53" (59.8 cm)
Weight11 lb (4.98 kg)

338923

Drum size400 lb
Use with pump7539-4 (Manual)
Tube diameter1-5/8" (41.3 mm)
Outer diameter23.53" (59.8 cm)
Weight11 lb (4.98 kg)

337665

Drum size35 lb
Use with pumpRAM (9911 Series)
Tube diameter1-1/8" (28.6 mm)
Outer diameter11.27" (28.6 cm)
Weight1.7 lb (0.77 kg)

338825

Drum size35 lb
Use with pump7537-4 6709-B4
Tube diameter1-5/8" (41.3 mm)
Outer diameter11.27" (28.6 cm)
Weight1.9 lb (0.86 kg)

338991

Drum size12.5 kg (270 mm)
Use with pumpMetric RAM H and Super H
Tube diameter29 mm
Outer diameter10.63" (27.0 cm)
Weight2 lb (0.90 kg)

338992

Drum size20 kg (330 mm)
Use with pumpMetric RAM H and Super H
Tube diameter29 mm
Outer diameter12.99" (33.0 cm)
Weight2.4 lb (1.08 kg)

338993

Drum size50 kg (390 mm)
Use with pumpMetric RAM H and Super H
Tube diameter35 mm
Outer diameter15.35" (39.0 cm)
Weight4 lb (1.81 kg)

Specifications

No specifications scraped.

PDF Documents

No PDF documents.
