Drum Covers

Scraped SKU: skf-drum-covers 2026-06-13 07:52:24

Attributes

Alemite Seriesfluid-handling-and-transfer-pumps

Description

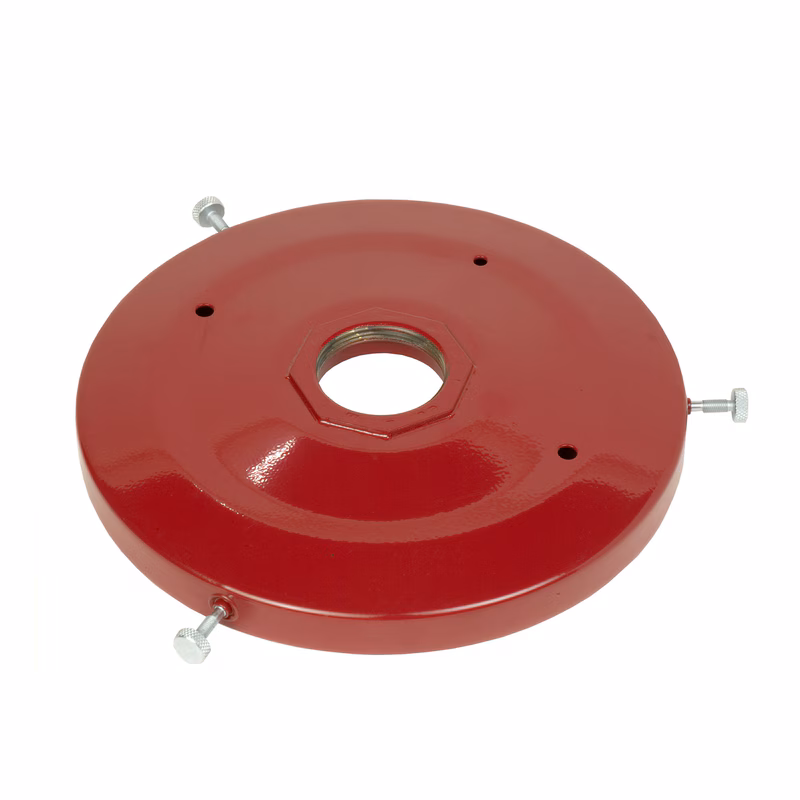

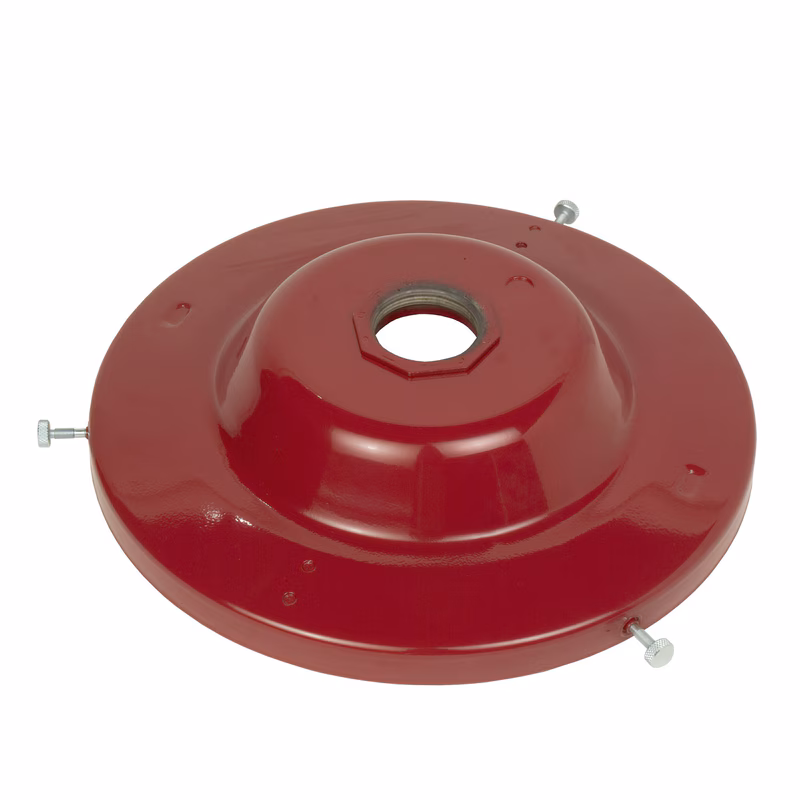

Alemite drum covers are durable accessories for RAM, standard duty and industrial pumps. Drum cover flange provides rigidity and maintains solid position on drum.

Variations (12)

338166

Drum size35 lb
Use with pumpRAM, Standard Duty
FluidGrease
Height / Outer diameter2.04" (51.8 mm) 12" (30.5 cm)
Weight19 lb (8,6 kg)
GroupSpecifications Drum Covers

338371

Drum size120 lb (50 kg)
Use with pumpRAM, Standard Duty
FluidGrease
Height / Outer diameter3.19" (81 mm) 14.88" (37.8 cm)
Weight5.6 lb (2.5 kg)
GroupSpecifications Drum Covers

338163

Drum size400 lb (180 kg)
Use with pumpRAM
FluidGrease
Height / Outer diameter1.5" (38.1 mm) 23.91" (60.5 cm)
Weight5.6 lb (2.5 kg)
GroupSpecifications Drum Covers

323800-4

Drum size120 lb (50 kg)
Use with pumpIndustrial
FluidOil Grease Fluids
Height / Outer diameter1.19" (30.2 mm) 14.88" (37.8 cm)
Weight5.5 lb (2.5 kg)
GroupSpecifications Drum Covers

323847-4

Drum size400 lb / 55 gallon (180 kg / 208 liter)
Use with pumpIndustrial
FluidOil Grease Fluids
Height / Outer diameter3.5" (88.9 mm) 24.25" (61.5 cm)
Weight19.4 lb (8.8 kg)
GroupSpecifications Drum Covers

338145

Drum size16 gallon (50 kg)
Use with pumpRAM 9960 , 9968
FluidOil Fluids
Height / Outer diameter3.19" (81 mm) 14.88" (37.8 cm)
Weight5.8 lb (2.6 kg)
GroupSpecifications Drum Covers

338981

Drum size12.5 kg (276 mm)
Use with pumpMetric Pumps
FluidGrease
Height / Outer diameter1.45" (36.8 mm) 10.87" (27.5 cm)
Weight2.8 lb (1.3 kg)
GroupSpecifications Drum Covers

338982

Drum size20 kg (315 mm)
Use with pumpMetric Pumps
FluidGrease
Height / Outer diameter1.71" (43.4 mm) 12.41" (31.5 cm)
Weight3.2 lb (1.4 kg)
GroupSpecifications Drum Covers

338983

Drum size50 kg (409 mm)
Use with pumpMetric Pumps
FluidGrease
Height / Outer diameter2.05" (52 mm) 16.09" (40.8 cm)
Weight7.4 lb (3.4 kg)
GroupSpecifications Drum Covers

338984

Drum size180 kg (619 mm)
Use with pumpMetric Pumps
FluidGrease
Height / Outer diameter1.57" (39.9 mm) 24.36" (61.8 cm)
Weight13 lb (5.9 kg)
GroupSpecifications Drum Covers

338977

Drum Size120 lb / 16 gallon
Bung Opening2" NPTF
FluidOil Grease Material
Height / Outer diameter3.19" (81 mm) 14.88" (378 mm)
Weight6.2 lb (2.8 kg)
GroupDrum Covers - Bung Mount

318040-4

Drum Size400 lb / 55 gallon
Bung Opening2" NPTF
FluidOil Grease Material
Height / Outer diameter1.57" (40 mm) 23.91" (607 mm)
Weight12.5 lb (5.7 kg)
GroupDrum Covers - Bung Mount

Specifications

FeaturesDurable – made with heavy gauge steel; Drum cover flange provides rigidity and maintains solid position on drum; Pump mounts in center of cover, and 3 thumb screws clamp over drum rim
