1/4"-28 and 1/8" Thread-Forming Fittings

Scraped SKU: skf-thread-forming-fittings 2026-06-13 07:52:24

Attributes

Alemite Seriesfittings

Description

Alemite Thread Forming Fittings have special tapered drive threads which reshape the material in an untapped hole to provide a leak proof seal. They are most effectively installed by spinning into the untapped hole. Thread forming fittings can be replaced by any standard threaded fitting or by another thread forming fitting.

Variations (7)

3038-B

TypeStraight
Hex Size5/16"
Hole Size recommended.230 - .235

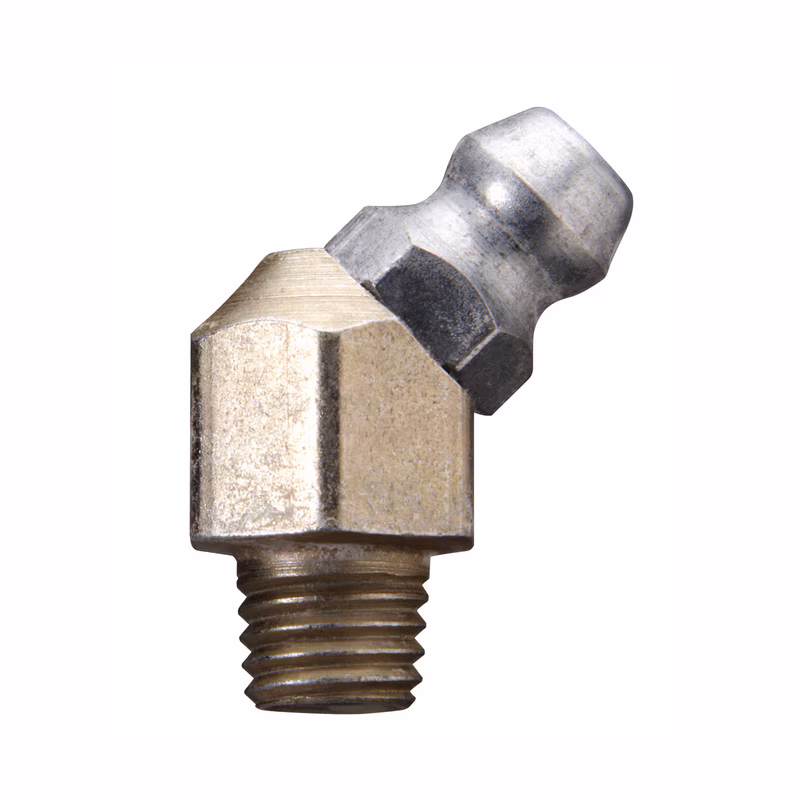

3053-B

Type45°
Hex Size3/8"
Hole Size recommended.230 - .235

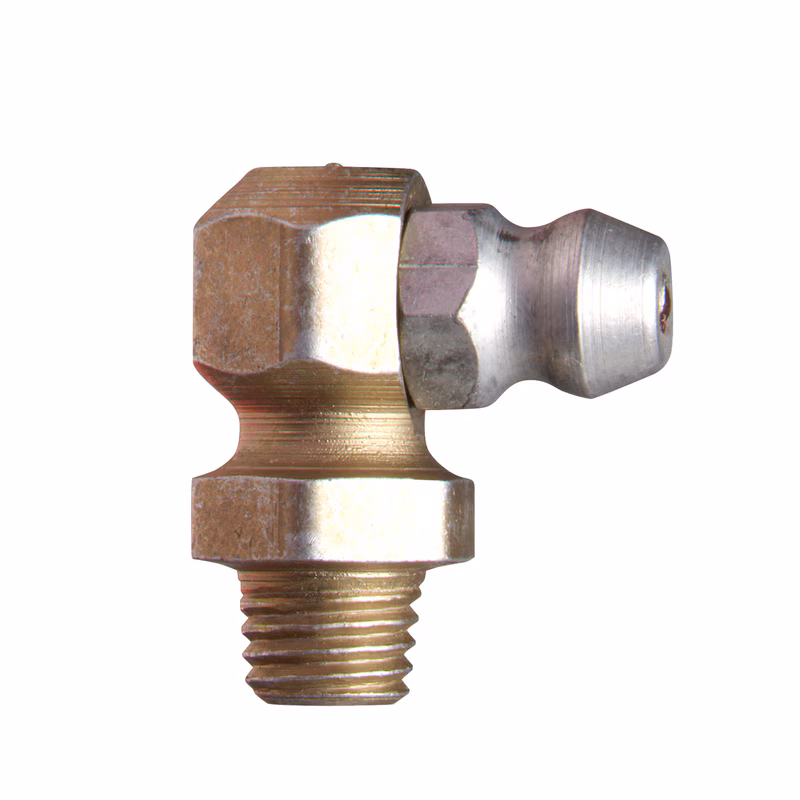

3054-B

Type90°
Hex Size3/8"
Hole Size recommended.230 - .235

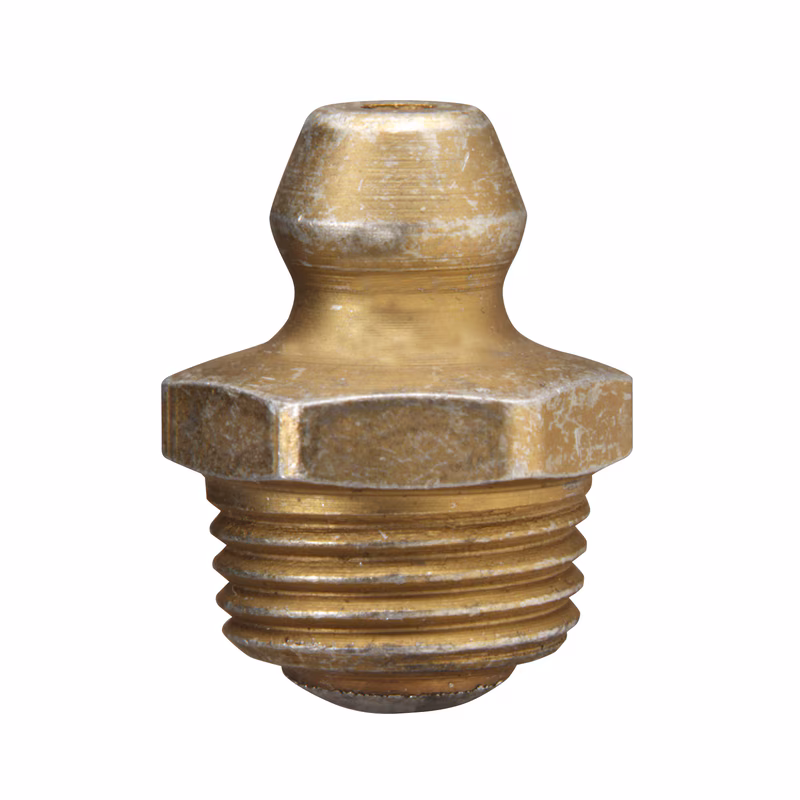

1720-B

TypeStraight
Hex Size7/16"
Hole Size recommended.373 - .380

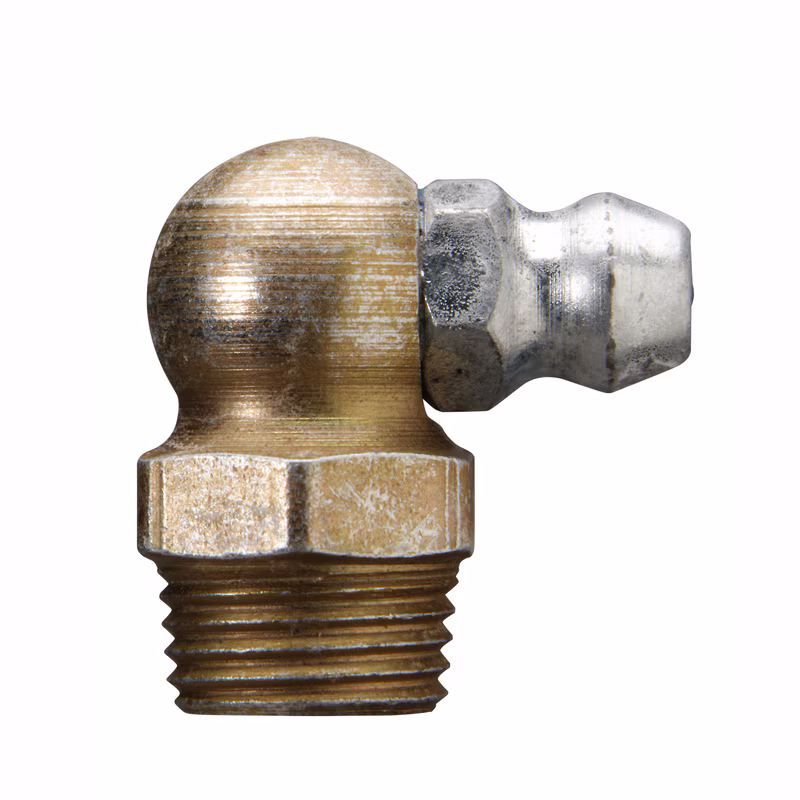

1723-B

Type90°
Hex Size7/16"
Hole Size recommended.373 - .380

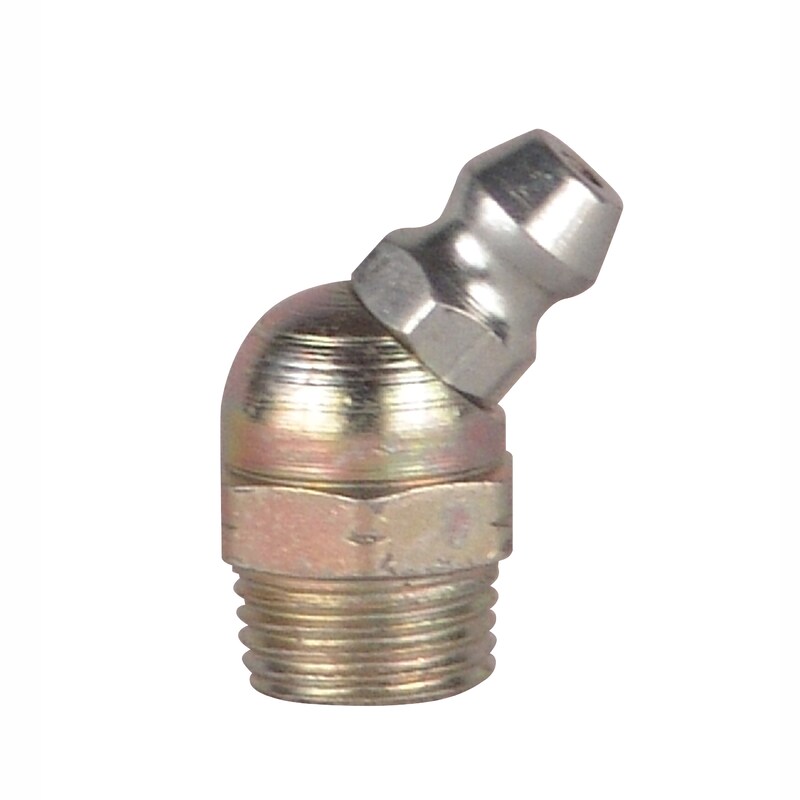

1724-B

Type45°
Hex Size7/16"
Hole Size recommended.373 - .380

369582

TypeStraight
Hex Size9/32"
Hole Size recommended.230 - .235

Specifications

FeaturesExceeds 72 hour salt spray test; Dirt excluding check ball; Threads provide strong seal; Dyed yellow for identification; Trivalent zinc plating; RoHS compliant
TypesStraight; 45°; 90°
