Attributes
| Alemite Series | fittings |
|---|
Description
ALEMITE ¼"-28 Taper Thread Fittings are used on most cars and trucks, as well as many industrial machines. It is recommended that SAE-LT taper threads be assembled into ¼"-28 UNF, Class 3B, straight threaded holes having a modified maximum minor diameter of 0.2151", to provide 75% minimum thread height.
Variations (8)

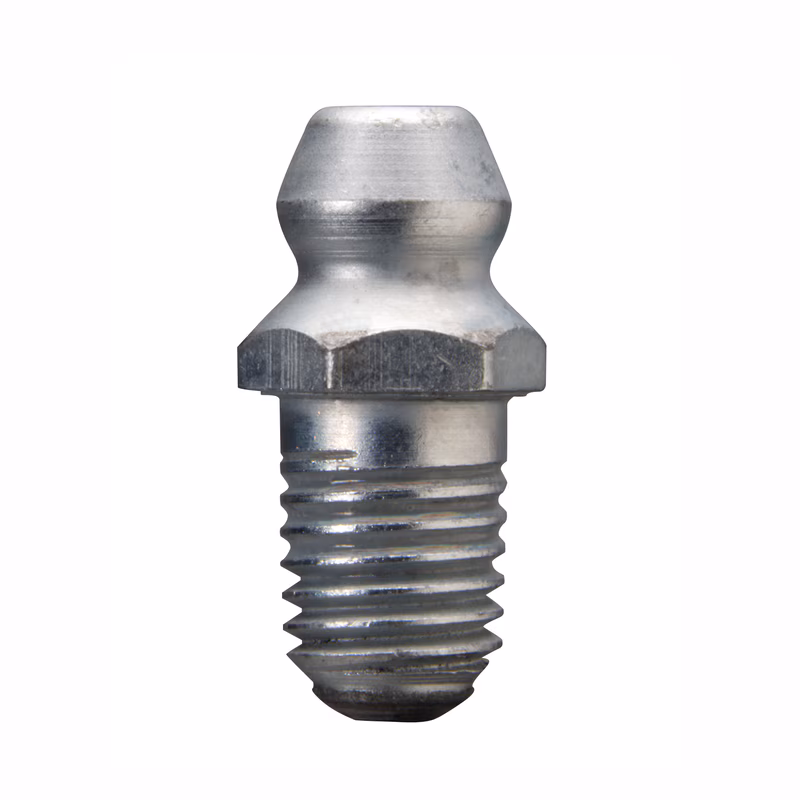

1641-B
| Type | Straight |
|---|---|
| Hex Size | 5/16" |
| Overall Length | 35/64" |
| Shank Length | 3/16" |
1652-B
| Type | Straight |
|---|---|
| Hex Size | 5/16" |
| Overall Length | 11/16" |
| Shank Length | 23/64" |

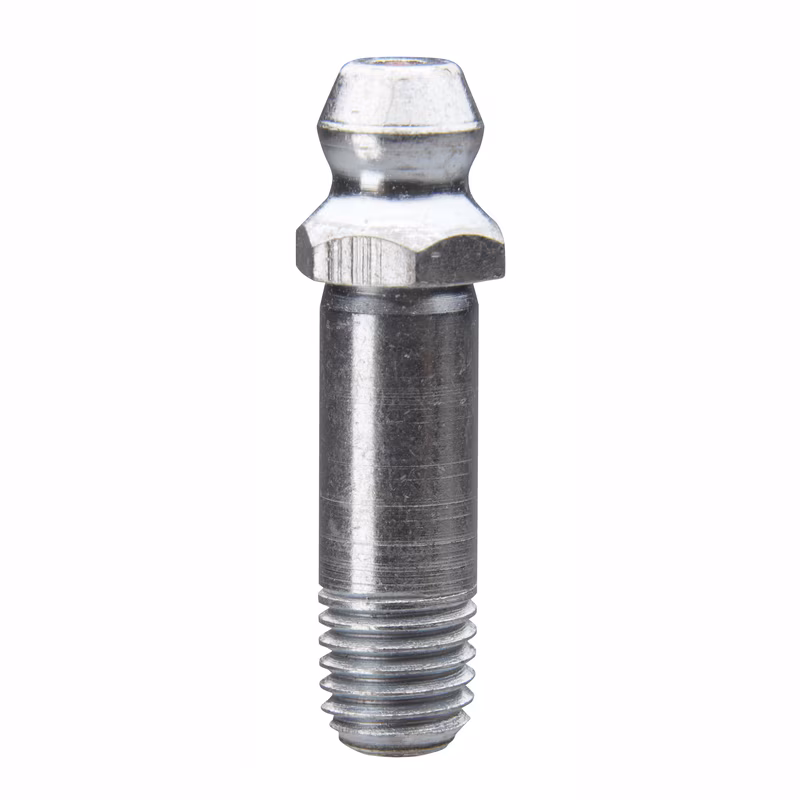

1680-B
| Type | Straight |
|---|---|
| Hex Size | 5/16" |
| Overall Length | 31/32" |
| Shank Length | 5/8" |
1698-B
| Type | Straight |
|---|---|
| Hex Size | 5/16" |
| Overall Length | 1-1/8" |
| Shank Length | 25/32" |

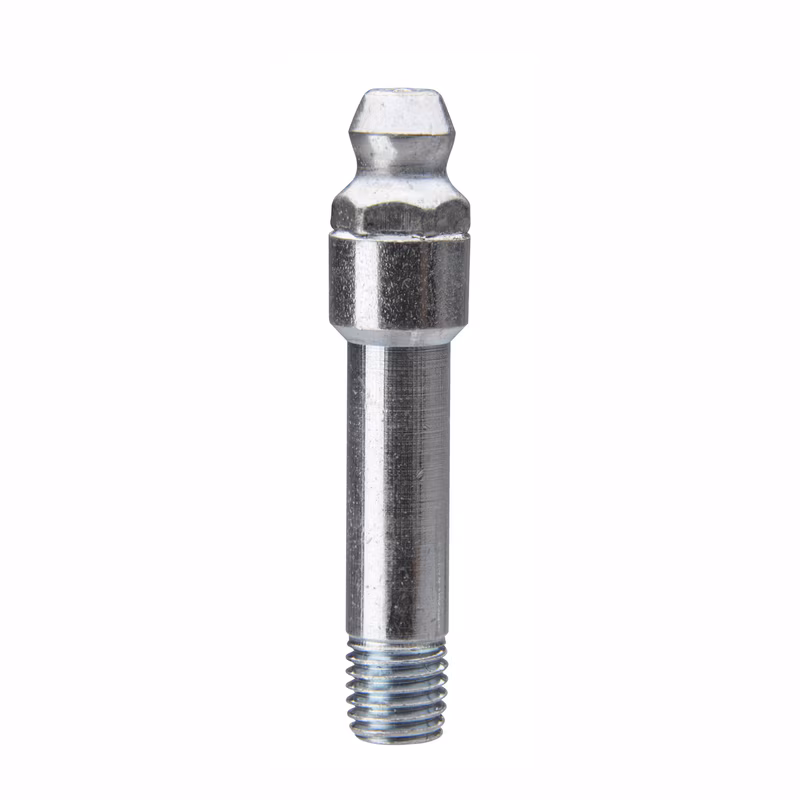

3014-B
| Type | Straight |
|---|---|
| Hex Size | 5/16" |
| Overall Length | 1-5/8" |
| Shank Length | 1" |

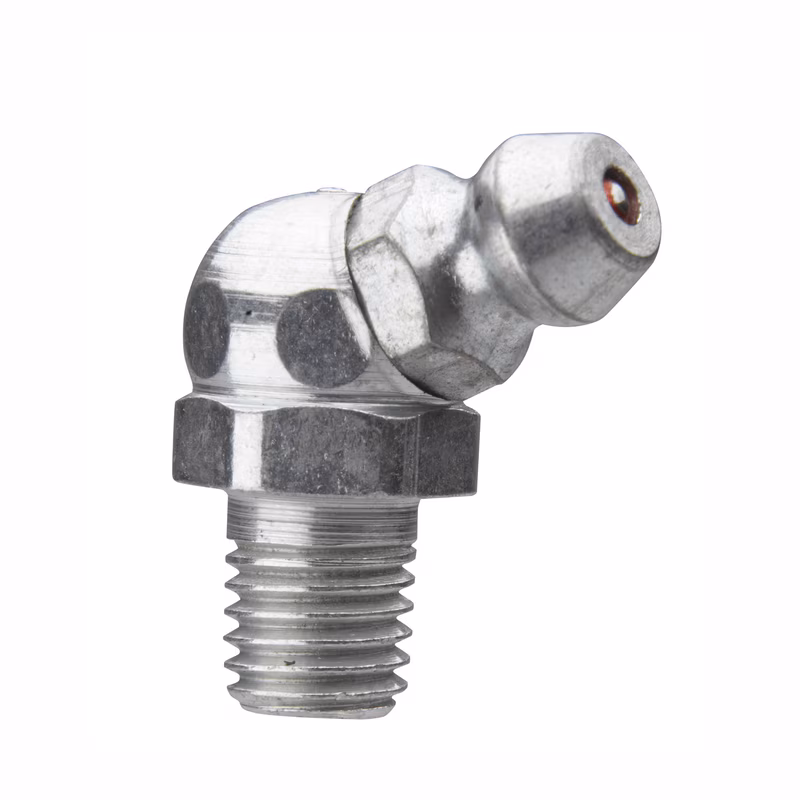

1637-B1
| Type | 45° |
|---|---|
| Hex Size | 3/8" |
| Overall Length | 13/16" |
| Shank Length | 13/64" |
3010-B1
| Type | 65° |
|---|---|
| Hex Size | 3/8" |
| Overall Length | 25/32" |
| Shank Length | 19/64" |
1911-B1
| Type | 90° |
|---|---|
| Hex Size | 3/8" |
| Overall Length | 3/4" |
| Shank Length | 13/64" |
Specifications
| Features | Meets SAE J534 (Aug 2015) requirements: 144 hour salt spray base metal protection 96 hour salt spray coating protection 34.5 MPa (5,000 psi) blowout protection; 144 hour salt spray base metal protection; 96 hour salt spray coating protection; 34.5 MPa (5,000 psi) blowout protection; Dirt excluding check ball; Trivalent zinc plating; RoHS compliant |
|---|---|
| Types | Straight; 45°; 65°; 90° |
