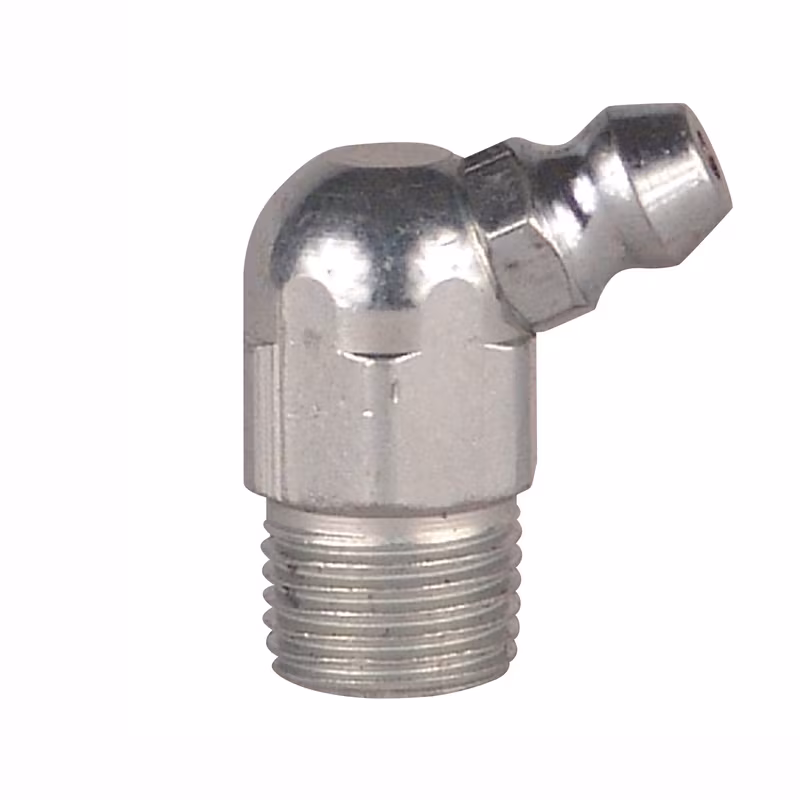

1/8” PTF Fittings

Scraped SKU: skf-ptf-fittings 2026-06-13 07:52:24

Attributes

Alemite Seriesfittings

Description

Alemite 1/8" PTF Fittings are used on industrial machines and heavy equipment.

Variations (19)

1644-B

TypeStraight
Hex Size7/16"
Overall Length9/16"
Shank Length15/64"

1610-BL

TypeStraight
Hex Size7/16"
Overall Length11/16"
Shank Length19/64"

1607-B

TypeStraight
Hex Size7/16"
Overall Length1-1/4"
Shank Length25/32"

1669-B

TypeStraight
Hex Size7/16"
Overall Length1-3/4"
Shank Length1-17/64"

1684-B

TypeStraight
Hex Size3/8"
Overall Length2-5/8"
Shank Length2-3/16"

1618-B

TypeStraight
Hex Size1/2"
Overall Length1"
Shank Length9/32"

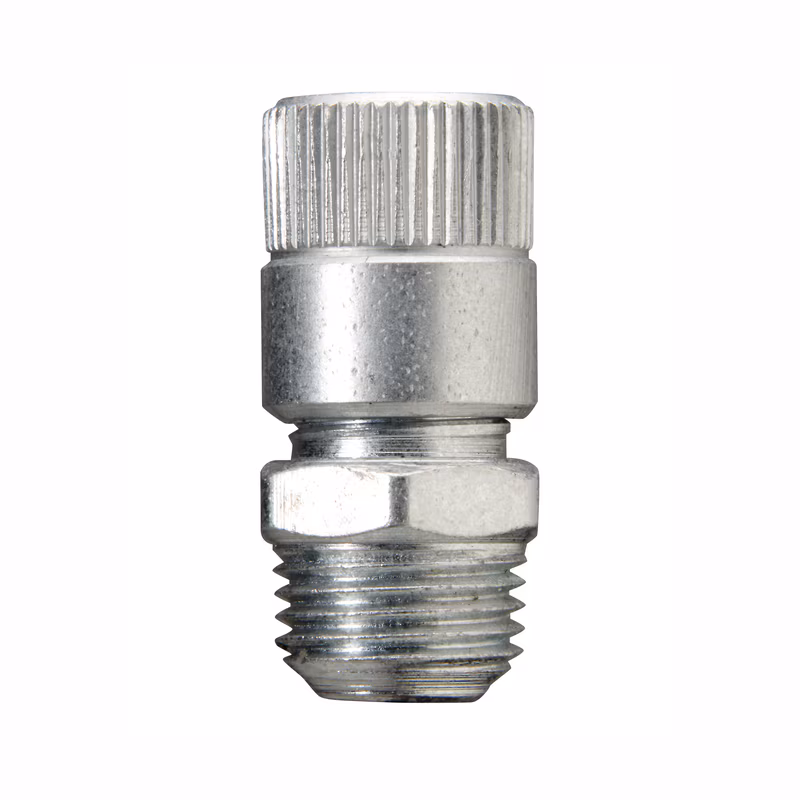

1958

TypeStraight
Hex Size7/16"
Overall Length31/32"
Shank Length1/4"

1611-B

Type30°
Hex Size7/16"
Overall Length29/32"
Shank Length19/64"

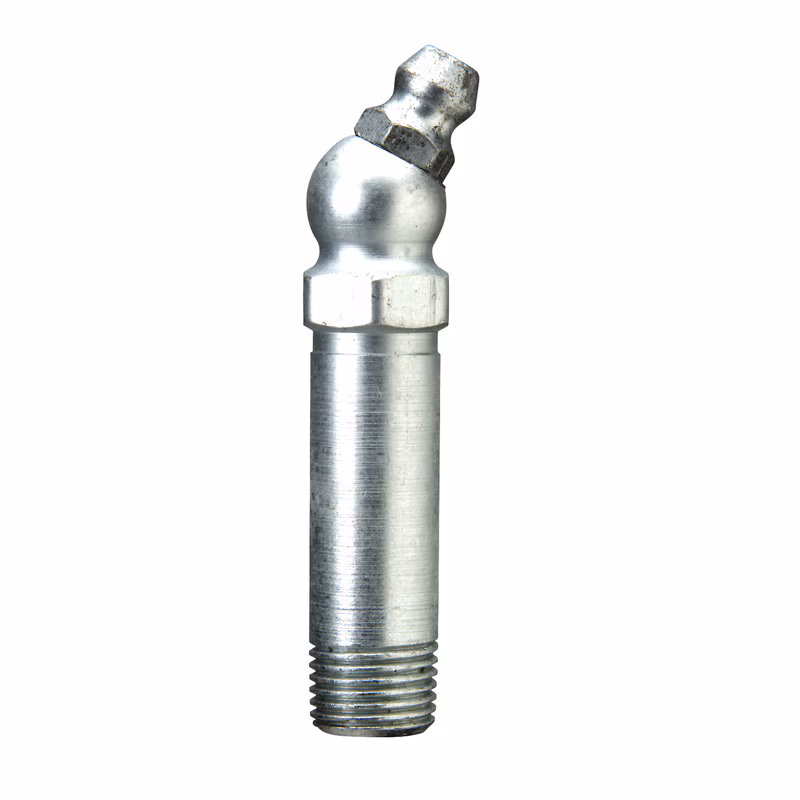

1638-B

Type30°
Hex Size7/16"
Overall Length2-3/32"
Shank Length1-1/4"

1688-B

Type45°
Hex Size7/16"
Overall Length57/64"
Shank Length19/64"

1620-B

Type45°
Hex Size7/16"
Overall Length1-1/8"
Shank Length13/32"

1612-B

Type65°
Hex Size7/16"
Overall Length27/32"
Shank Length19/64"

1623-B

Type65°
Hex Size7/16"
Overall Length1-7/32"
Shank Length9/16"

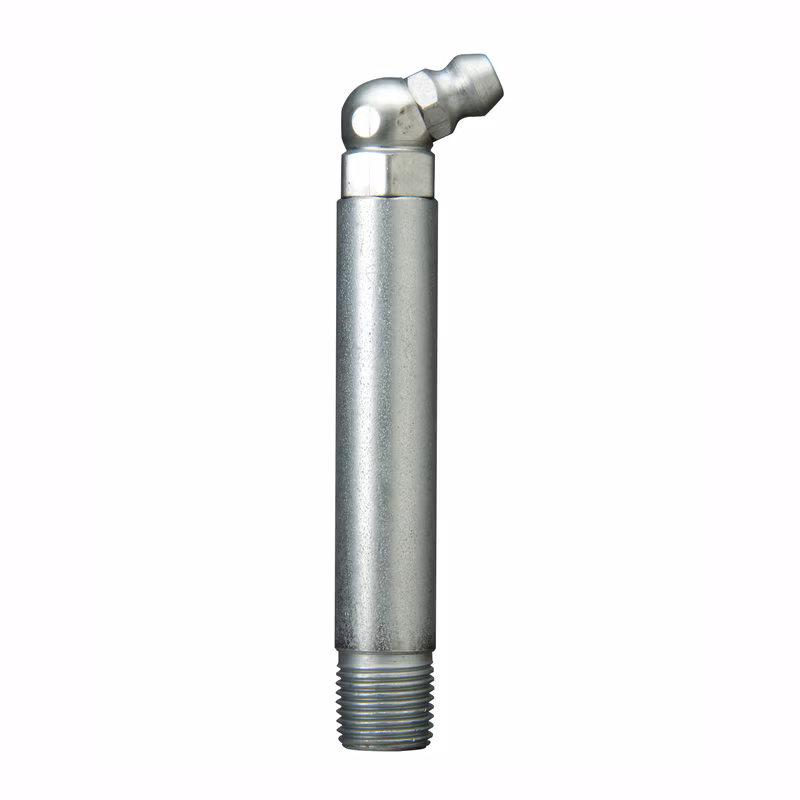

1649-B

Type65°
Hex Size3/8"
Overall Length2-3/4"
Shank Length2-1/4"

1613-B

Type90°
Hex Size7/16"
Overall Length27/32"
Shank Length19/64"

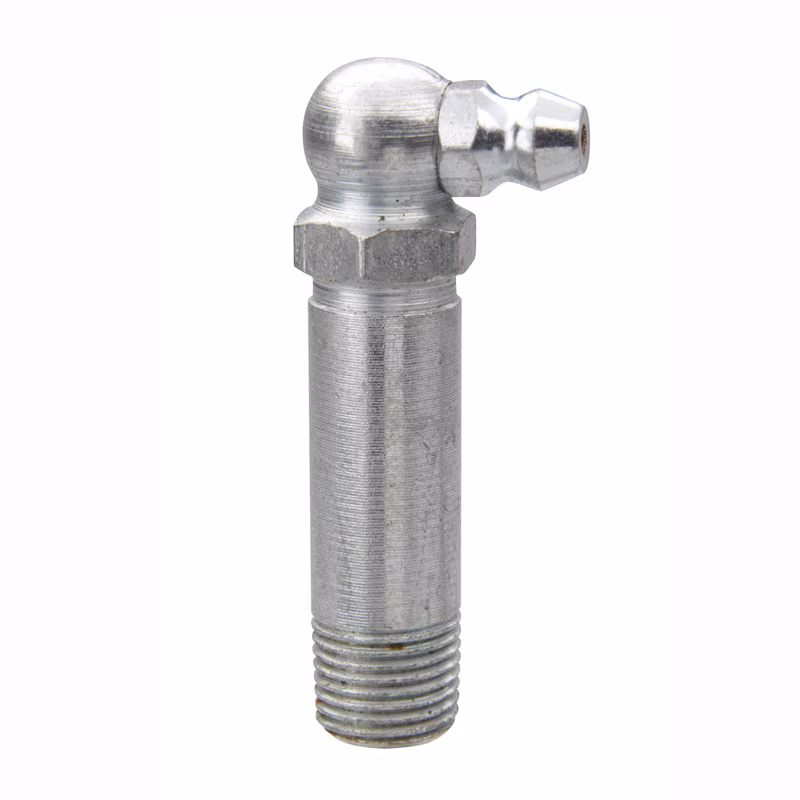

1606-B

Type90°
Hex Size7/16"
Overall Length1-13/16"
Shank Length1-1/4"

369599

TypeStraight
Hex Size7/16"
Overall Length2-5/8"
Shank Length7/32"

369608

Type65°
Hex Size7/16"
Overall Length29/32"
Shank Length9/32"

369574

TypeDouble 70°
Hex Size1/2"
Overall Length27/32"
Shank Length7/32"

Specifications

Features
Meets SAE J534 (Aug 2015) requirements: 144 hour salt spray base metal protection 96 hour salt spray coating protection 34.5 MPa (5,000 psi) blowout protection; 144 hour salt spray base metal protection; 96 hour salt spray coating protection; 34.5 MPa (5,000 psi) blowout protection; Dirt excluding check ball; Trivalent zinc plating; RoHS compliant; 1958 has specialty cap providing a second seal for dust proof applications
TypesStraight; 30°; 45°; 65°; 90°; Double 70°
