Attributes
| Alemite Series | fittings |
|---|
Description
Alemite ¼" PTF Fittings are widely used for larger bearings on farm machinery and heavy industrial equipment. Recommended for heavy lubricants in cold weather.
Variations (2)
1627-B
| Type | Straight |
|---|---|
| Hex Size | 9/16" |
| Overall Length | 7/8" |
| Shank Length | 27/64" |

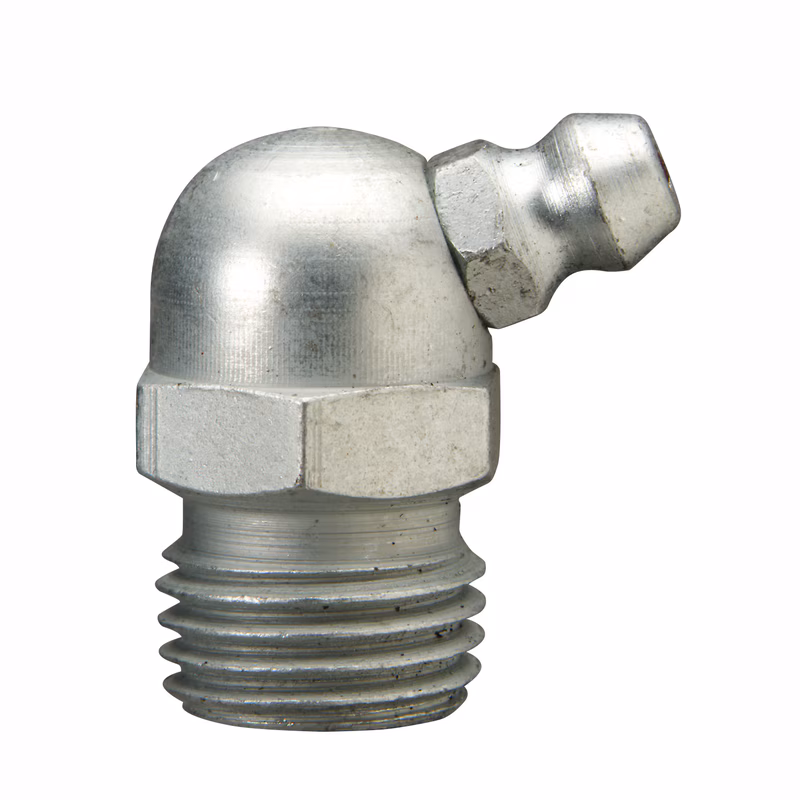

1629-B
| Type | 67.5° |
|---|---|
| Hex Size | 9/16" |
| Overall Length | 31/32" |
| Shank Length | 11/32" |
Specifications
| Features | Meets SAE J534 (Aug 2015) requirements: 144 hour salt spray base metal protection 96 hour salt spray coating protection 34.5 MPa (5,000 psi) blowout protection; 144 hour salt spray base metal protection; 96 hour salt spray coating protection; 34.5 MPa (5,000 psi) blowout protection; Dirt excluding check ball; Trivalent zinc plating; RoHS compliant; Dry seal eliminates need for sealant |
|---|---|
| Types | Straight; 67.5° |
