Attributes
| Alemite Series | fittings |
|---|

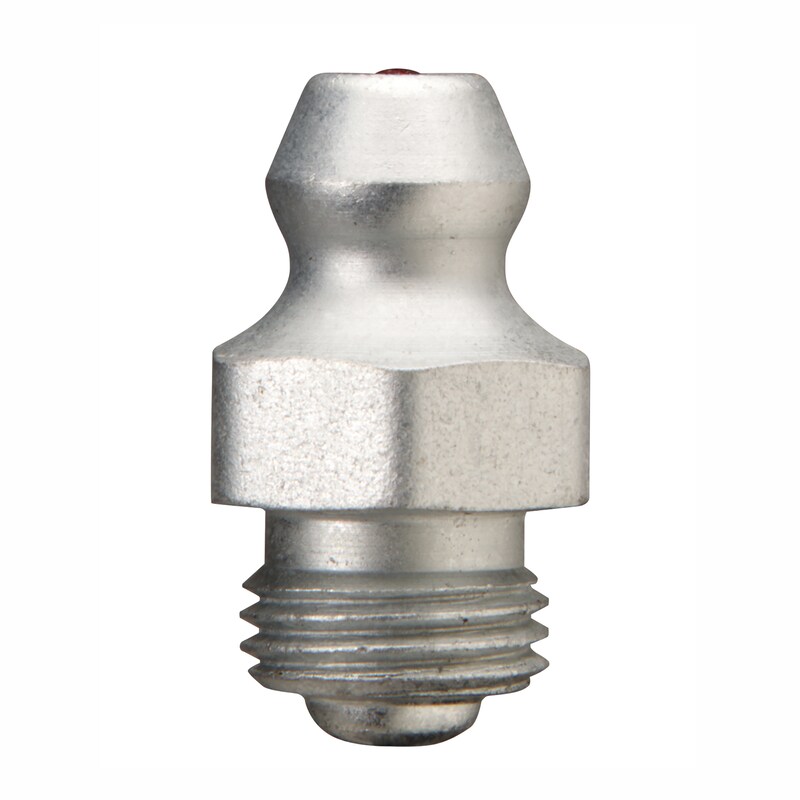

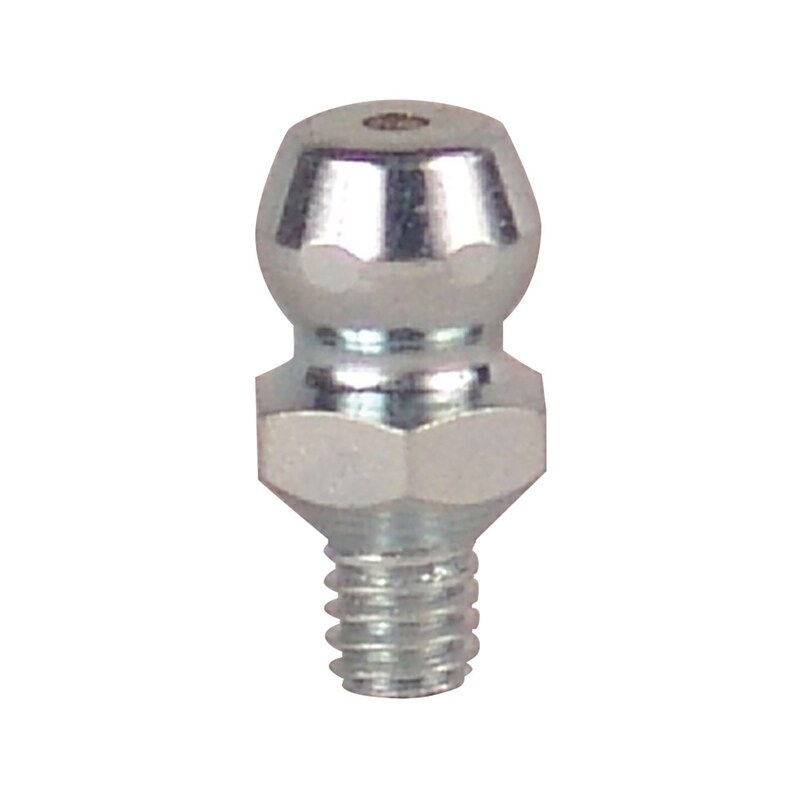

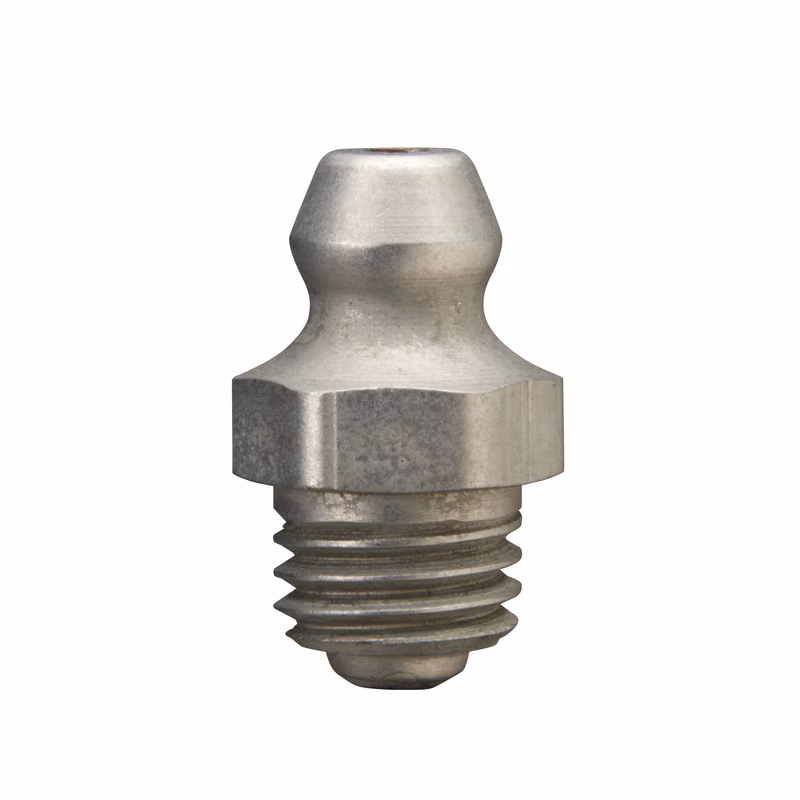

Description
Alemite offers special threads and sizes for special lubrication applications. All have high pressure ball check unless noted.
Variations (6)
3016
| Type | 10-32 UNF-2A |
|---|---|
| Hex Size | Straight |
| Overall Length | 1/4" |
| Shank Length | 1/2" |
| Spec 1 | 1/8" |
3018
| Type | 6-40 UNF-2A |
|---|---|
| Hex Size | Straight |
| Overall Length | 1/4" |
| Shank Length | 1/2" |
| Spec 1 | 9/64" |
1711-B
| Type | 5/16"-24 UNF-2A |
|---|---|
| Hex Size | Straight |
| Overall Length | 3/8" |
| Shank Length | 21/32" |
| Spec 1 | 5/32" |
1631-B
| Type | 5/16"-32 UNEF-2A |
|---|---|
| Hex Size | Straight |
| Overall Length | 3/8" |
| Shank Length | 21/32" |
| Spec 1 | 15/64" |

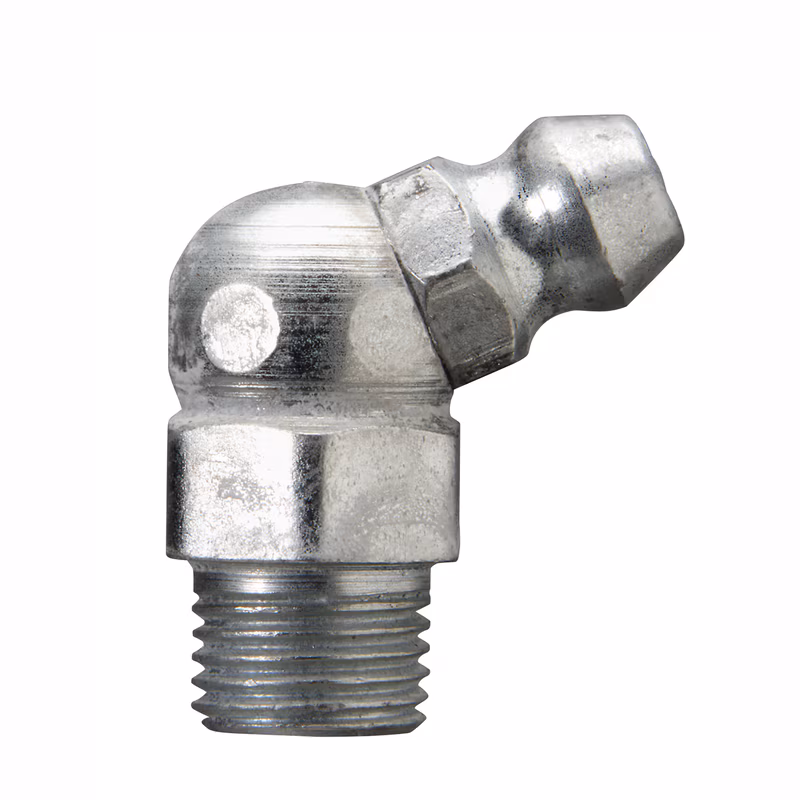

1648-B1
| Type | 5/16"-32 UNEF-2A |
|---|---|
| Hex Size | 65° |
| Overall Length | 3/8" |
| Shank Length | 51/64" |
| Spec 1 | 7/32" |
369616
| Type | 10-32 UNF-2A |
|---|---|
| Hex Size | Straight |
| Overall Length | 1/4" |
| Shank Length | 15/32" |
| Spec 1 | 5/64" |
Specifications
| Features | Exceeds 72 hour salt spray test; Dirt excluding check ball; Trivalent clear zinc plating; RoHS compliant |
|---|
