Pin Type Fittings

Scraped SKU: skf-pin-type 2026-06-13 07:52:24

Attributes

Alemite Seriesfittings

Description

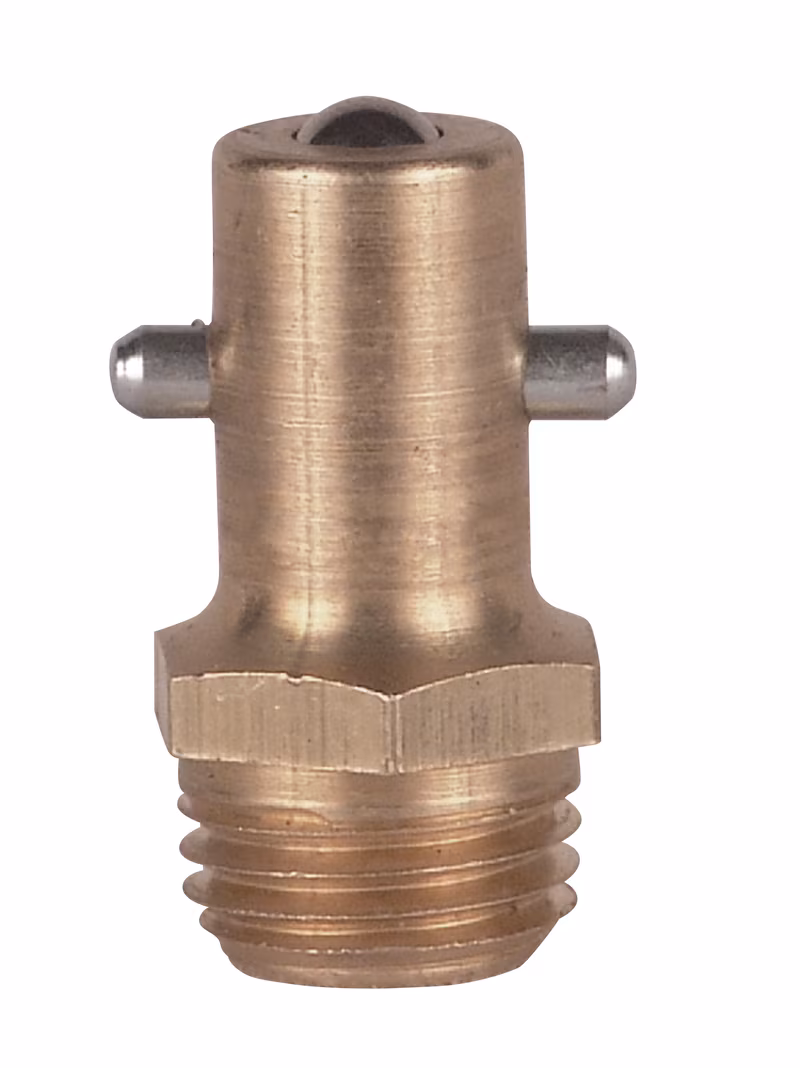

Alemite Pin Type Fittings have positive locking action on coupler and cross pin, providing a leakproof connection.

Variations (3)

A336

Type1/8" PTF
Hex SizeStraight
Overall Length7/16"
Shank Length31/32"
Spec 117/64"

A359

Type1/4" NPTF
Hex SizeStraight
Overall Length17/32"
Shank Length1-3/32"
Spec 15/16"

M336

Type1/8" PTF
Hex SizeStraight
Overall Length7/16"
Shank Length31/32"
Spec 117/64"

Specifications

FeaturesExceeds 72 hour salt spray test; Dirt excluding check ball; Trivalent clear zinc plating; RoHS compliant
RECOMMENDED ACCESSORIESPin Type Couplers (VB942, 50491, 51185)
